Suzuki Vinson LT-A500F User Manual

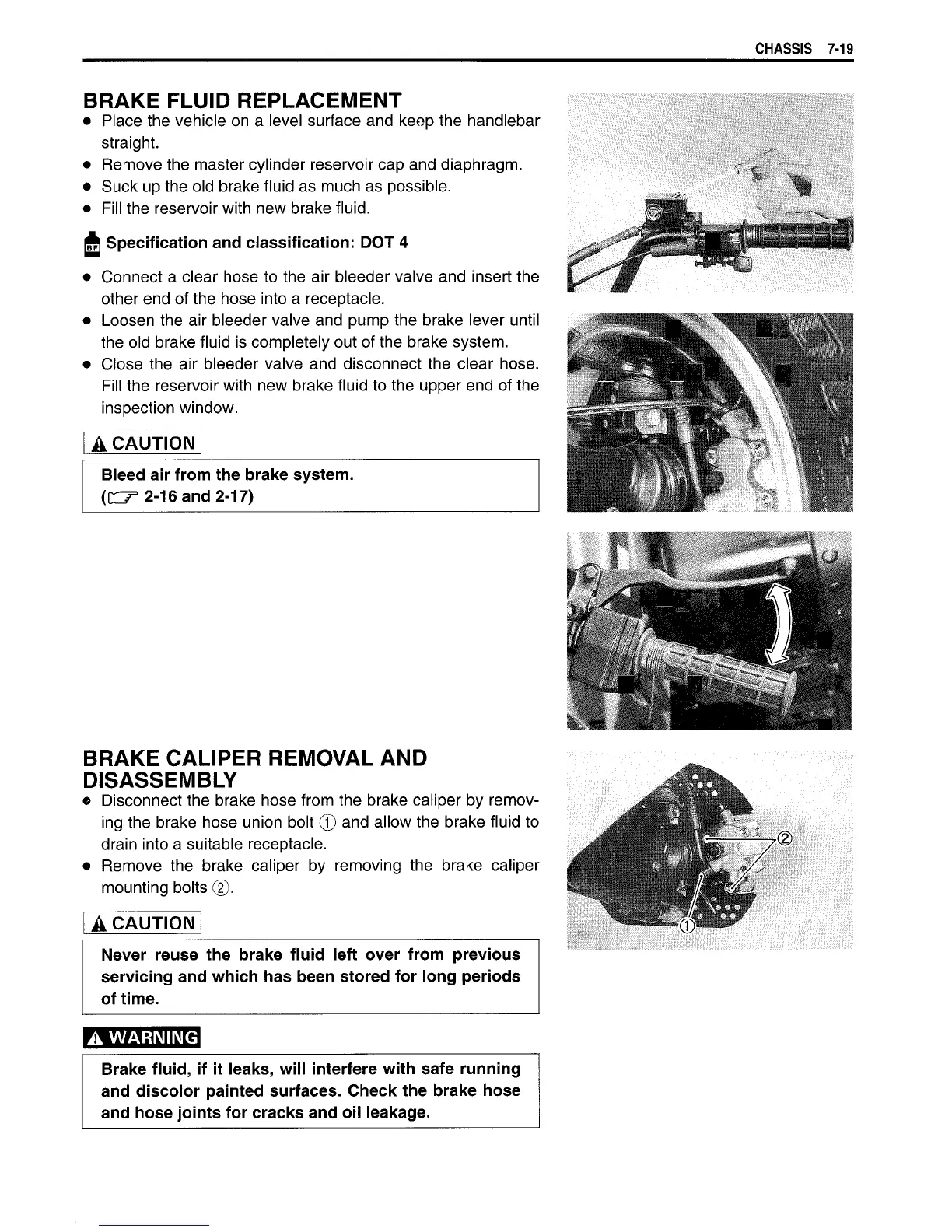

CHASSIS 7-19
BRAKE FLUID REPLACEMENT
• Place the vehicle on a level surface and keep the handlebar
straight.
• Remove the master cylinder reservoir cap and diaphragm.
• Suck up the old brake fluid as much as possible.
• Fill the reservoir with new brake fluid.
Specification and classification: DOT 4
• Connect a clear hose to the air bleeder valve and insert the
other end of the hose into a receptacle.
• Loosen the air bleeder valve and pump the brake lever until
the old brake fluid is completely out of the brake system.
• Close the air bleeder valve and disconnect the clear hose.
Fill the reservoir with new brake fluid to the upper end of the
inspection window.
A CAUTIOINT
Bleed air from the brake system.
2-16 and 2-17)
BRAKE CALIPER REMOVAL AND
DISASSEMBLY
© Disconnect the brake hose from the brake caliper by remov-
ing the brake hose union bolt © and allow the brake fluid to
drain into a suitable receptacle.
• Remove the brake caliper by removing the brake caliper
mounting bolts (2).
A CAUTIOINT
Never reuse the brake fluid left over from previous
servicing and which has been stored for long periods
of time.
A WARNING
Brake fluid, if it leaks, will interfere with safe running
and discolor painted surfaces. Check the brake hose
and hose joints for cracks and oil leakage.
SB
