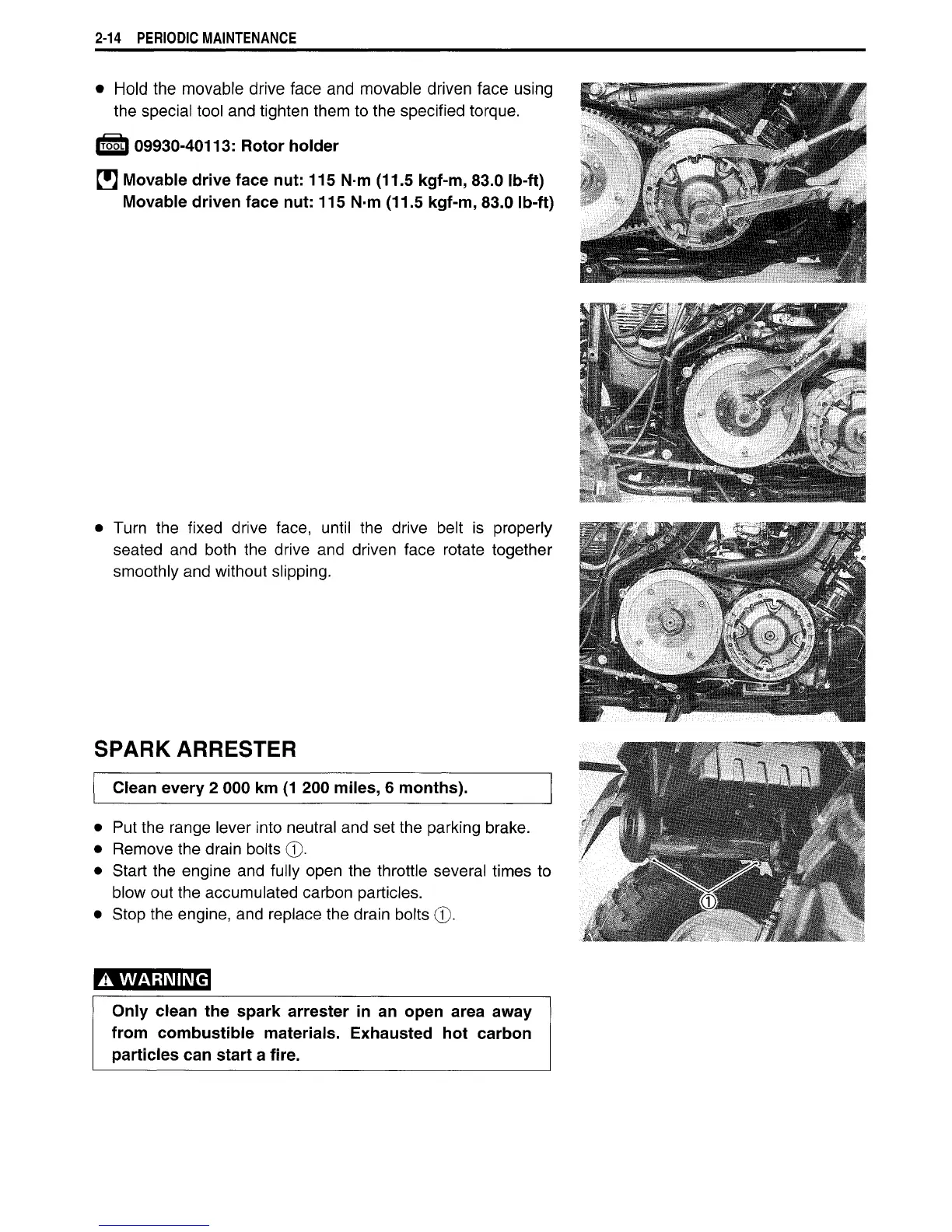

2-14 PERIODIC MAINTENANCE
• Hold the movable drive face and movable driven face using
the special tool and tighten them to the specified torque.
IT55L1 09930-40113: Rotor holder
H Movable drive face nut: 115 N-m (11.5 kgf-m, 83.0 Ib-ft)
Movable driven face nut: 115 N-m (11.5 kgf-m, 83.0 Ib-ft)
• Turn the fixed drive face, until the drive belt is properly
seated and both the drive and driven face rotate together
smoothly and without slipping.
Hr
SPARK ARRESTER
Clean every 2 000 km (1 200 miles, 6 months).
Put the range lever into neutral and set the parking brake.
Remove the drain bolts ©.
Start the engine and fully open the throttle several times to
blow out the accumulated carbon particles.
Stop the engine, and replace the drain bolts ©.
w
^^^^^^^^^^^^^
A WARNING
Only clean the spark arrester in an open area away
from combustible materials. Exhausted hot carbon
particles can start a fire.
