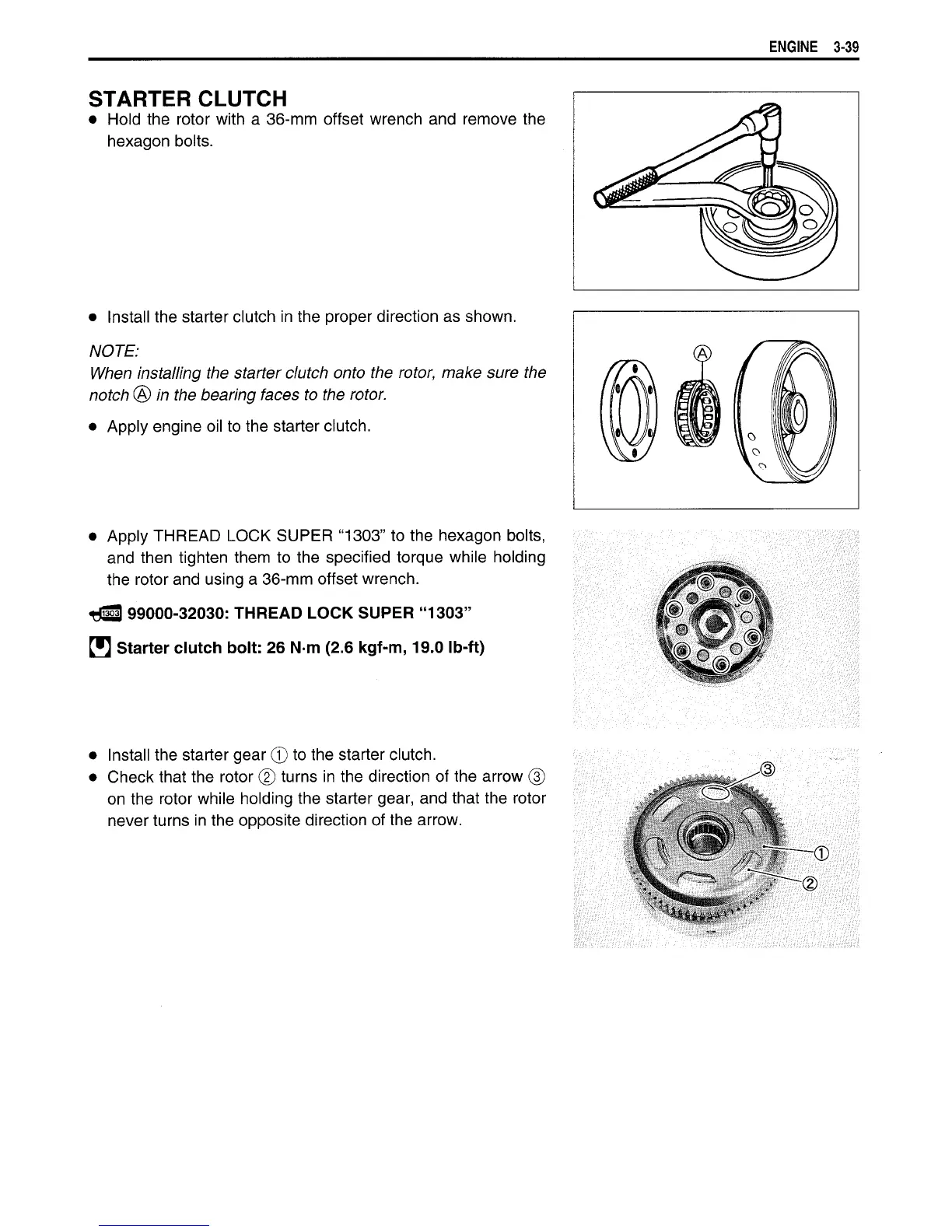

STARTER
CLUTCH
•
Hold the rotor with
a
36-mm
offset wrench
and
remove the
hexagon bolts.
•
Install the starter clutch in the proper direction
as
shown.
NOTE:
When installing the starter clutch onto the
rotor,
make sure the
notch ® in the bearing
faces
to the
rotor.
•
Apply engine oil to the starter clutch.
•
Apply
THREAD
LOCK
SUPER
"1303" to the hexagon bolts,
and then tighten them
to
the specified torque while holding
the rotor and using
a
36-mm
offset wrench.
tti3
99000-32030:
THREAD
LOCK
SUPER
"1303"
H Starter clutch
bolt:
26 N m (2.6 kgf-m, 19.0
Ib-ft)
•
Install the starter gear
©
to the starter clutch.
•
Check
that the rotor
©
turns in the direction
of
the arrow
®
on the rotor while holding the starter
gear,
and that the rotor
never turns in the opposite direction
of
the arrow.
