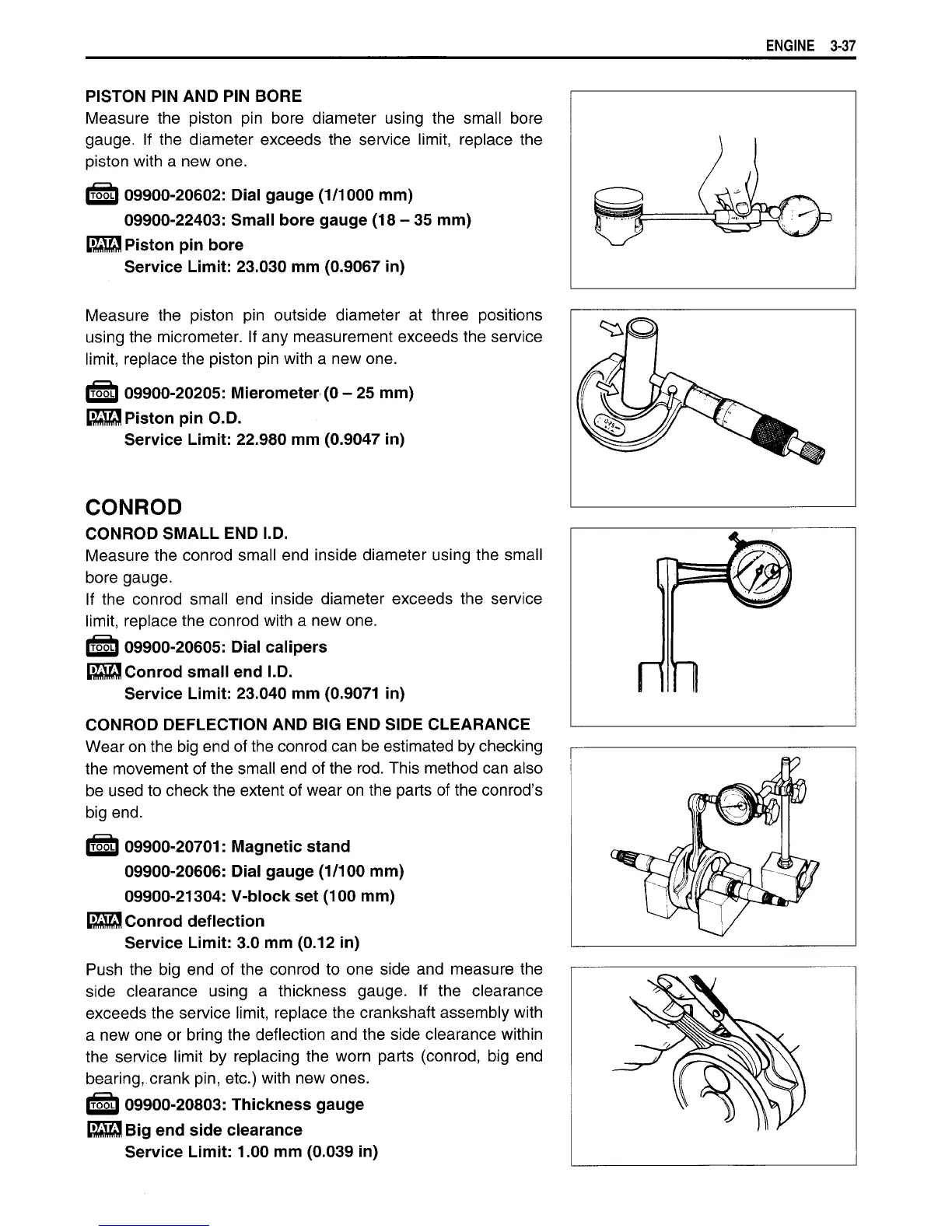

PISTON PIN AND PIN BORE
Measure
the
piston
pin
bore diameter using
the
small bore
gauge.
If
the
diameter exceeds
the
service
limit,
replace
the
piston
with
a
new one.
IT55LI
09900-20602:
Dial gauge
(1/1000
mm)
09900-22403:
Small
bore gauge
(18-35
mm)
Piston
pin
bore
Service
Limit:
23.030
mm
(0.9067
in)
Measure
the
piston
pin
outside diameter
at
three positions
using the micrometer.
If any
measurement exceeds the service
limit,
replace the piston pin
with
a
new one.
(^) 09900-20205:
Micrometer (0 -
25
mm)
[ffiffiS
Piston pin O.D.
Service
Limit:
22.980
mm
(0.9047
in)
CONROD
CONROD
SMALL END
I.D.
Measure
the conrod small
end
inside diameter using the small
bore
gauge.
If
the
conrod small
end
inside diameter exceeds
the
service
limit,
replace the conrod
with
a
new one.
(TOSL]
09900-20605:
Dial
calipers
Conrod
small end
I.D.
Service
Limit:
23.040
mm
(0.9071
in)
CONROD
DEFLECTION AND BIG END SIDE CLEARANCE
Wear
on the big end
of
the conrod can
be
estimated
by
checking
the
movement
of
the small end
of
the rod. This method can also
be
used
to check the extent
of
wear on the parts
of
the conrod's
big
end.
IT55LI
09900-20701:
Magnetic
stand
09900-20606:
Dial gauge
(1/100
mm)
09900-21304:
V-block
set
(100
mm)
IMfS
Conrod
deflection
Service
Limit:
3.0 mm (0.12
in)
Push
the big end of the
conrod
to one
side
and
measure
the
side clearance using
a
thickness
gauge.
If
the
clearance
exceeds the service
limit,
replace the crankshaft assembly
with
a new
one or
bring the deflection
and
the side clearance
within
the
service
limit
by
replacing
the
worn parts (conrod,
big end
bearing, crank pin, etc.)
with
new ones.
09900-20803:
Thickness
gauge
Effll
Big end side clearance
Service
Limit:
1.00
mm
(0.039
in)
