Suzuki Vinson LT-A500F User Manual

10-14 LT-A500FK1 ('01-MODEL)

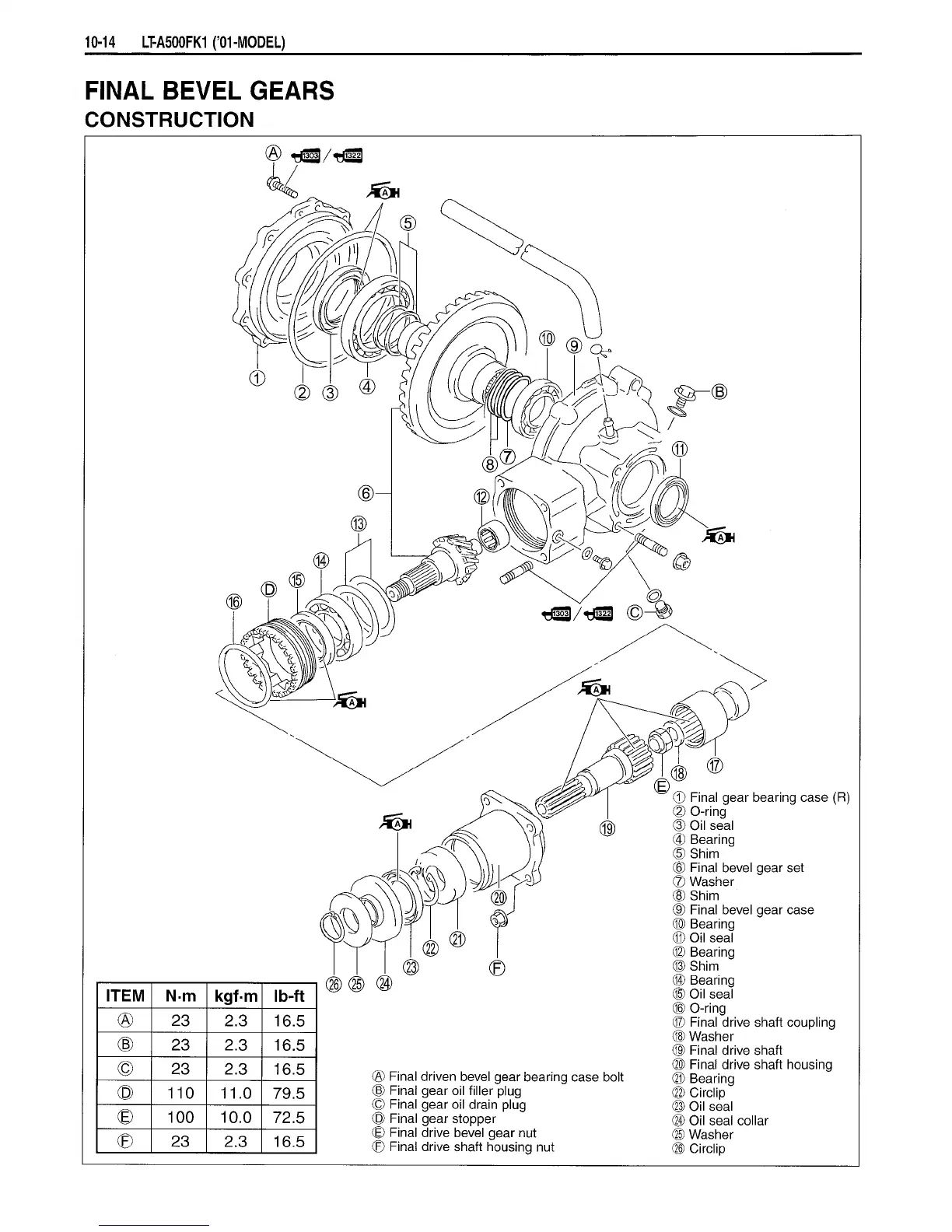

FINAL BEVEL GEARS
CONSTRUCTION
(§) «-|T303| / ^4l322|
ITEM N-m
kgf-m Ib-ft
®
23 2.3
16.5
®
23 2.3 16.5
©
23
2.3 16.5
®
110 11.0
79.5
©
100 10.0
72.5
23
2.3 16.5
® Final driven bevel gear bearing case bolt
® Final gear oil filler plug
© Final gear oil drain plug
© Final gear stopper
© Final drive bevel gear nut
© Final drive shaft housing nut
Final gear bearing case (R)
O-ring
Oil seal
Bearing
© Shim
Final bevel gear set
® Washer
Shim
Final bevel gear case
Bearing
Oil seal
Bearing
Shim
Bearing
Oil seal
O-ring
Final drive shaft coupling
Washer
Final drive shaft
Final drive shaft housing
Bearing
Circlip
Oil seal
Oil seal collar
Washer
Circlip
