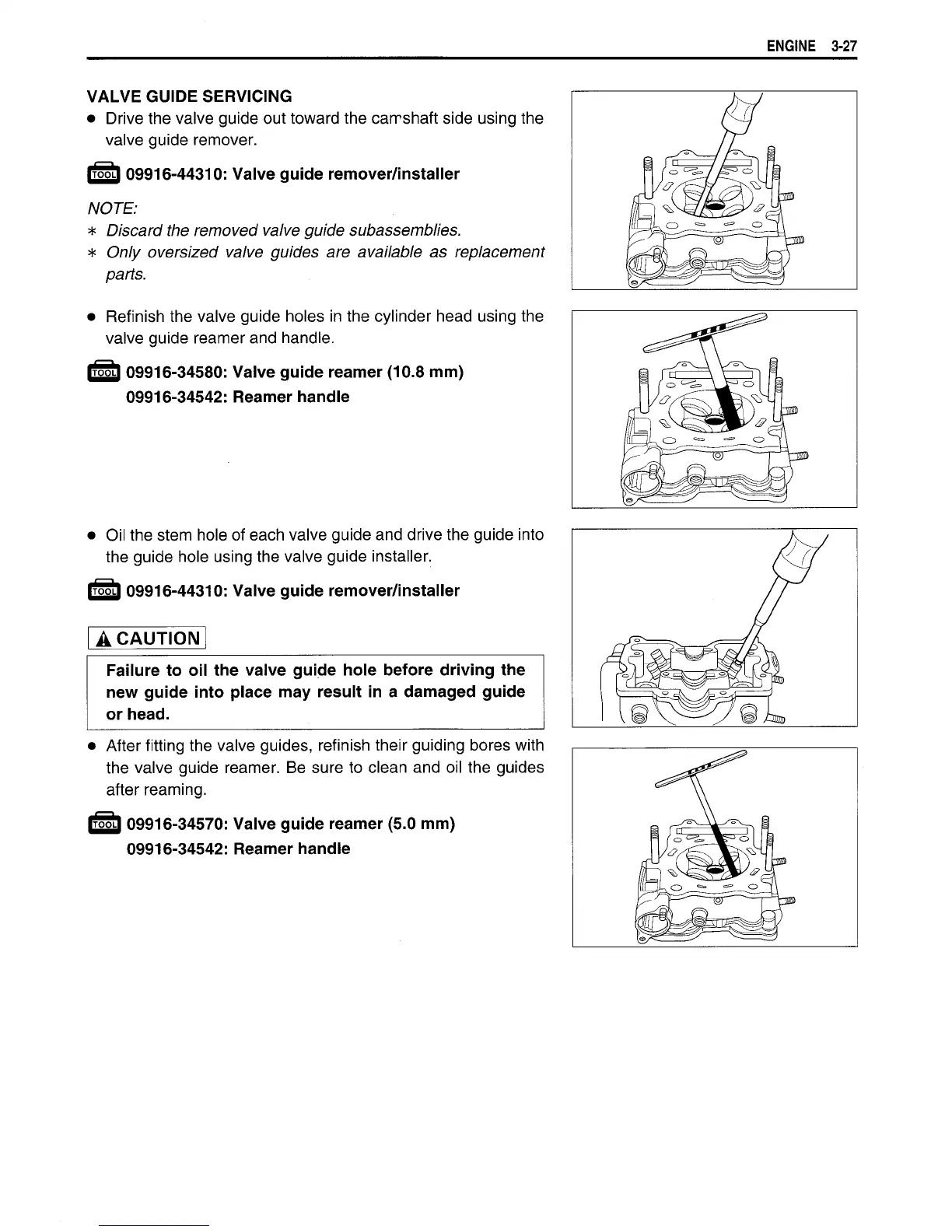

VALVE
GUIDE SERVICING
•
Drive the valve guide out toward the camshaft side using the
valve guide remover.
(T||)
09916-44310:
Valve guide remover/installer
NOTE:
* Discard the removed valve guide
subassemblies.
* Only
oversized
valve guides are available as replacement
parts.
•
Refinish the valve guide holes in the cylinder
head
using the
valve guide reamer and handle.
(r^J
09916-34580:
Valve guide reamer (10.8 mm)
09916-34542: Reamer handle
•
Oil the stem hole of each valve guide and drive the guide
into
the
guide hole using the valve guide
installer.
(T^H]
09916-44310:
Valve guide remover/installer
A CAUTION
Failure
to oil the valve guide hole before driving the
new guide
into
place may result in a damaged guide
or head.
•
After
fitting
the valve guides, refinish
their
guiding bores
with
the
valve guide reamer.
Be
sure to clean and oil the guides
after
reaming.
09916-34570:
Valve guide reamer (5.0 mm)
09916-34542: Reamer handle
