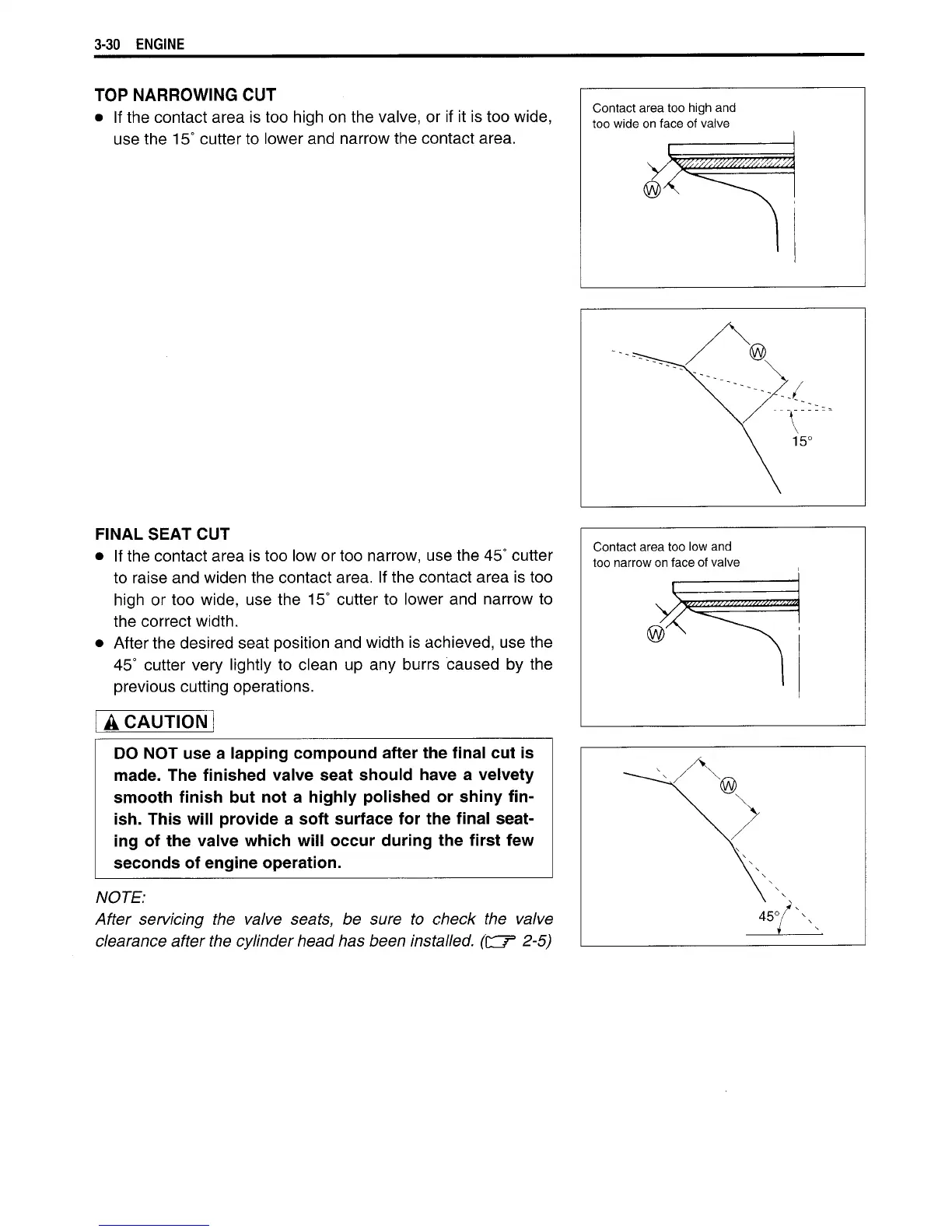

3-30 ENGINE
TOP NARROWING CUT
• If the contact area is too high on the valve, or if it is too wide,
use the 15° cutter to lower and narrow the contact area.
FINAL SEAT CUT
• If the contact area is too low or too narrow, use the 45° cutter
to raise and widen the contact area. If the contact area is too
high or too wide, use the 15° cutter to lower and narrow to
the correct width.
• After the desired seat position and width is achieved, use the
45° cutter very lightly to clean up any burrs caused by the
previous cutting operations.
A CAUTION
DO NOT use a lapping compound after the final cut is
made. The finished valve seat should have a velvety
smooth finish but not a highly polished or shiny fin-
ish. This will provide a soft surface for the final seat-
ing of the valve which will occur during the first few
seconds of engine operation.
NOTE:
After servicing the valve seats, be sure to check the valve
clearance after the cylinder head has been installed. (CZr* 2-5)
Contact area too high and
too wide on face of valve
I
©^
Contact area too low and
too narrow on face of valve
