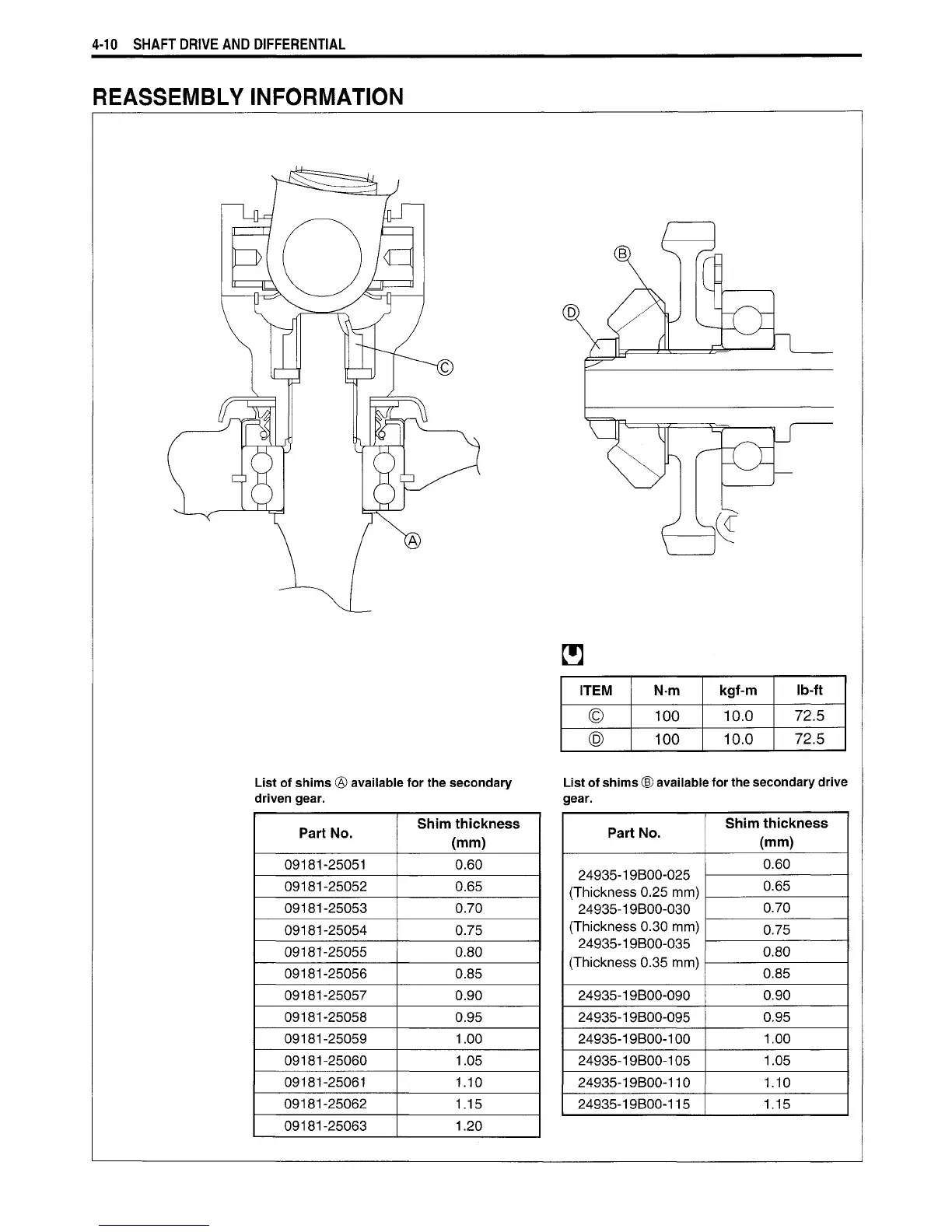

4-10 SHAFT DRIVE AND DIFFERENTIAL
REASSEMBLY INFORMATION
List of shims ® available for the secondary
driven gear.
Part No.
Shim thickness
(mm)
09181-25051 0.60
09181-25052
0.65
09181-25053
0.70
09181-25054
0.75
09181-25055
0.80
09181-25056 0.85
09181-25057
0.90
09181-25058
0.95
09181-25059 1.00
09181-25060 1.05
09181-25061
1.10
09181-25062
1.15
09181-25063
1.20
H
ITEM Nm
kgf-m Ib-ft
©
100 10.0 72.5
®
100 10.0 72.5
List of shims ® available for the secondary drive
gear.
Part No.
Shim thickness
(mm)
24935-19B00-025
(Thickness 0.25 mm)
24935-19B00-030
(Thickness 0.30 mm)
24935-19B00-035
(Thickness 0.35 mm)
0.60
24935-19B00-025
(Thickness 0.25 mm)
24935-19B00-030
(Thickness 0.30 mm)
24935-19B00-035
(Thickness 0.35 mm)
0.65
24935-19B00-025
(Thickness 0.25 mm)
24935-19B00-030
(Thickness 0.30 mm)
24935-19B00-035
(Thickness 0.35 mm)
0.70
24935-19B00-025
(Thickness 0.25 mm)
24935-19B00-030
(Thickness 0.30 mm)
24935-19B00-035
(Thickness 0.35 mm)
0.75
24935-19B00-025
(Thickness 0.25 mm)
24935-19B00-030
(Thickness 0.30 mm)
24935-19B00-035
(Thickness 0.35 mm)
0.80
24935-19B00-025
(Thickness 0.25 mm)
24935-19B00-030
(Thickness 0.30 mm)
24935-19B00-035
(Thickness 0.35 mm)
0.85
24935-19B00-090
0.90
24935-19B00-095
0.95
24935-19B00-100
1.00
24935-19B00-105
1.05
24935-19B00-110 1.10
24935-19B00-115
1.15
