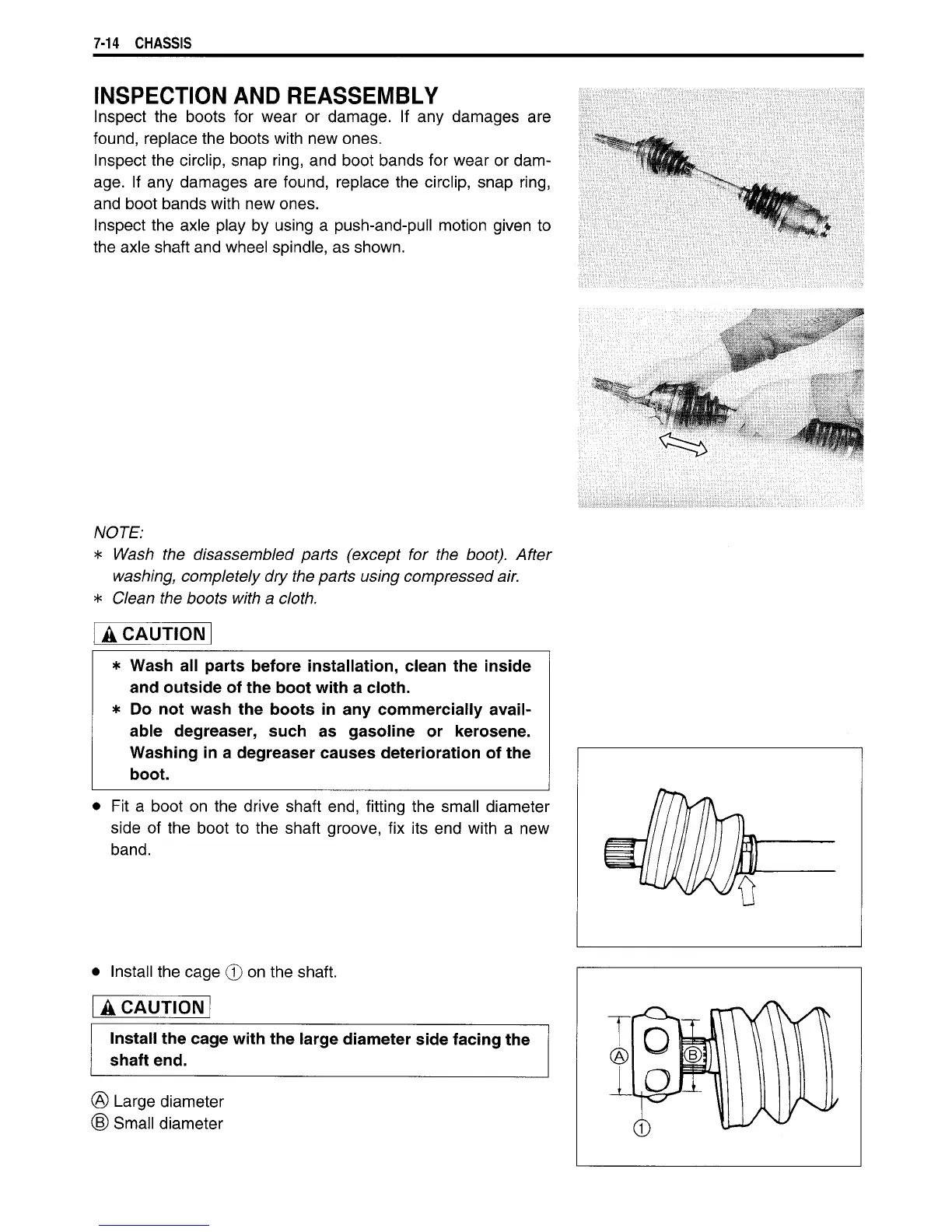

7-14 CHASSIS
INSPECTION AND
REASSEMBLY
Inspect
the
boots
for
wear
or
damage.
If any
damages
are
found, replace the boots
with
new ones.
Inspect the
circlip,
snap
ring,
and boot
bands
for wear
or
dam-
age.
If any
damages
are
found, replace the
circlip,
snap
ring,
and boot
bands
with
new ones.
Inspect the axle play
by
using
a
push-and-pull motion given
to
the
axle shaft and wheel spindle, as shown.
NOTE:
* Wash the disassembled parts (except for the boot). After
washing, completely dry the parts using compressed air.
* Clean the boots
with
a cloth.
A CAUTION
Wash all parts
before
installation, clean the inside
and outside of the
boot
with
a cloth.
Do not wash the boots in any commercially avail-
able degreaser, such as gasoline or kerosene.
Washing in a degreaser
causes
deterioration
of the
boot.
• Fit a
boot
on
the drive shaft end,
fitting
the small diameter
side
of
the boot
to
the shaft groove,
fix
its
end
with
a new
band.
Install
the cage
©
on the shaft.
A CAUTION
Install the cage
with
the large diameter side facing the
shaft end.
@
Large diameter
(D
Small diameter
