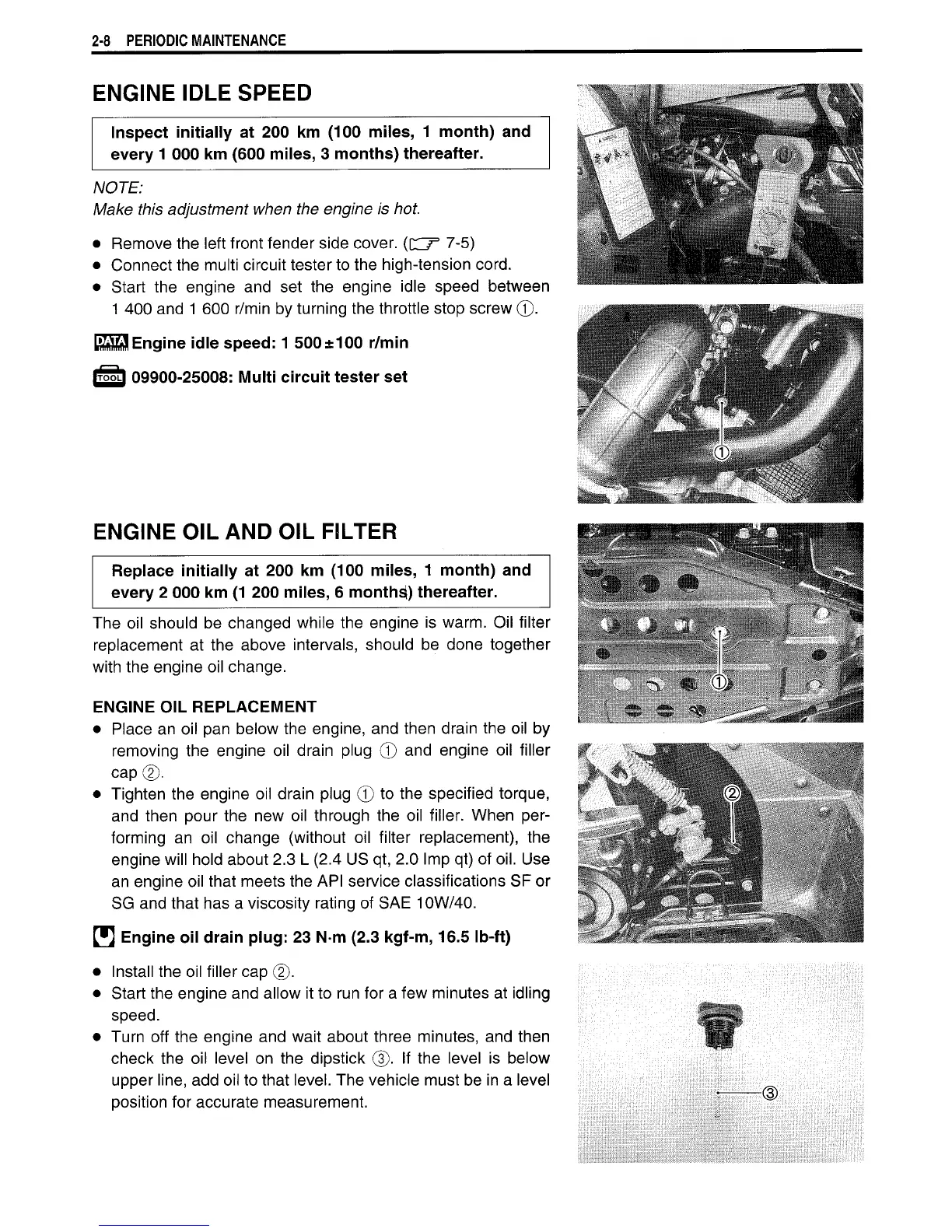

2-8 PERIODIC MAINTENANCE
ENGINE IDLE SPEED
Inspect initially at 200 km (100 miles, 1 month) and
every 1 000 km (600 miles, 3 months) thereafter.
NOTE:
Make this adjustment when the engine is hot.
• Remove the left front fender side cover. (C^
3
7-5)
• Connect the multi circuit tester to the high-tension cord.
• Start the engine and set the engine idle speed between
1 400 and 1 600 r/min by turning the throttle stop screw ©.
IBM Engine idle speed: 1 500 ±100 r/min
IT55LI 09900-25008: Multi circuit tester set
ENGINE OIL AND OIL FILTER
Replace initially at 200 km (100 miles, 1 month) and
every 2 000 km (1 200 miles, 6 month^) thereafter.
The oil should be changed while the engine is warm. Oil filter
replacement at the above intervals, should be done together
with the engine oil change.
ENGINE OIL REPLACEMENT
• Place an oil pan below the engine, and then drain the oil by
removing the engine oil drain plug © and engine oil filler
cap ©.
• Tighten the engine oil drain plug © to the specified torque,
and then pour the new oil through the oil filler. When per-
forming an oil change (without oil filter replacement), the
engine will hold about 2.3 L (2.4 US qt, 2.0 Imp qt) of oil. Use
an engine oil that meets the API service classifications SF or
SG and that has a viscosity rating of SAE 10W/40.
H Engine oil drain plug: 23 N m (2.3 kgf-m, 16.5 Ib-ft)
• Install the oil filler cap ©.
• Start the engine and allow it to run for a few minutes at idling
speed.
• Turn off the engine and wait about three minutes, and then
check the oil level on the dipstick ©. If the level is below
upper line, add oil to that level. The vehicle must be in a level
position for accurate measurement.
