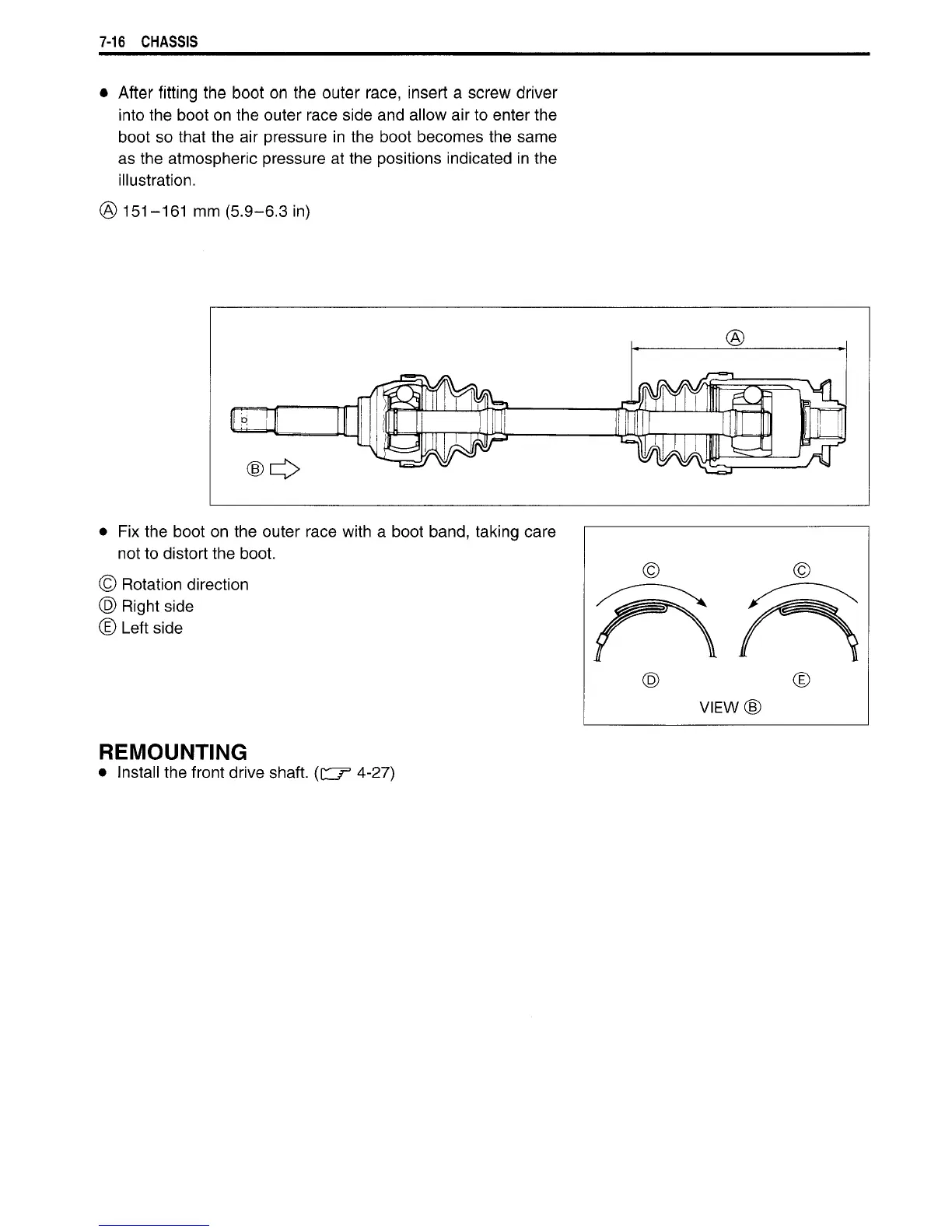

7-16 CHASSIS
• After fitting the boot on the outer race, insert a screw driver
into the boot on the outer race side and allow air to enter the
boot so that the air pressure in the boot becomes the same
as the atmospheric pressure at the positions indicated in the
illustration.
©151-161 mm (5.9-6.3 in)
®
• Fix the boot on the outer race with a boot band, taking care
not to distort the boot.
© Rotation direction
© Right side
© Left side
REMOUNTING
• Install the front drive shaft. (Cr
5
4-27)
