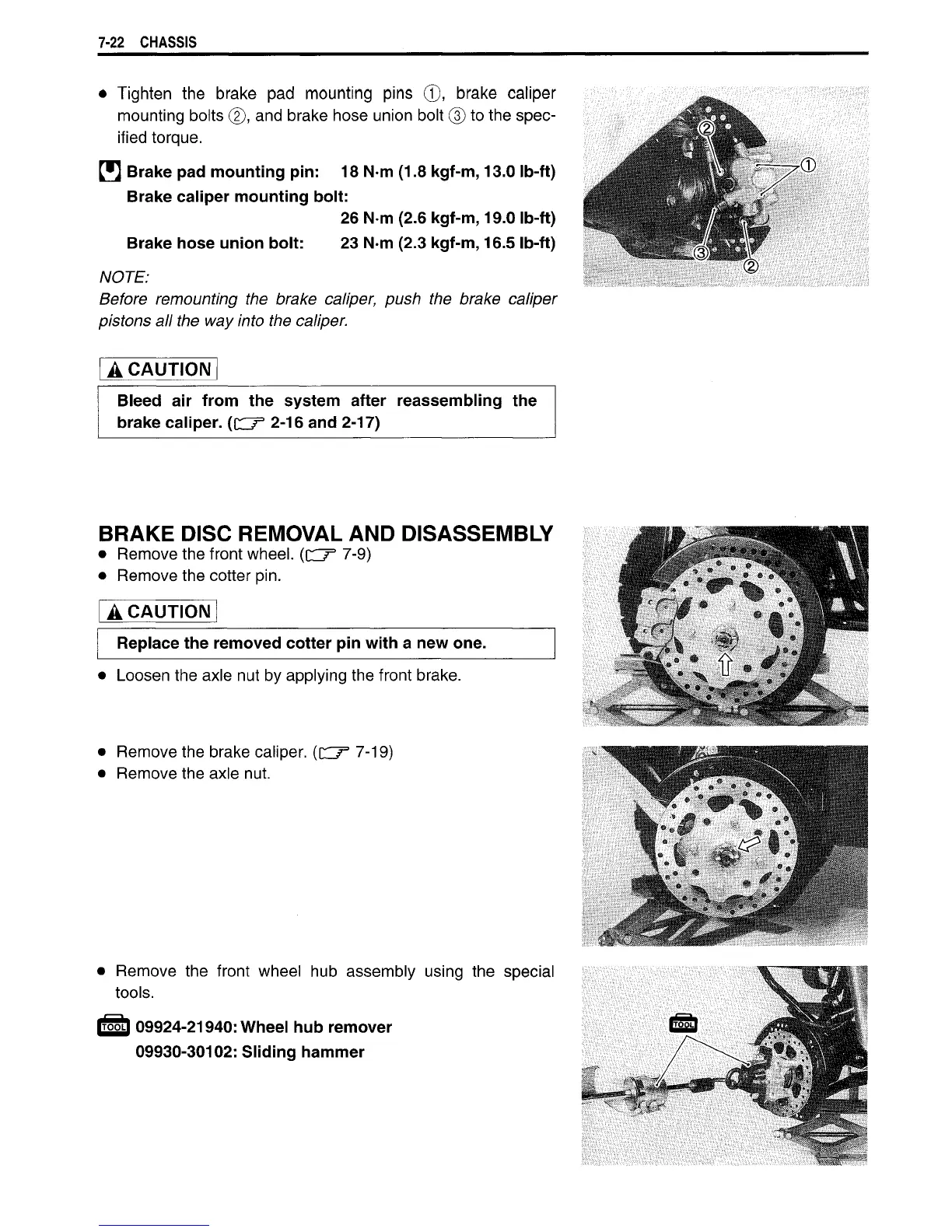

7-22 CHASSIS
# Tighten the brake pad mounting pins ©, brake caliper
mounting bolts (2), and brake hose union bolt ® to the spec-
ified torque.
H Brake pad mounting pin: 18 N-m (1.8 kgf-m, 13.0 Ib-ft)
Brake caliper mounting bolt:
26 N m (2.6 kgf-m, 19.0 Ib-ft)
Brake hose union bolt: 23 N-m (2.3 kgf-m, 16.5 Ib-ft)
NOTE:
Before remounting the brake caliper, push the brake caliper
pistons all the way into the caliper.
A CAUTION
Bleed air from the system after reassembling the
brake caliper, (cir 2-16 and 2-17)
BRAKE DISC REMOVAL AND DISASSEMBLY
• Remove the front wheel. (dT
>
7-9)
• Remove the cotter pin.
A CAUTION
Replace the removed cotter pin with a new one.
Loosen the axle nut by applying the front brake.
Remove the brake caliper. (CIT
3
7-19)
Remove the axle nut.
Remove the front wheel hub assembly using the special
tools.
[FOOL] 09924-21940: Wheel hub remover
09930-30102: Sliding hammer
