LT-A500FK1 ('01-MODEL) 10-15

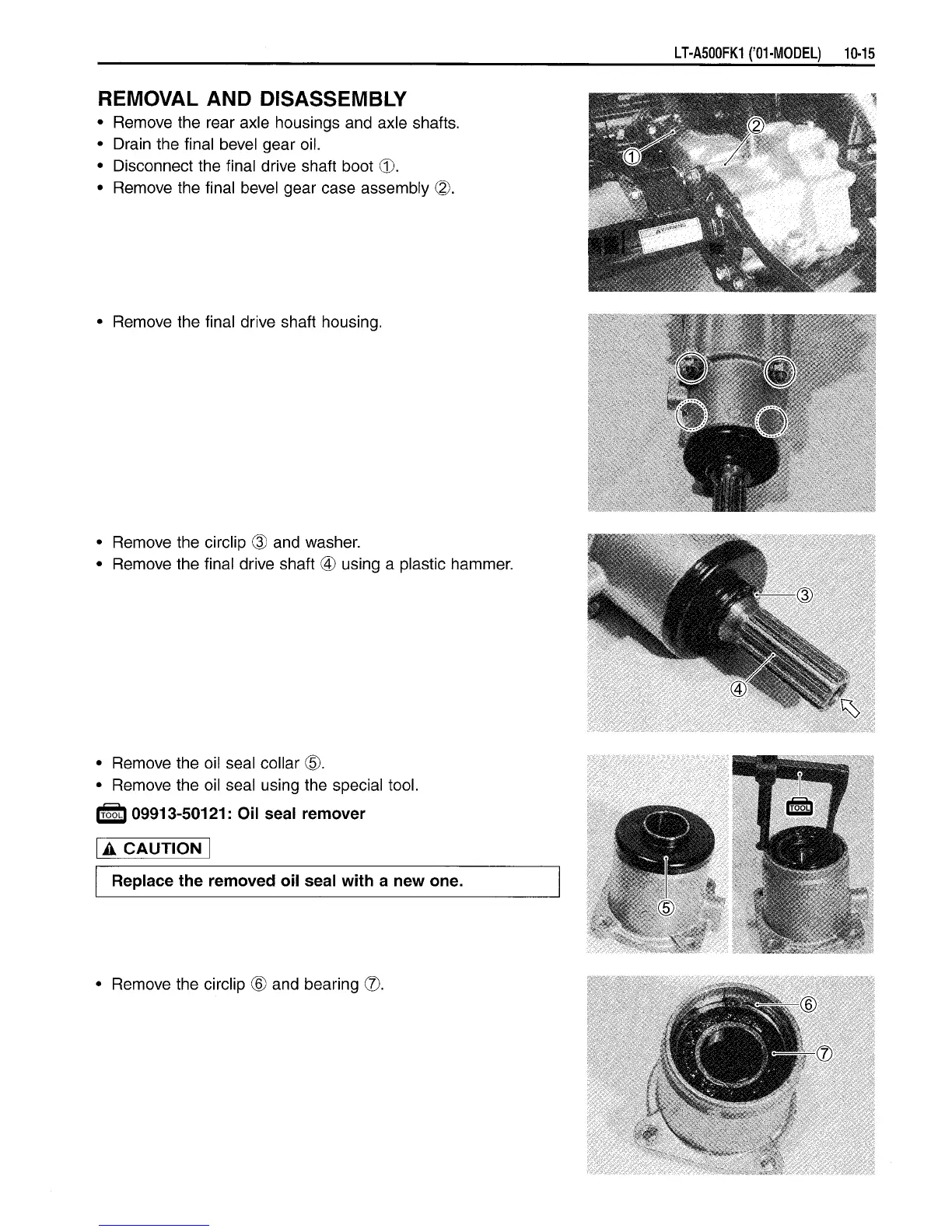

REMOVAL AND DISASSEMBLY
• Remove the rear axle housings and axle shafts.
• Drain the final bevel gear oil.
• Disconnect the final drive shaft boot ©.
• Remove the final bevel gear case assembly (2).
• Remove the final drive shaft housing.
• Remove the oil seal collar (5).
• Remove the oil seal using the special tool.
1T55L1 09913-50121: Oil seal remover
A CAUTION
Replace the removed oil seal with a new one.
Remove the circlip ® and bearing ®.
