Suzuki Vinson LT-A500F User Manual

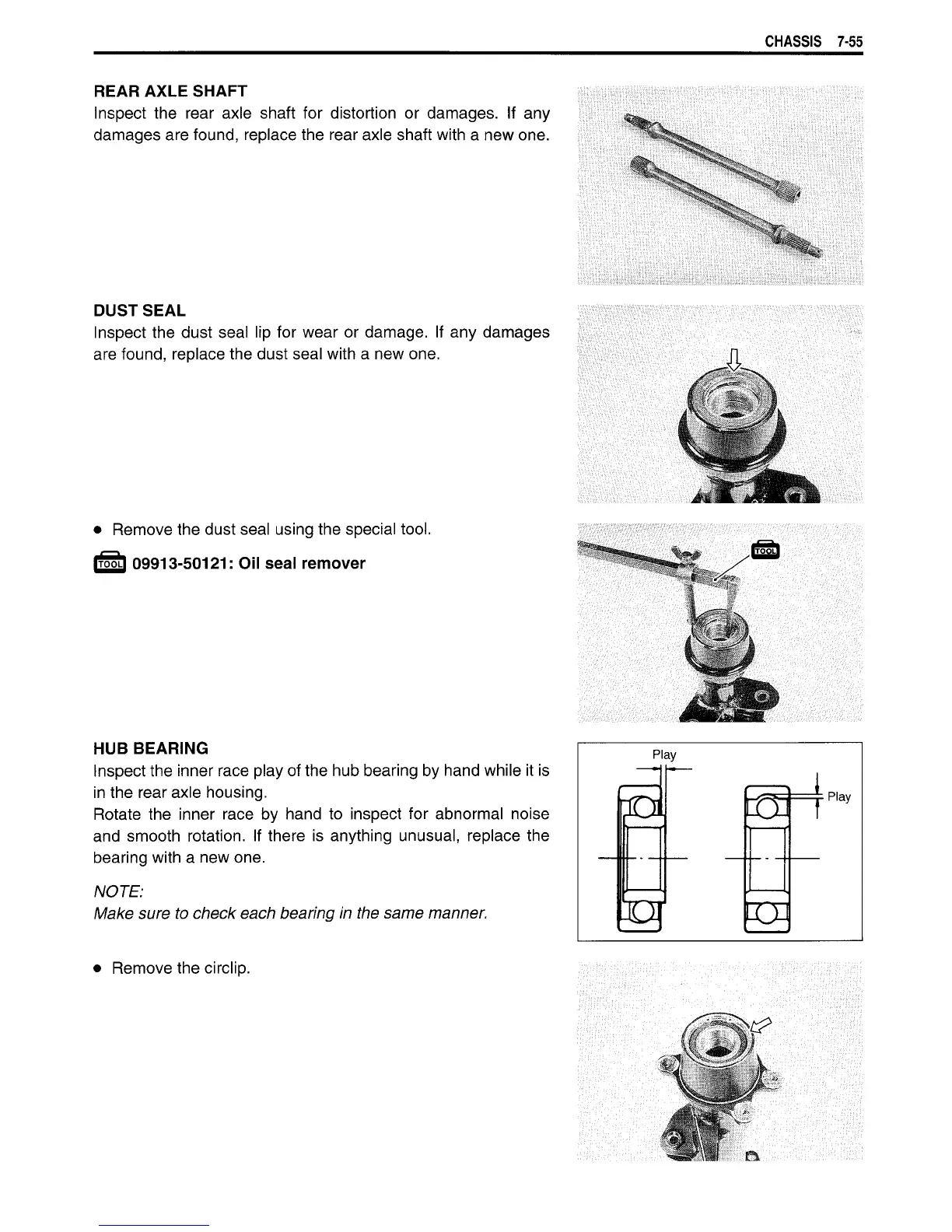

CHASSIS 7-55
REAR AXLE SHAFT
Inspect the rear axle shaft for distortion or damages. If any
damages are found, replace the rear axle shaft with a new one.
DUST SEAL
Inspect the dust seal lip for wear or damage. If any damages
are found, replace the dust seal with a new one.
• Remove the dust seal using the special tool.
IT55LI 09913-50121: Oil seal remover
HUB BEARING
Inspect the inner race play of the hub bearing by hand while it is
in the rear axle housing.
Rotate the inner race by hand to inspect for abnormal noise
and smooth rotation. If there is anything unusual, replace the
bearing with a new one.
NOTE:
Make sure to check each bearing in the same manner.
• Remove the circlip.
