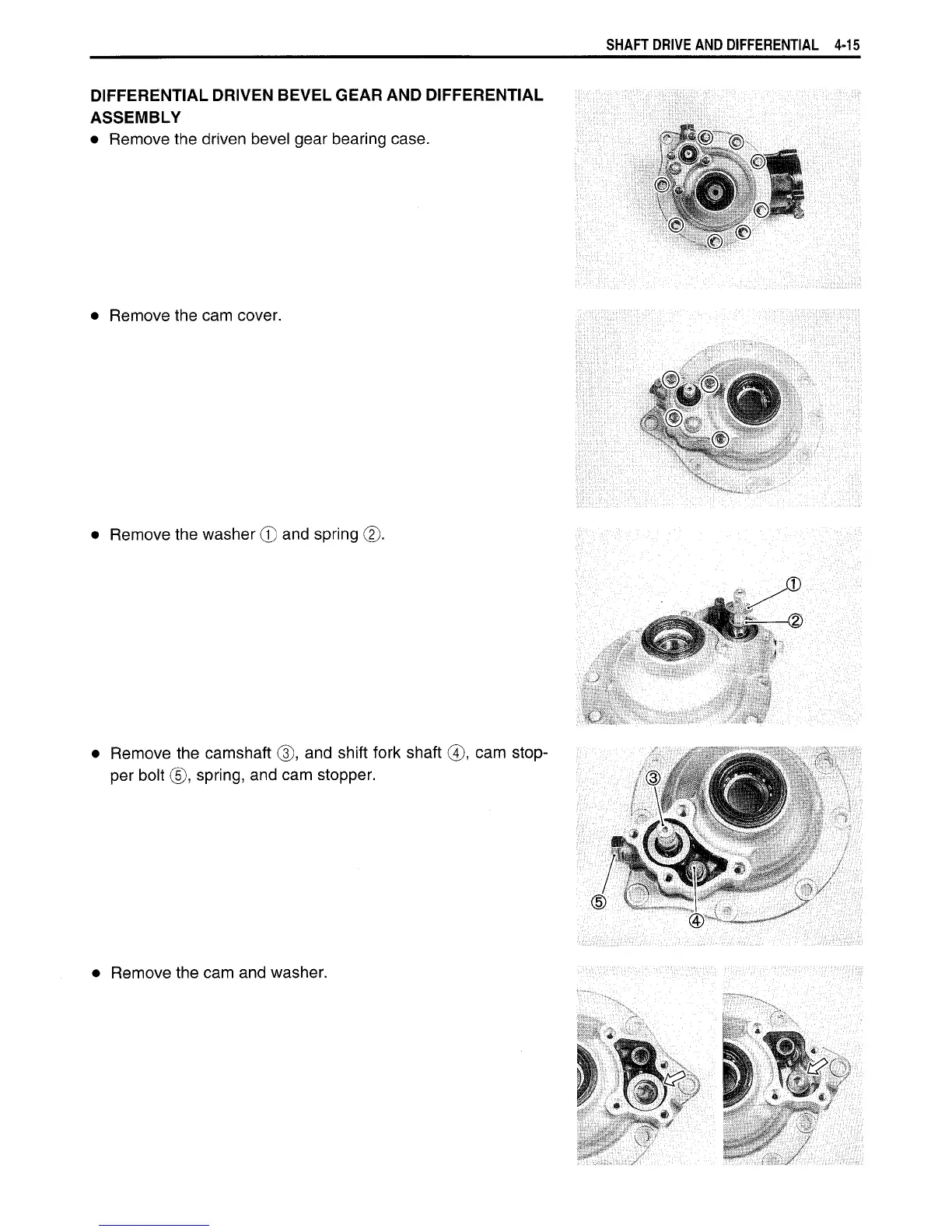

SHAFT DRIVE AND DIFFERENTIAL 4-15
DIFFERENTIAL
DRIVEN
BEVEL
GEAR AND DIFFERENTIAL
ASSEMBLY
•
Remove the
driven bevel gear bearing case.
•
Remove the cam
cover.
•
Remove the
washer
©
and
spring
(2).
•
Remove the cam and
washer.
ill
