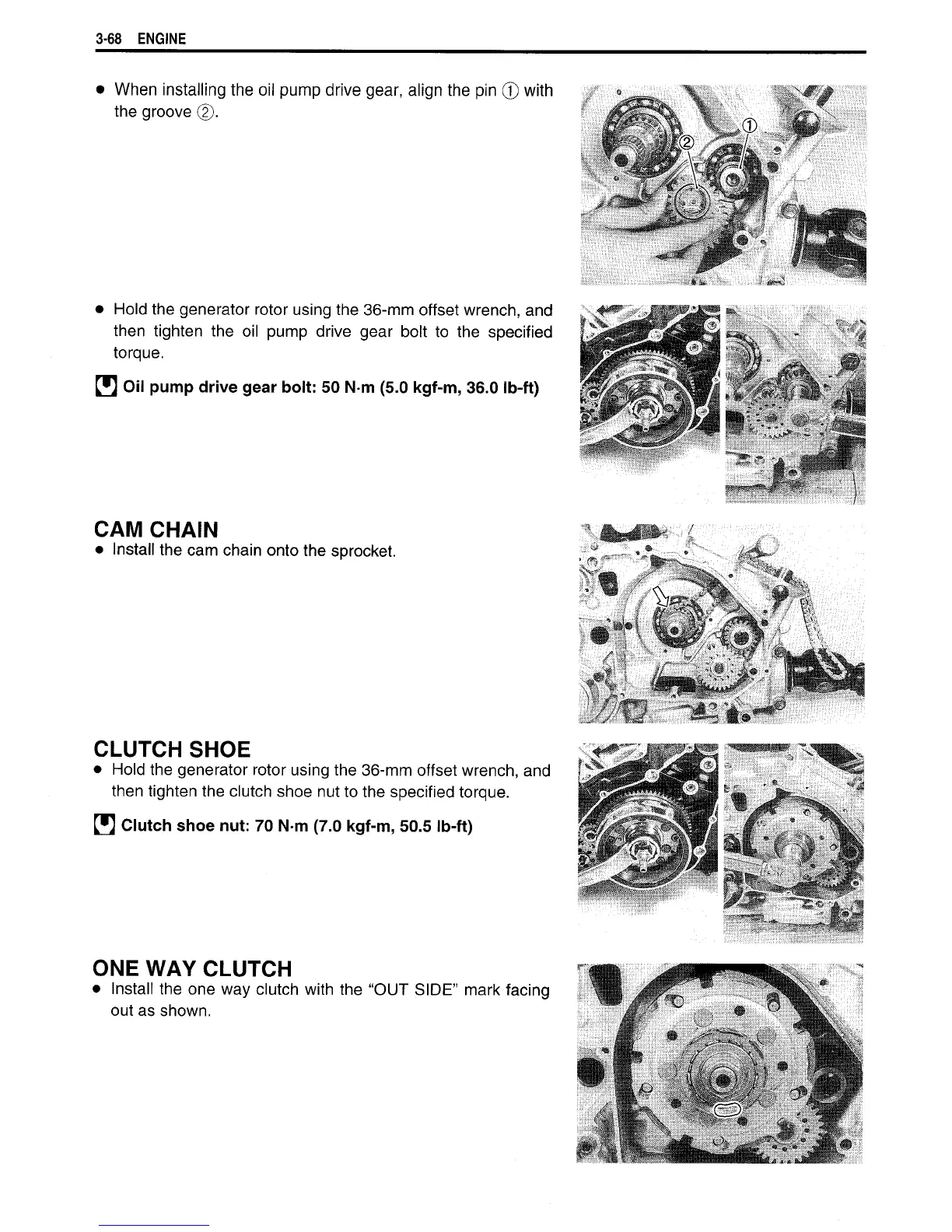

3-68
ENGINE
•
When
installing the oil pump drive gear, align the pin
®
with
the groove (2).
•
Hold the generator rotor using the 36-mm offset wrench,
and
then tighten
the oil
pump drive gear bolt
to
the
specified
torque.
H Oil
pump
drive gear
bolt:
50 N m (5.0
kgf-m,
36.0 Ib-ft)
CAM
CHAIN
•
Install the cam chain onto the sprocket.
CLUTCH SHOE
•
Hold the generator rotor using the 36-mm offset wrench,
and
then tighten the clutch shoe nut to the specified torque.
H
Clutch shoe nut:
70 N m (7.0
kgf-m,
50.5 Ib-ft)
ONE
WAY
CLUTCH
A
•
Install the
one
way clutch
with
the
"OUT
SIDE"
mark facing
\JH
out
as
shown.
