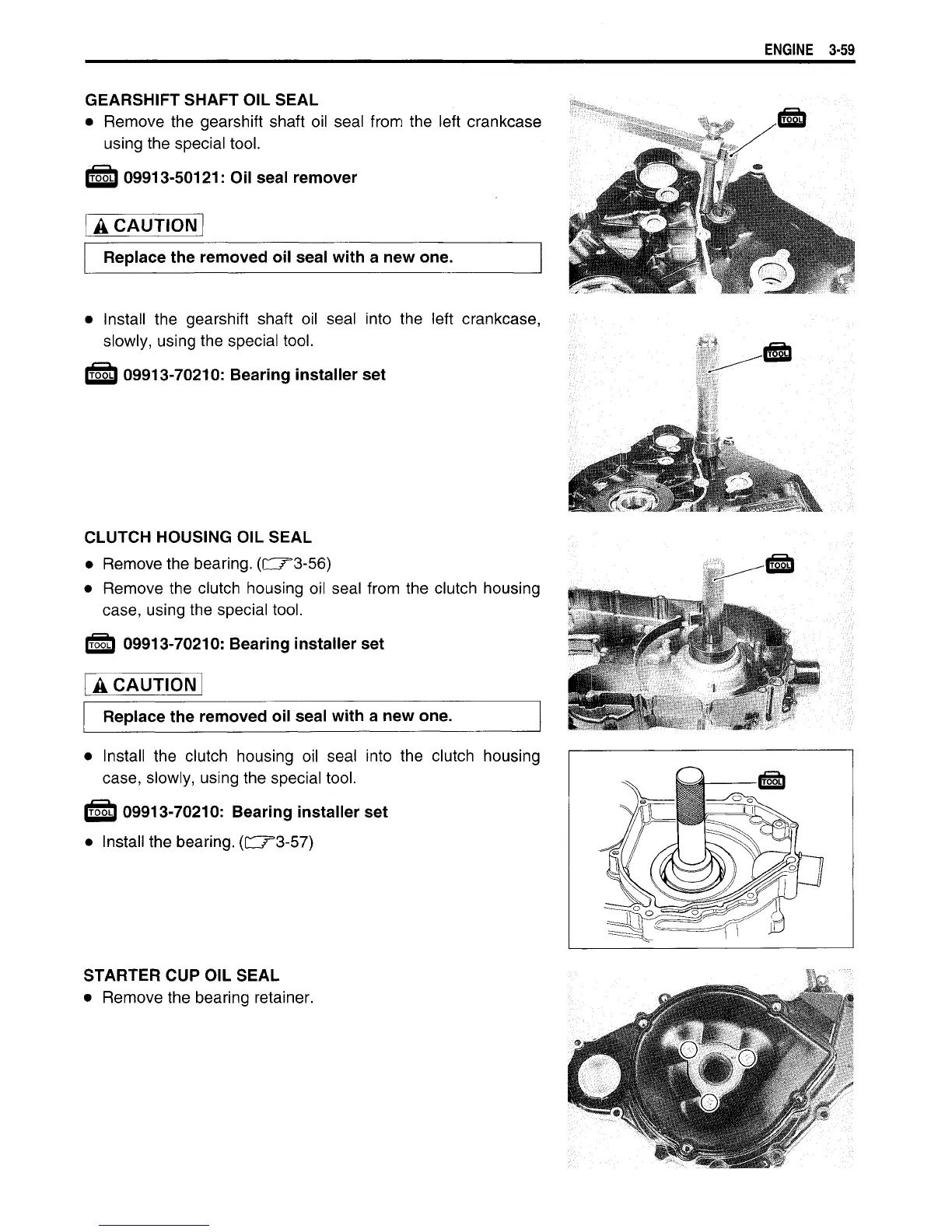

GEARSHIFT SHAFT OIL SEAL
• Remove the gearshift shaft oil seal from the left crankcase
using the special tool.
09913-50121: Oil seal remover
A CAUTION
Replace the removed oil seal with a new one.
• Install the gearshift shaft oil seal into the left crankcase,
slowly, using the special tool.
(™^| 09913-70210: Bearing installer set
CLUTCH HOUSING OIL SEAL
• Remove the bearing. (CZ/
=3
3-56)
• Remove the clutch housing oil seal from the clutch housing
case, using the special tool.
IT55LI 09913-70210: Bearing installer set
A CAUTION^
Replace the removed oil seal with a new one.
• Install the clutch housing oil seal into the clutch housing
case, slowly, using the special tool.
ITSSLI 09913-70210: Bearing installer set
• Install the bearing. (CZT3-57)
STARTER CUP OIL SEAL
• Remove the bearing retainer.
