Xerox Phaser 7100 Service Manual

Maintenance
Xerox Internal Use Only Phaser 7100 Service Manual 6-17
Manual Color Registration Adjustment
Note: Be sure to load paper Long-Edge Feed in the Bypass Tray when performing manual Color
Registration procedure.
1. On the Control Panel, press Menu.
2. Press Down Arrow and navigate to Admin Menu, and press OK.
3. Press Down Arrow and navigate to Image Quality, and press OK.
4. Press Down Arrow and navigate to Adjust Color Regi, and press OK.
5. Press Down Arrow and navigate to Manual Color Regi, and press OK.
6. Press Down Arrow and navigate to Color Regi Chart, and press OK.
7. A Load 8.5 x 11 in Tray 5 (Bypass Tray) and press OK message appears.
Note: Be sure to load paper Long-Edge Feed.
8. Press OK to print the Color Registration Chart.

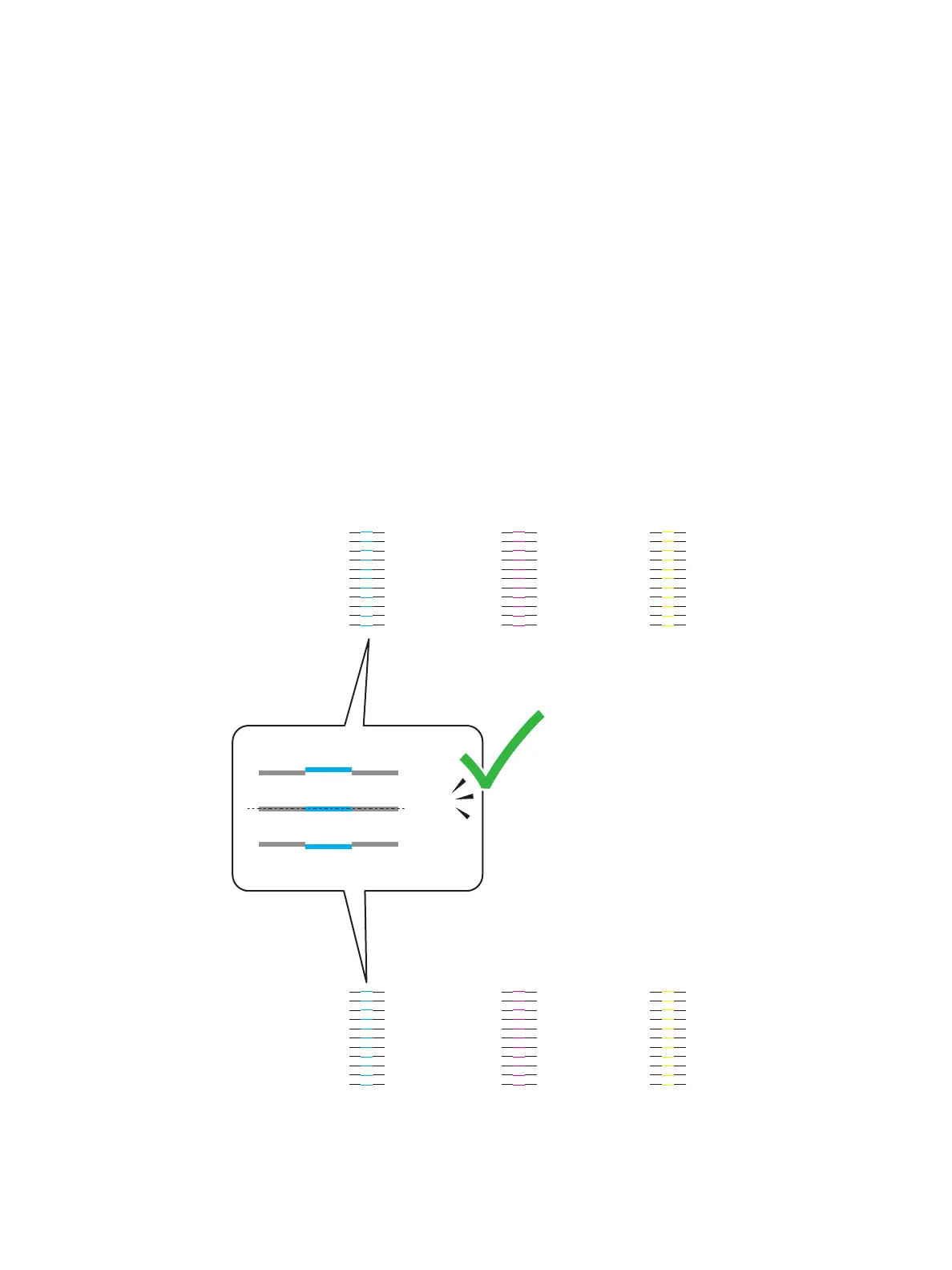

9. Starting with the left side calibration lines, LY, LM, and LC, circle the line in each group where the
color bar aligns with the adjacent black bars.
10. Repeat the process for the right side calibration lines, RY, RM, and RC.
0
+1
-1
-2
-3
-4
-5
+2
+3
+4
+5
0
+1
-1
-2
-3
-4
-5
+2
+3
+4
+5
0
+1
-1
-2
-3
-4
-5
+2
+3
+1
+2
+3
+4
+5
LC LM LY
0
+1
-1
-2
-3
-4
-5
+2
+3
+4
+5
0
+1
-1
-2
-3
-4
-5
+2
+3
+4
+5
0
+1
-1
-2
-3
-4
-5
+2
+3
+4
+5
RC RM RY
s7100-471

Xerox Phaser 7100 Specifications

General

Maximum Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 52, 000 pages
Processor	667 MHz
Memory (Standard)	256 MB
Paper Input Capacity (Maximum)	2, 050 sheets
Paper Output Capacity	250 sheets
Duplex Printing	Automatic
Type	Color Laser Printer
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Supported Media Sizes	A4, A5, B5, Letter, Legal
First Page Out (Black)	9 seconds
First Page Out (Color)	9 seconds
Print Languages	PCL 6, PostScript 3
Network Connectivity	Ethernet
Print Speed	Up to 30 ppm
