Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-70
REP 3.2 Separator Retard Holder Assembly
PL 3.1.8

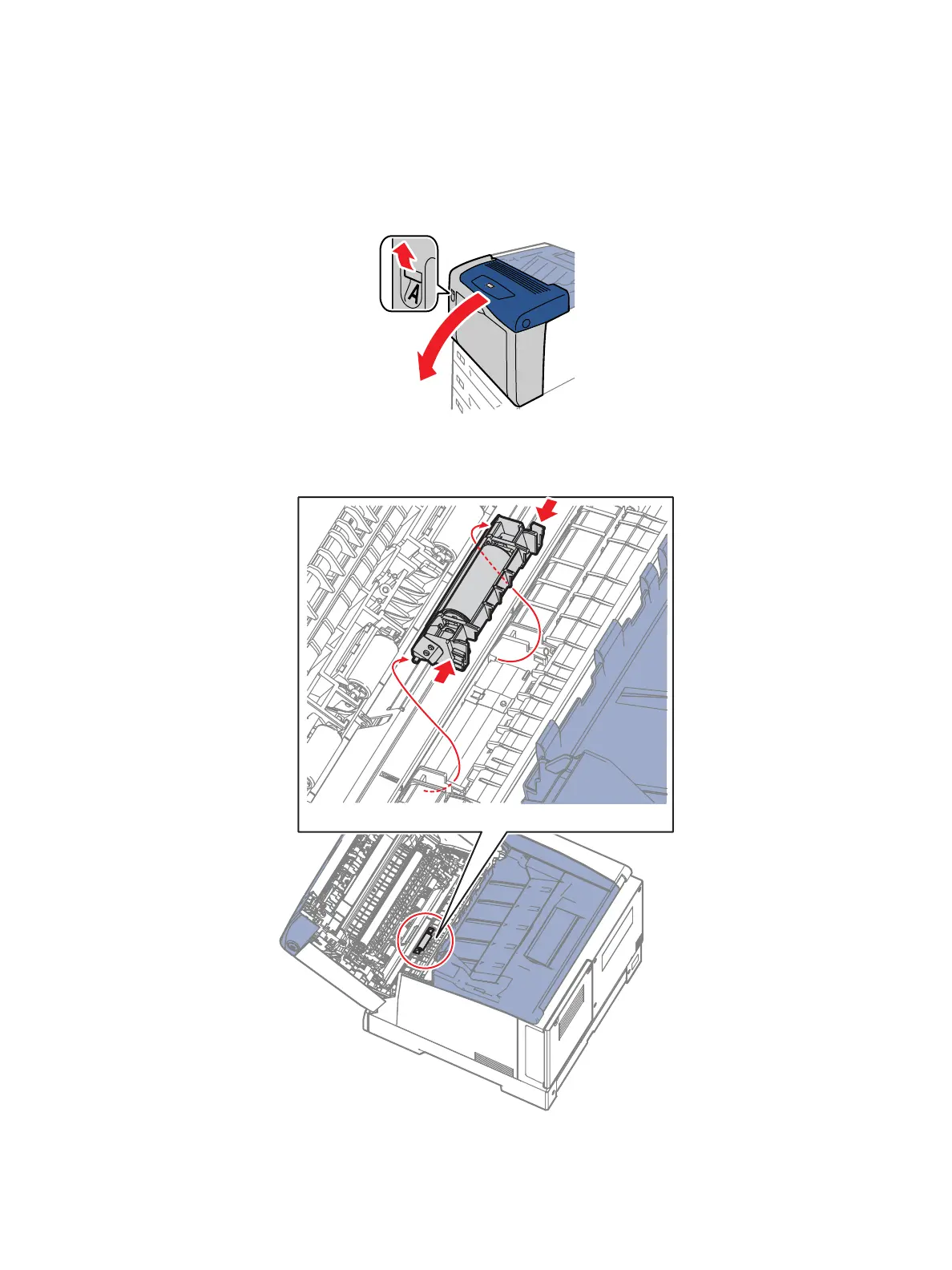

1. Release latch A and open the Front Frame Assembly (PL 4.1.6).
2. Press the knobs on the left and right of the Separator Retard Holder Assembly to release the locks
and free the bosses on the bottom left and right of the Retard Holder Assembly to remove.
To Next Page
