REP 12.22 AC-In Harness Assembly
PL 12.1.14
1. Remove Tray 1.
2. Remove the I/P PWB Cover Assembly (REP 1.5 Image Processor (I/P) PWB Cover Assembly on
page 4-19)
3. Remove the Rear Cover (REP 1.6 Rear Cover on page 4-20).
4. Remove the Left Side Cover (REP 1.10 Left Side Cover on page 4-25).
5. Remove the Left Feeder Cover (REP 2.10 Left Feeder Cover on page 4-49).
6. Disconnect the wiring harness connector P/J501.
7. Remove 1 screw that secures the Ground Wire.
8. Release the Ground Wire and the clip from the printer frame.
9. Open the harness holder and release the Ground Wire from the holder.

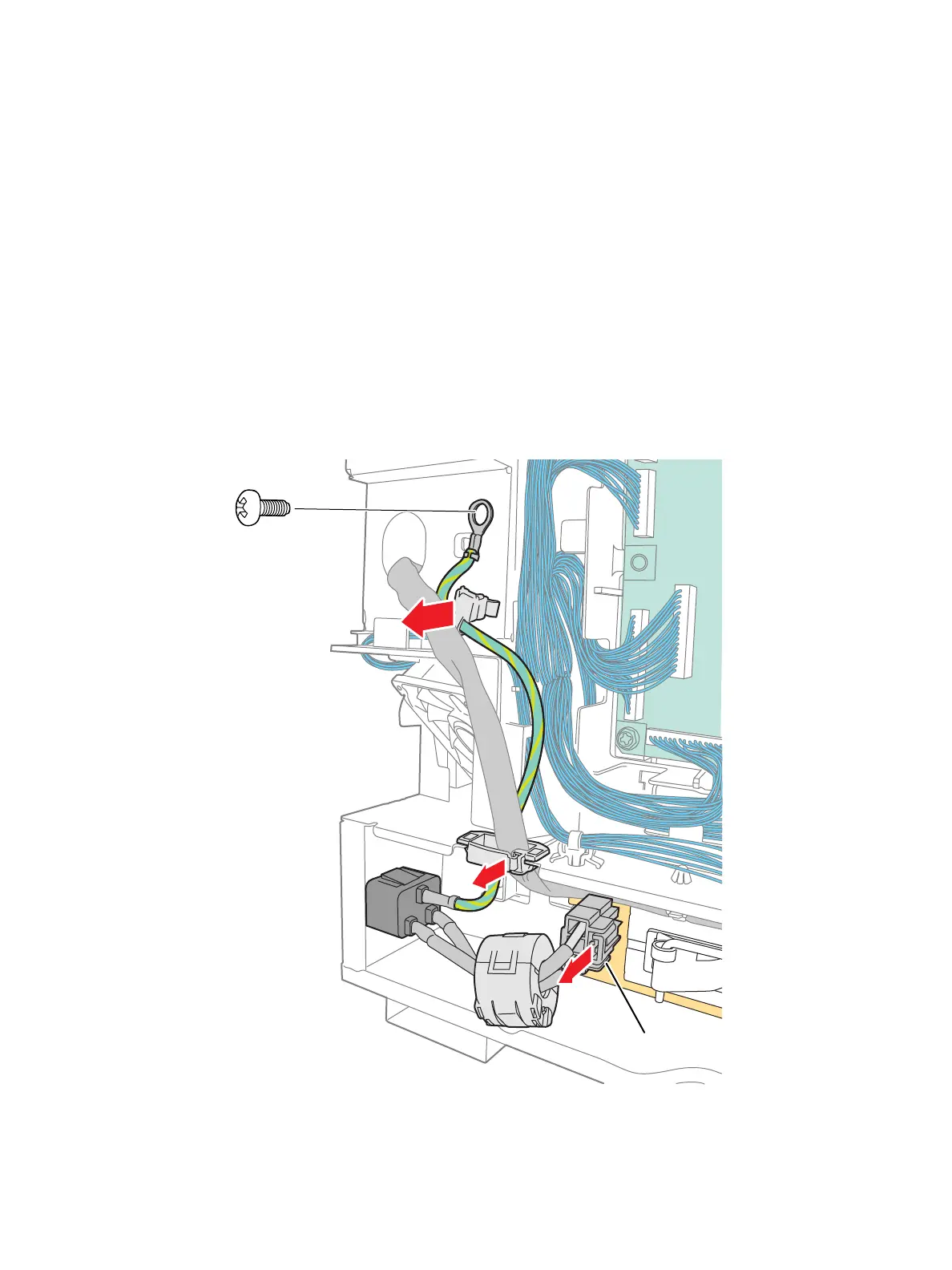

s7100-461
P/J501
