Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-151
REP 8.5 Toner CRUM Connector Assembly
PL 8.1.13
CAUTION: Do not expose the Imaging Unit to light for more than 5 minutes. Cover the Imaging
Unit to avoid damage. Do not touch the surface of the Imaging Unit.
1. Remove the Imaging Unit (Y/ M/ C/ K) (REP 6.0 Imaging Unit (Y/ M/ C/ K) on page 4-121).
2. Remove the Left Imaging Unit Guide Assembly (REP 6.5 Left Imaging Unit Guide Assembly on
page 4-129).
3. Disconnect the wiring harness connector (P/J4541, P/J4542, P/J4543, P/J4544) that is connected
to the Toner CRUM Connector Assembly.

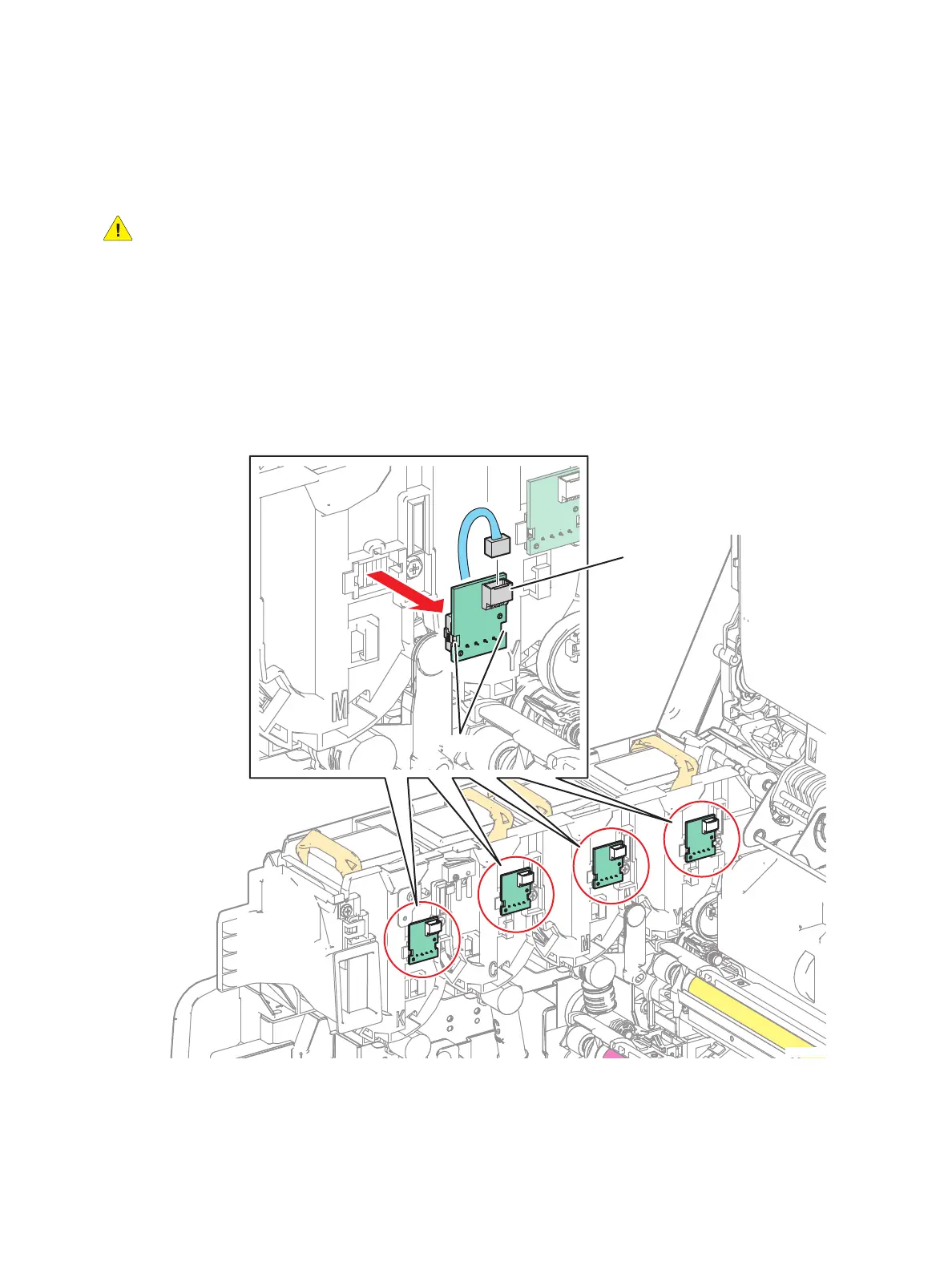

4. Use a flat tip screwdriver to release the 2 hooks that secure the Toner CRUM Connector Assembly
to the printer and remove the Toner CRUM Connector Assembly.
Hooks
P/J4541 (Y)
P/J4542 (M)
P/J4543 (C)
P/J4544 (K)
s7100-349
