Service Parts Disassembly
X
erox Inte
rnal Use Only
Phaser 7100 Service Manual
4-65

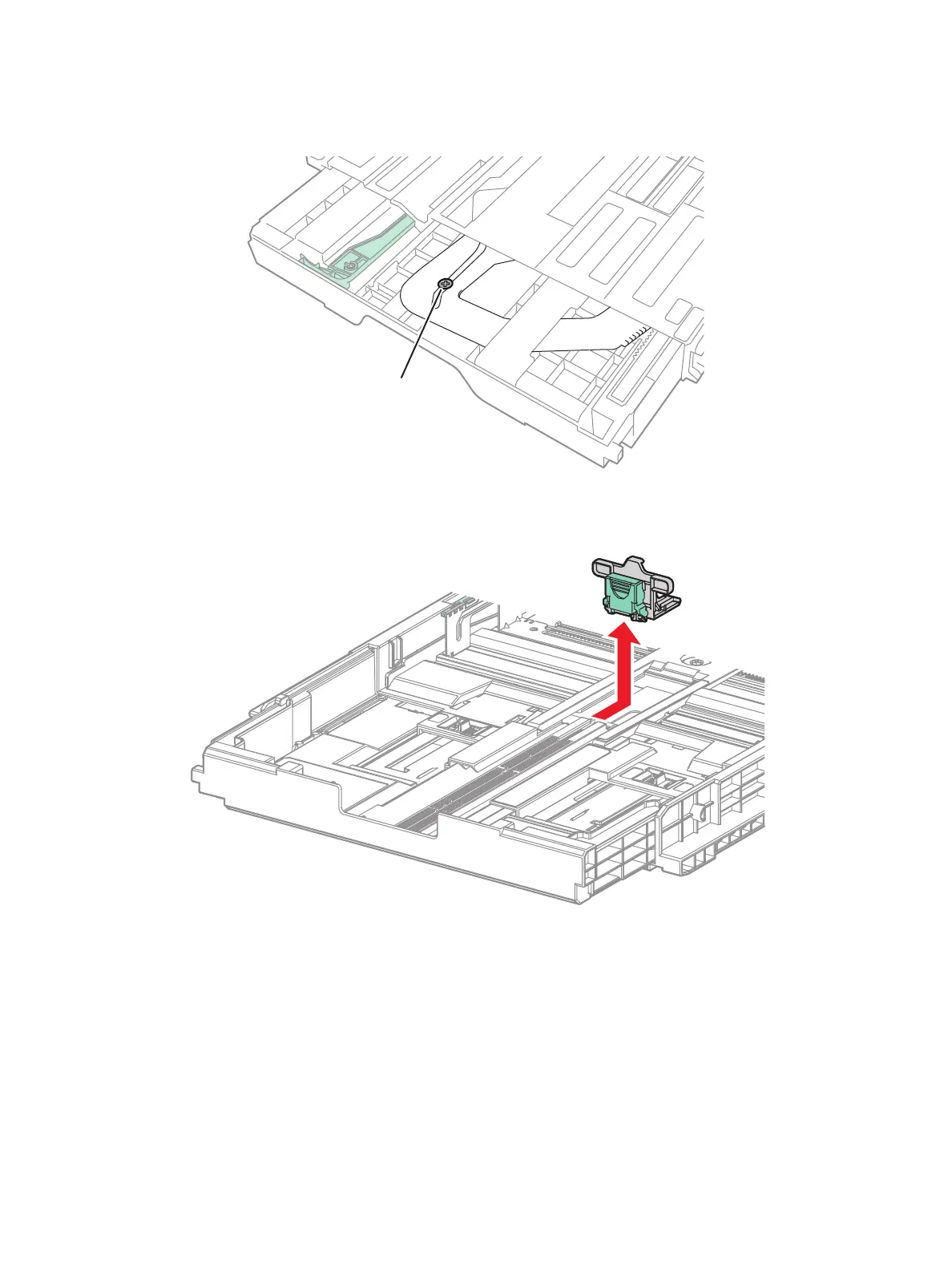

3.
R
e
move one screw (silver, tap
ped, 8 mm)
that secures the
End Guide As
sembly.
4.
T
ur
n the Exit Housi
ng Assem
bly over and
slide th
e End Guide Assemb
ly to the f
ront until i
t can go
no further and remove the End Gui
de Assemb
ly fr
om the Exit
Housing As
sembly.
s7100-458
Screw
s7100-082
712
714
