Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-212

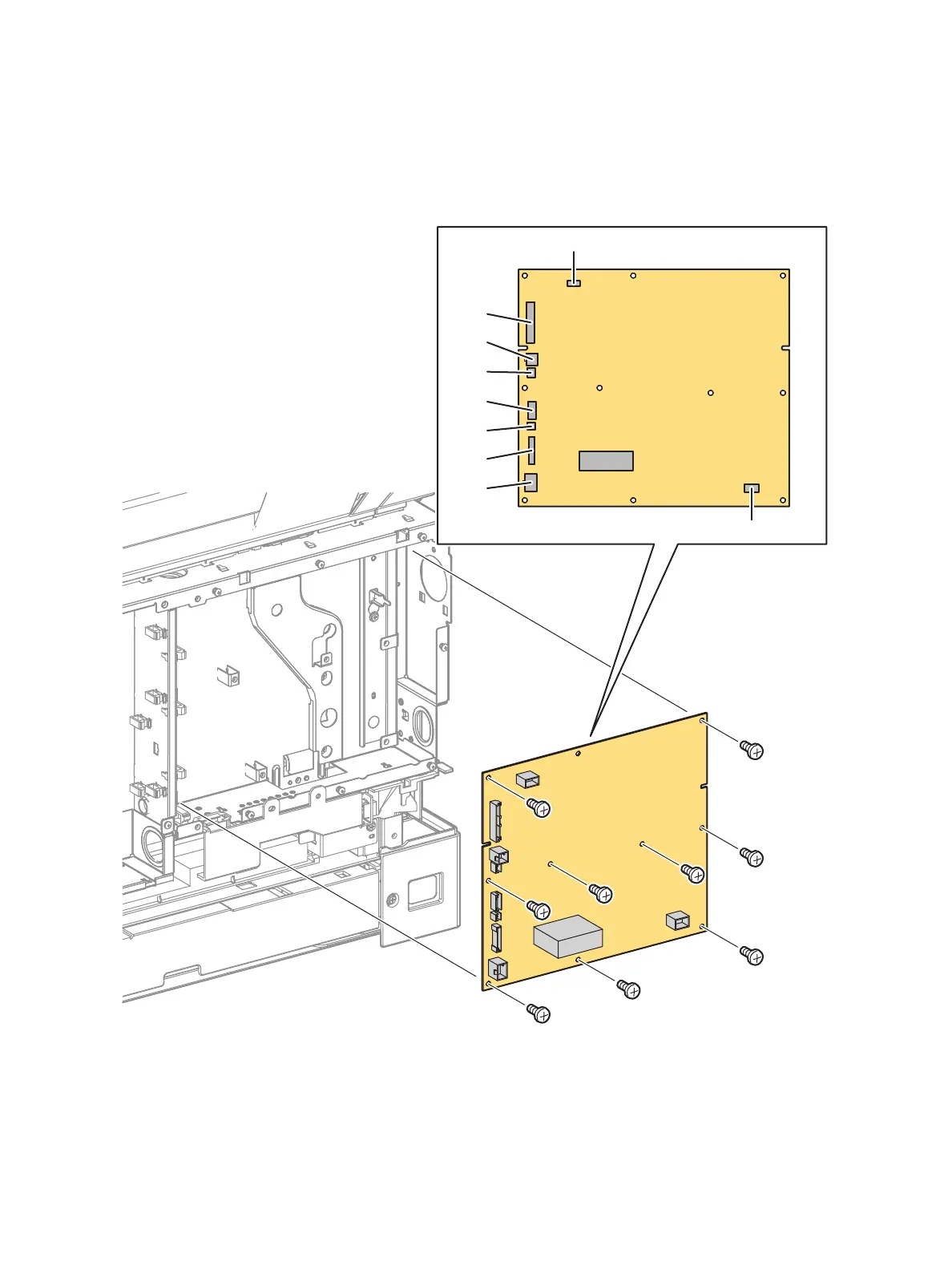

5. Disconnect 9 wiring harness connectors (P/J521, P/J522, P/J523, P/J524, P/J525, P/J526, P/J527,
P/J528, P/J529) that are connected to the LVPS PWB.
6. Remove 9 screws (silver, 6 mm) that secure the LVPS PWB to the printer.
7. Remove the LVPS PWB.
s7100-363
523
521
524
528
529
522
525
527
526
