ENGINE
3-13
NOTE:
Before checking the engine oil level, wait a few
minutes until the oil has settled.
5. Start the engine, warm it up for several min-
utes, and then turn it off.
6. Check the engine oil level again.
NOTE:
Before checking the engine oil level, wait a few
minutes until the oil has settled.
EAS20790

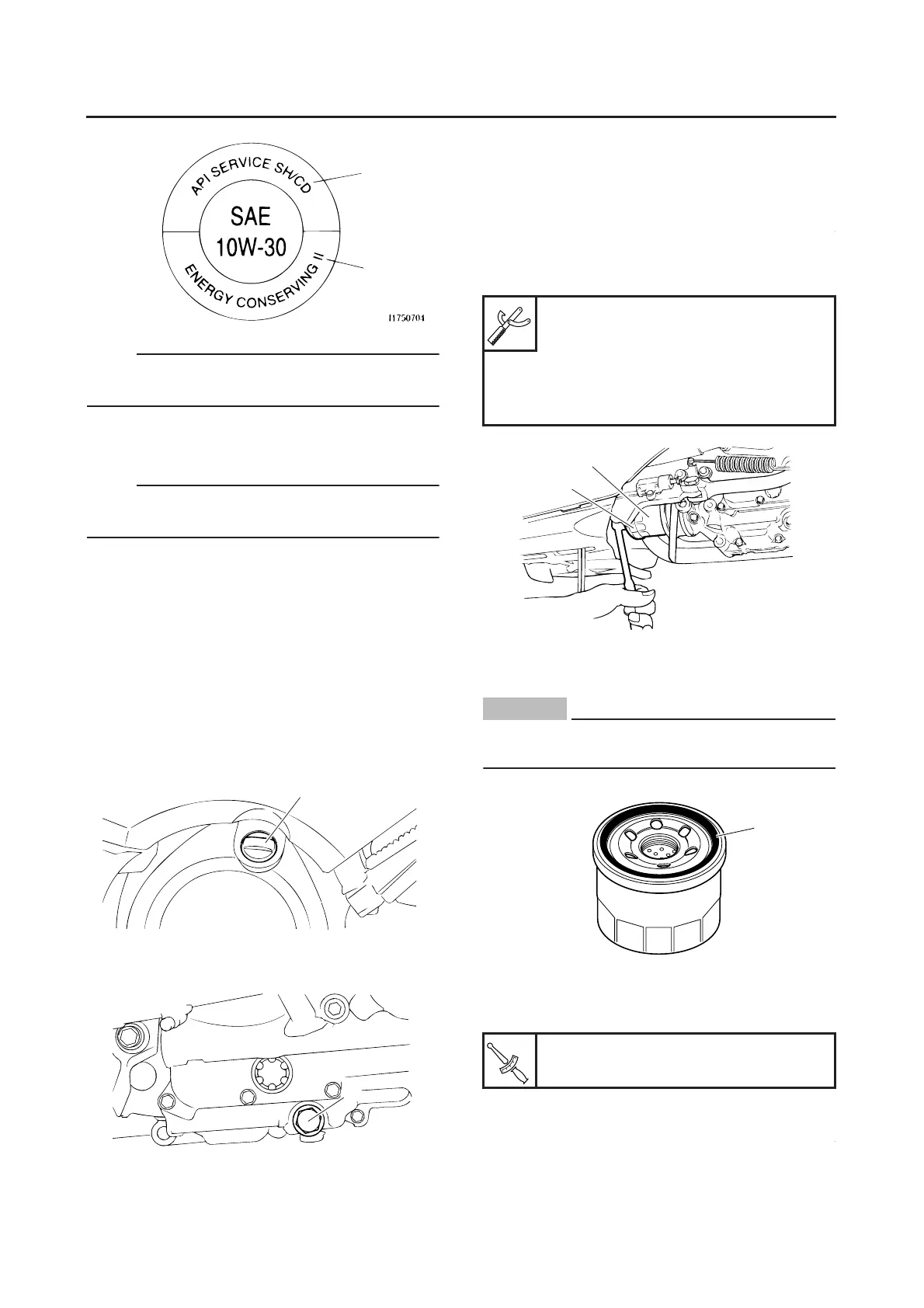

CHANGING THE ENGINE OIL
1. Start the engine, warm it up for several min-
utes, and then turn it off.
2. Place a container under the engine oil drain
bolt.
3. Remove:
● Engine oil filler cap “1”
● Engine oil drain bolt “2”
(along with the gasket)
4. Drain:
● Engine oil
(completely from the crankcase)
5. If the oil filter cartridge is also to be replaced,
perform the following procedure.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Remove the oil filter cartridge “1” with an oil
filter wrench “2”.
b. Lubricate the O-ring “3” of the new oil filter
cartridge with a thin coat of engine oil.
CAUTION:
ECA13390
Make sure the O-ring “3” is positioned cor-
rectly in the groove of the oil filter cartridge.
c. Tighten the new oil filter cartridge to specifi-
cation with an oil filter wrench.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
c
d
1
2
Oil filter wrench
90890-01426
YU-38411
Oil filter wrench
90890-01469
YM-01469
Oil filter cartridge
17 Nm (1.7 m•kg, 12 ft•lb)
1
2
3
T
R
.
.
