FRONT WHEEL

4-6

EAS21880

FRONT WHEEL

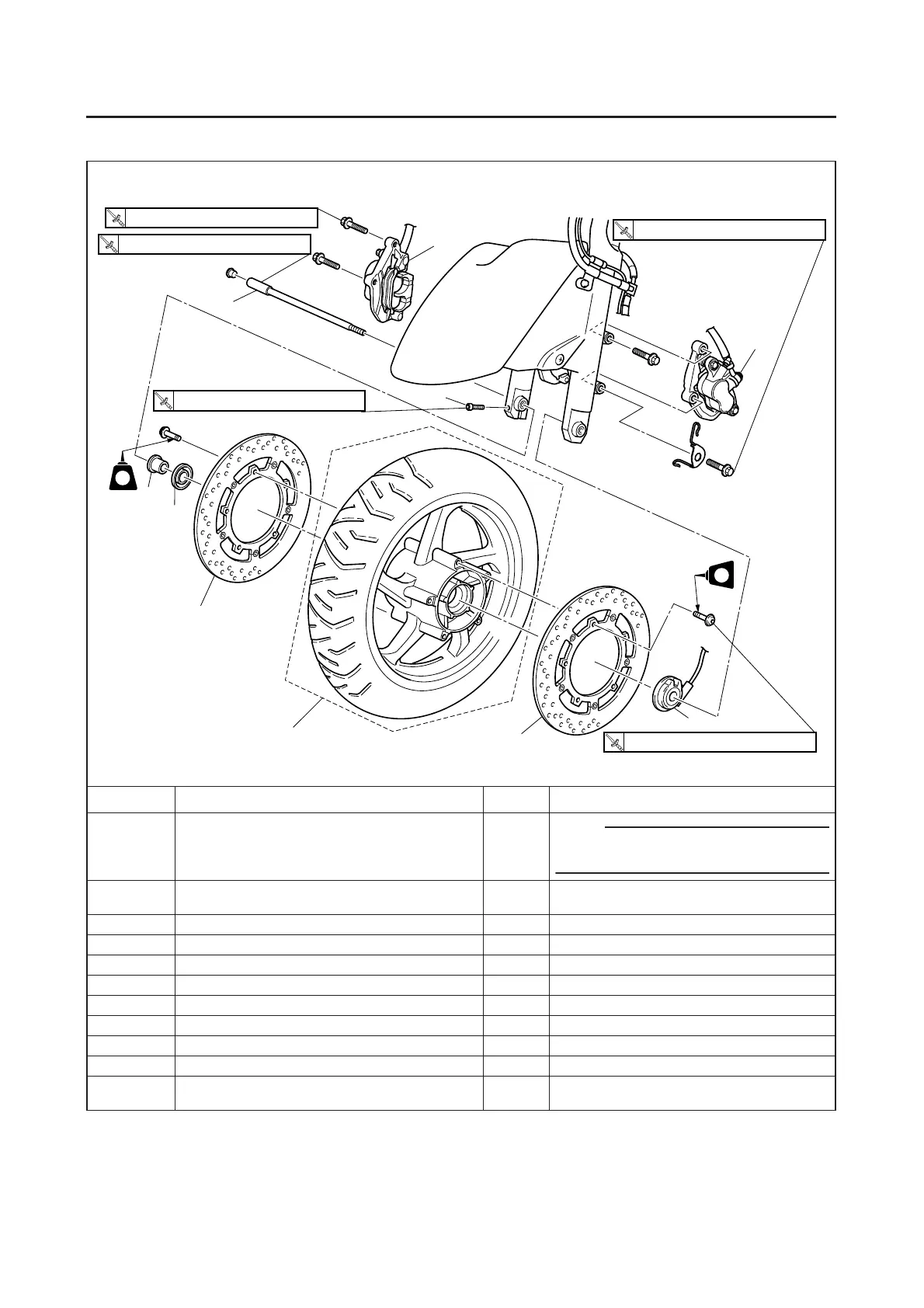

Removing the front wheel and brake disc (XP500)

Order Job/Parts to remove Q’ty Remarks

NOTE:

Place the vehicle on a suitable stand so that

the front wheel is elevated.

Front cowling upper cover

Refer to “GENERAL CHASSIS” on page

4-1.

1 Front brake caliper (left and right) 2

2 Front wheel axle pinch bolt 1 Loosen.

3 Front wheel axle 1

4 Front wheel 1

5 Speed sensor 1

6 Collar 1

7 Dust cover 1

8 Brake disc 2

For installation, reverse the removal proce-

dure.

(6)

18 Nm (1.8 m • kg, 13 ft • Ib)

40 Nm (4.0 m • kg, 29 ft • Ib)

23 Nm (2.3 m • kg, 17 ft • Ib)

40 Nm (4.0 m • kg, 29 ft • Ib)

59 Nm (5.9 m • kg, 43 ft • Ib)
