ABS (ANTI-LOCK BRAKE SYSTEM) (XP500A)
8-93
4. Brake hose lines
Refer to “Malfunction code 42”.
5. Hydraulic unit solenoid coupler terminals
Refer to “Malfunction code 42”.
6. Hydraulic unit
Refer to “Malfunction code 42”.
7. Battery voltage
Measure the battery voltage.
EAS15B3036
[D-6-4] DELETING THE MALFUNCTION CODE

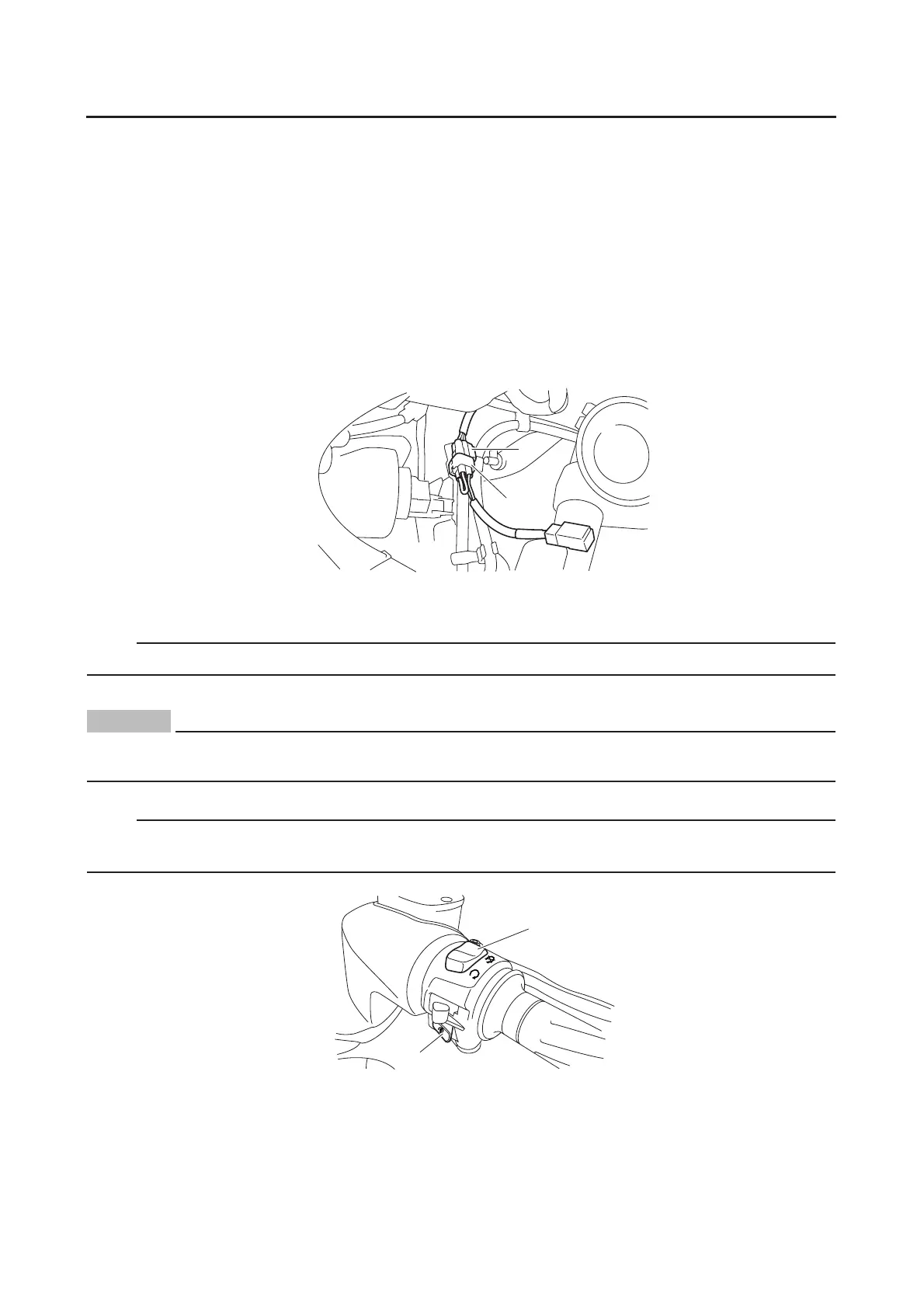

1. Connect the test coupler adapter “1” to the test coupler “2”. Refer to “[B-5] MALFUNCTION CHECK
BY THE ABS SELF DIAGNOSIS (PRESENT MALFUNCTION)”
2. Turn the main switch on.
● The multifunction display indicates previously recorded malfunction codes.
NOTE:
The ABS error code is not displayed during the diagnosis of the fuel injection.
3. Turn the engine stop switch off.
CAUTION:
ECA15B3026
If the starter switch is pushed without turning the engine stop switch off, it may damage the
starting motor gears or other parts, therefore be sure to turn it off.
4. Push the starter switch “2” more than 10 times in 4 seconds to delete the malfunction codes.
NOTE:
The multifunction meter display switches to the ODO/TRIP display and the ABS warning light flashes
in 0.5 second intervals when the malfunction codes are deleted.
5. Turn the main switch off.
6. Turn the main switch on again.
● Check that the ABS warning light goes on for 2 seconds, then goes out for 3 seconds and starts
flashing.
1
2
1
2
