REAR BRAKE
4-43
with the brake caliper body as shown in the illus-
tration.
EAS22670

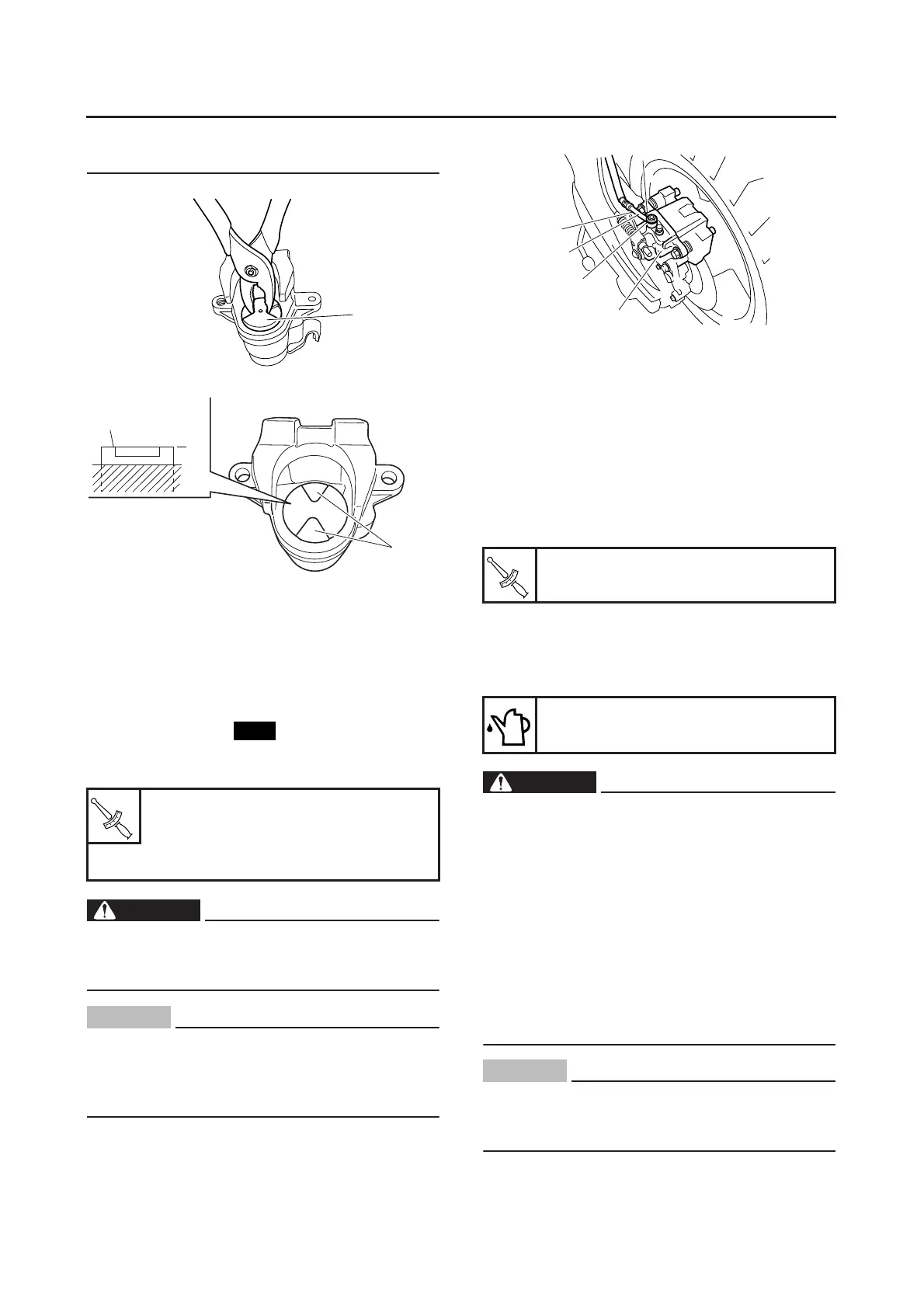

INSTALLING THE REAR BRAKE CALIPER
1. Install:
● Brake caliper bracket
● Brake caliper “1”
(temporarily)
● Copper washers
● Brake hose “2”
● Union bolt “3”
WARNING
EWA13530
Proper brake hose routing is essential to in-
sure safe vehicle operation. Refer to “CABLE
ROUTING” on page 2-35.
CAUTION:
ECA14170
When installing the brake hose onto the
brake caliper “1”, make sure the brake pipe
“a” touches the projection “b” on the brake
caliper.
2. Remove:
● Brake caliper
3. Install:
● Brake pads
● Brake pad springs
● Brake caliper retaining bolt
● Brake caliper
● Brake hose holder
Refer to “REPLACING THE REAR BRAKE
PADS” on page 4-39.
4. Fill:
● Brake fluid reservoir
(with the specified amount of the recom-
mended brake fluid)
WARNING
EWA13090
● Use only the designated brake fluid. Other
brake fluids may cause the rubber seals to
deteriorate, causing leakage and poor
brake performance.
● Refill with the same type of brake fluid that
is already in the system. Mixing brake flu-
ids may result in a harmful chemical reac-
tion, leading to poor brake performance.
● When refilling, be careful that water does
not enter the brake fluid reservoir. Water
will significantly lower the boiling point of
the brake fluid and could cause vapor lock.
CAUTION:
ECA13540
Brake fluid may damage painted surfaces
and plastic parts. Therefore, always clean up
any spilt brake fluid immediately.
Brake caliper bracket
40 Nm (4.0 m•kg, 29 ft•lb)
Brake hose union bolt
30 Nm (3.0 m•kg, 22 ft•lb)
1
1
a
b
New
T
R
.
.
Brake caliper retaining bolt
27 Nm (2.7 m•kg, 19 ft•lb)
Recommended fluid
DOT 4
1
2
3
b
a
T
R
.
.
