TRANSMISSION
5-71
EAS26250

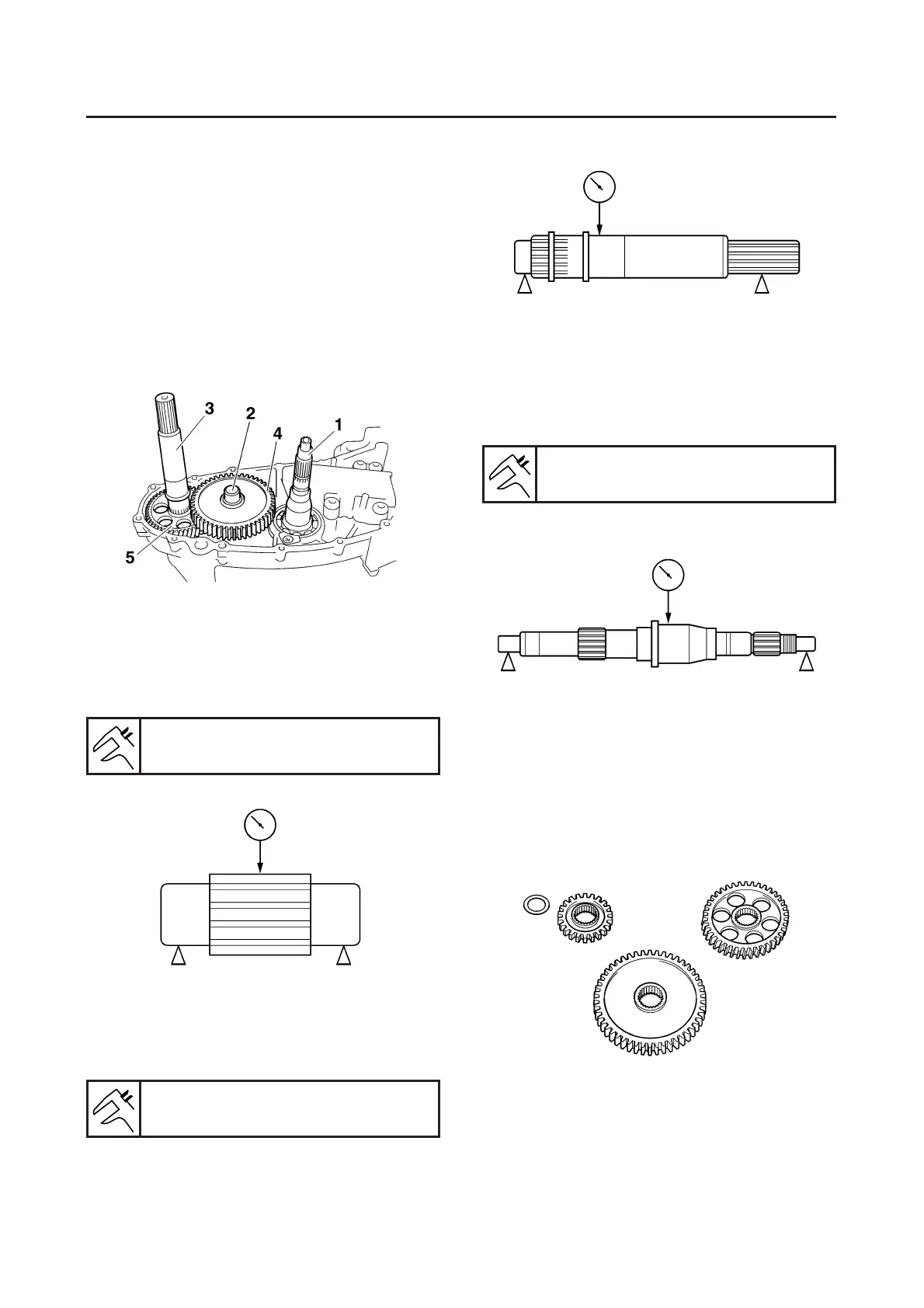

REMOVING THE TRANSMISSION
1. Remove:
● Left crankcase
Refer to “CRANKCASE AND CRANK-
SHAFT” on page 5-59.
2. Remove:
● Secondary shaft; “1”
● Main axle“2”
● Drive axle“3”
● Primary driven gear“4”
● First wheel gear“5”
● First pinion gear
EAS26300
CHECKING THE TRANSMISSION
1. Measure:
● Main axle runout
(with a centering device and dial gauge)
Out of specification → Replace the main axle.
2. Measure:
● Drive axle runout
(with a centering device and dial gauge)
Out of specification → Replace the drive axle.
3. Measure:
● Secondary shaft runout
(with a centering device and dial gauge)
Out of specification → Replace the second-
ary shaft.
4. Check:
● Transmission gear movement
Rough movement → Replace the defective
part(s).
5. Check:
● Circlips
Bends/damage/looseness → Replace.
Main axle runout
0.08 mm (0.0031 in)
Drive axle runout
0.08 mm (0.0031 in)
Maximum secondary shaft runout
0.08 mm (0.0031 in)
