CYLINDER HEAD
5-14
EAS24100
CYLINDER HEAD

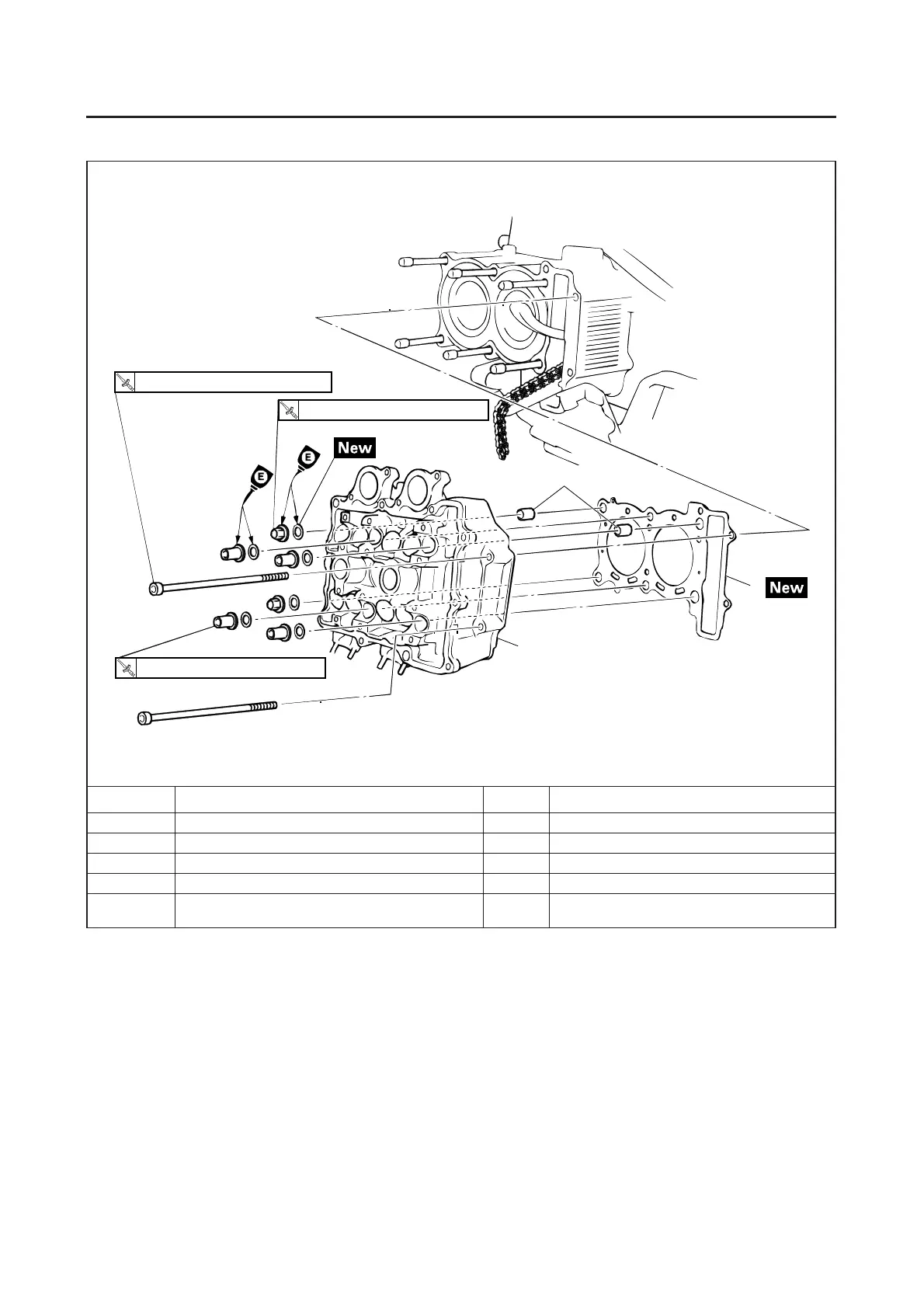

Removing the cylinder head
Order Job/Parts to remove Q’ty Remarks
Intake and exhaust camshafts Refer to “CAMSHAFTS” on page 5-6.
1 Cylinder head 1
2 Cylinder head gasket 1
3 Dowel pin 2
For installation, reverse the removal proce-
dure.
10 Nm (1.0 m • kg, 7.2 ft • Ib)
46 Nm (4.6 m • kg, 33 ft • Ib)
35 Nm (3.5 m • kg, 25 ft • Ib)
1
2
3
