HANDLEBAR
4-53
EAS22840
HANDLEBAR

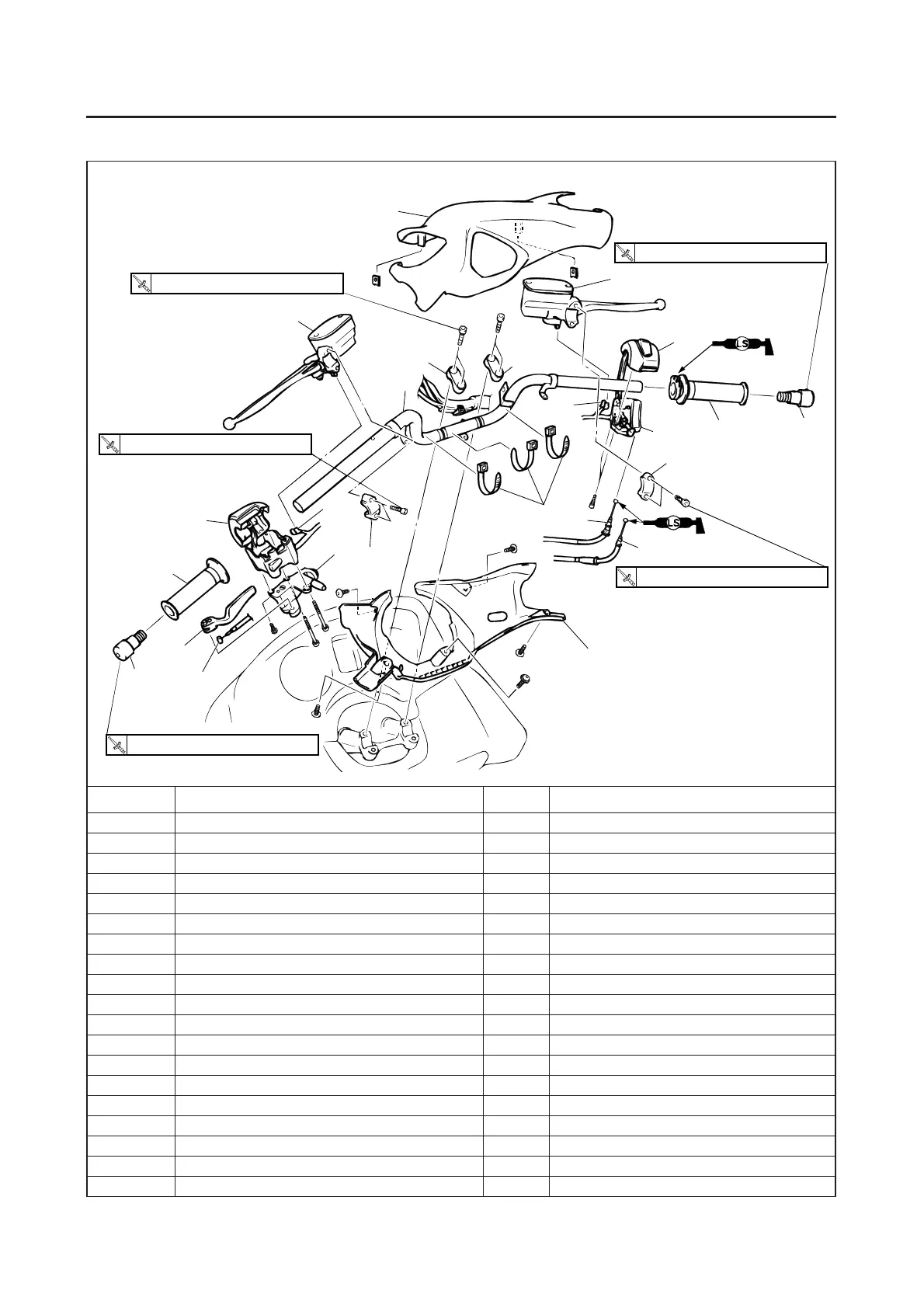

Removing the handlebar
Order Job/Parts to remove Q’ty Remarks
1 Upper handle cover 1
2 Band 3
3 Grip end 2
4 Front brake light switch connector 2 Disconnect.
5 Right handlebar switch 1
6 Throttle cable 2 Disconnect.
7 Throttle grip 1
8 Front brake master cylinder holder 1
9 Front brake master cylinder 1
10 Rear brake light switch connector 2 Disconnect.
11 Parking brake lever/Holder 1/1
12 Rear brake lock lever cable 1 Disconnect.
13 Left handlebar switch 1
14 Rear brake master cylinder holder 1
15 Rear brake master cylinder 1
16 Handlebar grip 1
17 Upper handlebar holder 2
18 Handlebar 2
19 Lower handlebar cover 1
3
11
12
16
13
10
11
14
15
18
17
1
19
6
6
2
8
5
7
3
4
17
9
5
10 Nm (1.0 m • kg, 7.2 ft • Ib)
26 Nm (2.6 m • kg, 19 ft • Ib)
23 Nm (2.3 m • kg, 17 ft • Ib)
10 Nm (1.0 m • kg, 7.2 ft • Ib)
26 Nm (2.6 m • kg, 19 ft • Ib)
