ABS (ANTI-LOCK BRAKE SYSTEM) (XP500A)
8-80
● ABS warning light flashes every 0.5 second for more than 6 seconds. → [C-4, C-5]

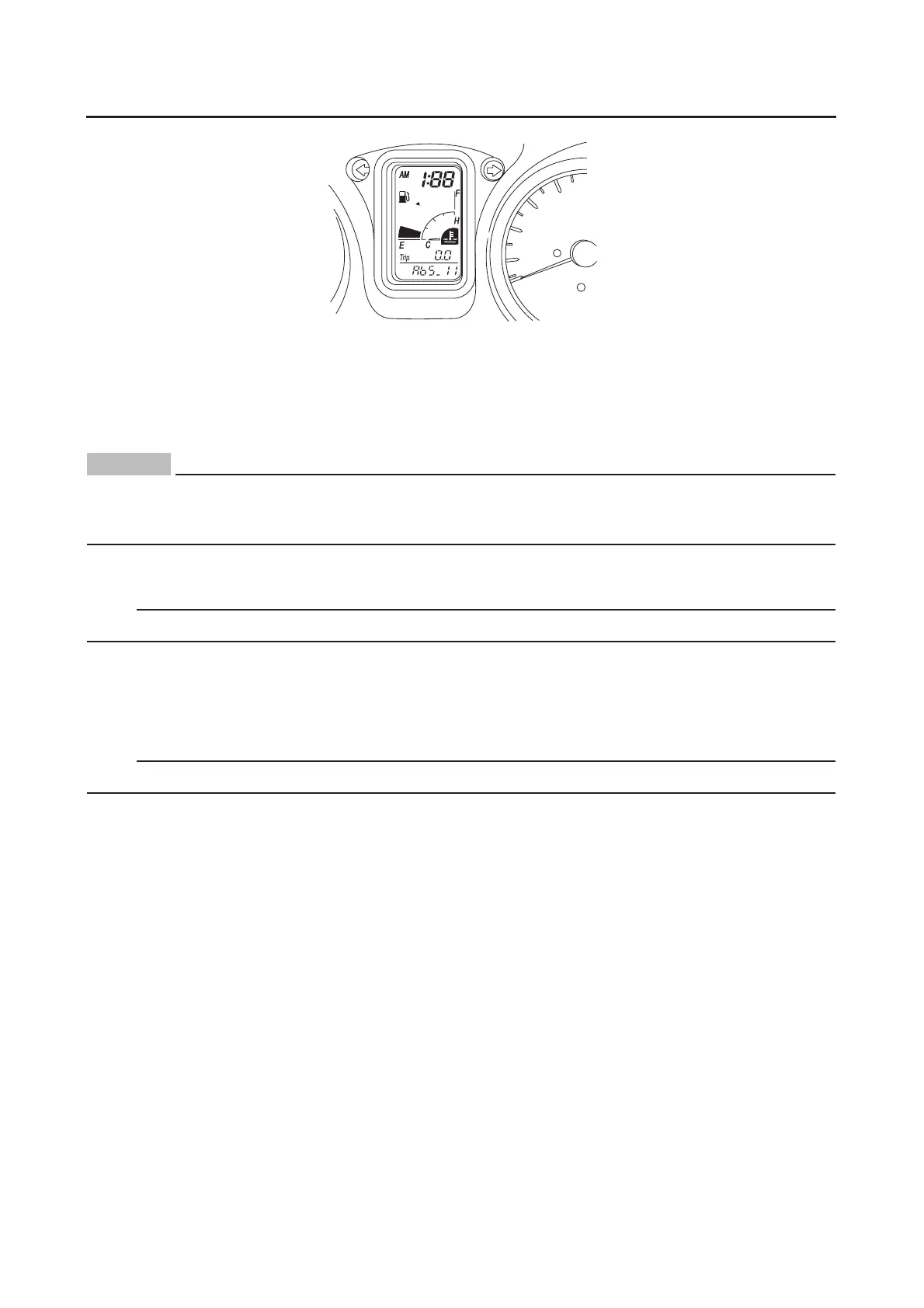

If the ABS warning light flashes every 0.5 second, the malfunction code of a past malfunction has not
been stored in the memory of the ECU (ABS). If a malfunction code is displayed on the multifunction
display, the ABS warning light flashes. Make sure that the customer understands the possible condi-
tions when the ABS warning light comes on.
CAUTION:
ECA15B1033
● When checking for ABS malfunctions, the odometer and bottom tripmeter are not displayed.
● When checking for fuel injection system malfunctions or adjusting the exhaust gas volume,
the ABS malfunction codes are not displayed.
EAS27870
[B-5] MALFUNCTION CHECK BY THE ABS SELF DIAGNOSIS (PRESENT MALFUNCTION)
NOTE:
Before proceeding to read the part of “Arrangement and the function of test coupler”.
Remove the side cowling (right) and check the location of test coupler. Connect the test coupler adapter
with the test coupler in order to ground the T/C terminal (sky-blue). (Figure-“A”)
Set the range of pocket tester to DC 20 V. Connect the negative (-) terminal of tester to the T/F terminal
(light green) and positive (+) terminal to the positive (+) terminal of battery. (Figure-“B”) Read the tester
indication. (Figure-“C”)
NOTE:
Read the code through this means so that the “current mulfunction” code is not indicated on the meter.
To Next Page
