CHASSIS
3-22
EAS21140
CHASSIS
EAS21240

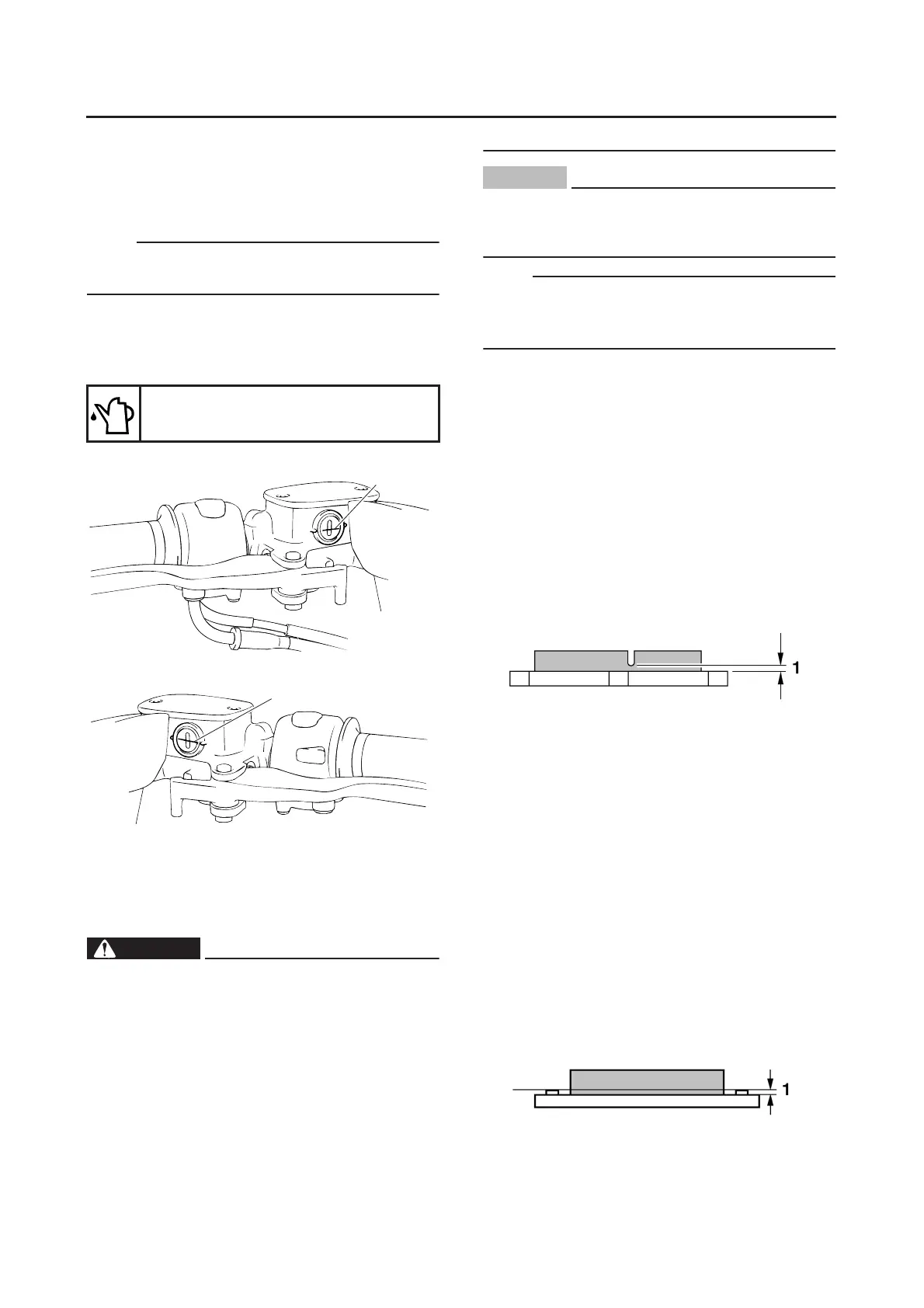

CHECKING THE BRAKE FLUID LEVEL
1. Stand the vehicle on a level surface.
NOTE:
● Place the vehicle on a suitable stand.
● Make sure the vehicle is upright.
2. Check:
● Brake fluid level
Below the minimum level mark “a” → Add the
recommended brake fluid to the proper level.
WARNING
EWA13090
● Use only the designated brake fluid. Other
brake fluids may cause the rubber seals to
deteriorate, causing leakage and poor
brake performance.
● Refill with the same type of brake fluid that
is already in the system. Mixing brake flu-
ids may result in a harmful chemical reac-
tion, leading to poor brake performance.
● When refilling, be careful that water does
not enter the brake fluid reservoir. Water
will significantly lower the boiling point of
the brake fluid and could cause vapor lock.
CAUTION:
ECA13540
Brake fluid may damage painted surfaces
and plastic parts. Therefore, always clean up
any spilt brake fluid immediately.
NOTE:
In order to ensure a correct reading of the brake
fluid level, make sure the top of the brake fluid
reservoir is horizontal.
EAS21250
CHECKING THE FRONT BRAKE PADS
The following procedure applies to all of the
brake pads.
1. Operate the brake.
2. Check:
● Front brake pad
Wear indicator groove almost disappeared
“1” → Replace the brake pads as a set.
Refer to “FRONT BRAKE” on page 4-21.
EAS21260
CHECKING THE REAR BRAKE PADS
The following procedure applies to all of the
brake pads.
1. Operate the brake.
2. Check:
● Rear brake pad
Wear indicators “1” almost touch the brake
disc → Replace the brake pads as a set.
Refer to “REAR BRAKE” on page 4-34.
Recommended fluid
DOT 4
A. Front brake
B. Rear brake
a
A
a
B
