ELECTRIC STARTER

5-38

springs as a set.

7. Check:

● Gear teeth

Damage/wear → Replace the gear.

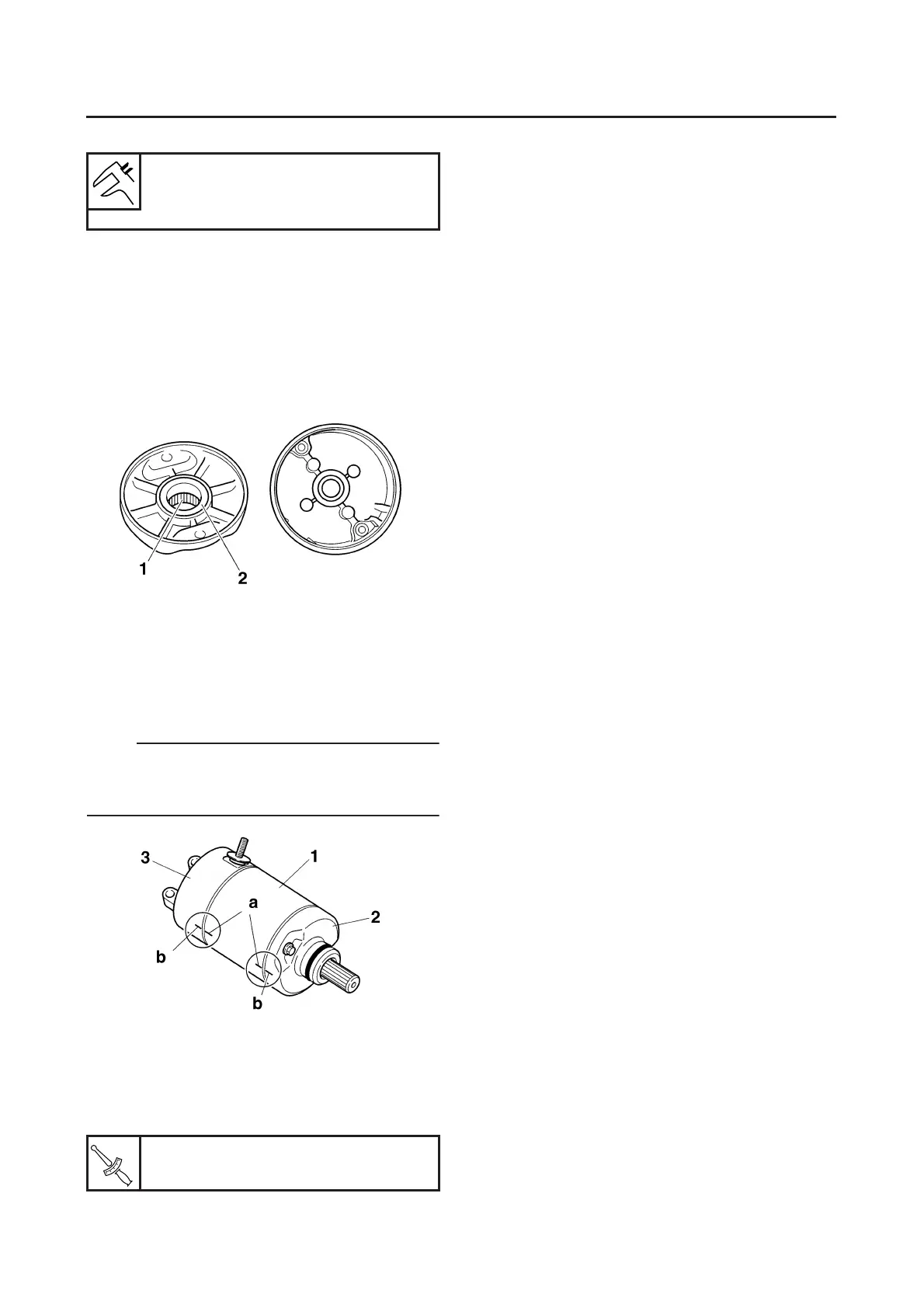

8. Check:

● Bearing“1”

● Oil seal“2”

Damage/wear → Replace the defective

part(s).

EAS24800

ASSEMBLING THE STARTER MOTOR

1. Install:

● Starter motor yoke “1”

● Starter motor front cover “2”

● Starter motor rear cover “3”

NOTE:

Align the match marks “a” on the starter motor

yoke with the match marks “b” on the front and

starter motor rear covers.

EAS24810

INSTALLING THE STARTER MOTOR

1. Install:

● Starter motor

● Starter motor bolts

2. Connect:

● Starter motor lead

Brush spring force

7.65–10.01 N (27.54–36.03 oz)

(780–1021 gf)

Starter motor bolt

10 Nm (1.0 m•kg, 7.2 ft•lb)
