ENGINE
3-14
6. Check:
● Engine oil drain bolt gasket
Damage → Replace.
7. Install:
● Engine oil drain bolt
(along with the gasket)
8. Fill:
● Crankcase
(with the specified amount of the recom-
mended engine oil)
9. Install:
● Engine oil filler cap
10.Start the engine, warm it up for several min-
utes, and then turn it off.
11.Check:
● Engine
(for engine oil leaks)
12.Check:
● Engine oil level
Refer to “CHECKING THE ENGINE OIL
LEVEL” on page 3-12.

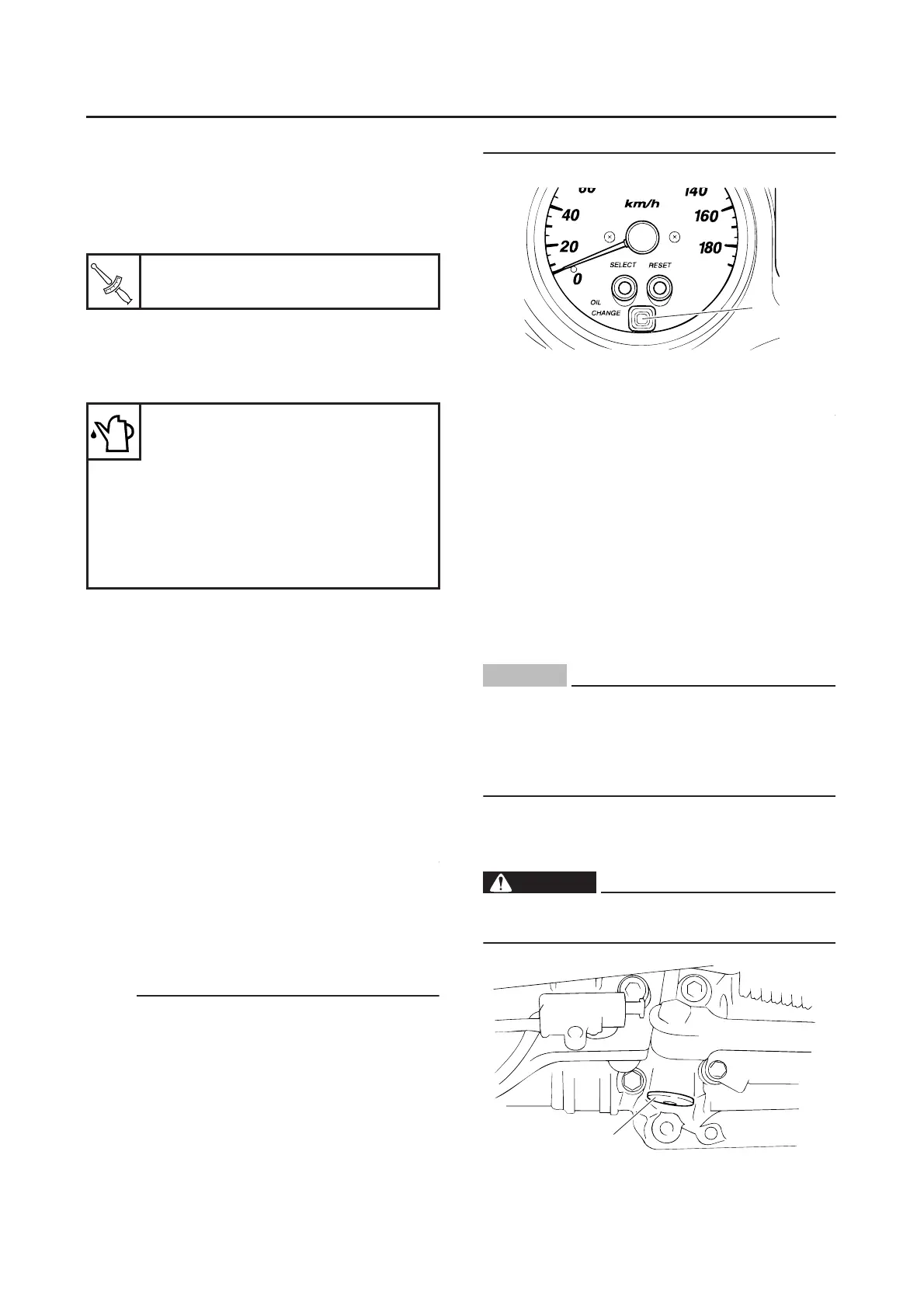

13.Reset:
● Engine oil change indicator light
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Turn the key to “ON”.
b. Hold the “OIL CHANGE” button “1” pushed
for two to eight seconds.
c. Release the “OIL CHANGE” button “1”, and
the oil change indicator light will go off.
NOTE:
If the engine oil is changed before the oil change
indicator light comes on (i.e. before the periodic
oil change interval has been reached), the indi-
cator light must be reset after the oil change for
the next periodic oil change to be indicated at
the correct time. To reset the oil change indica-
tor light before the periodic oil change interval
has been reached, follow the above procedure,
but note that the indicator light will come on for
1.4 seconds after releasing the “OIL CHANGE”
button, otherwise repeat the procedure.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS20820
MEASURING THE ENGINE OIL PRESSURE
1. Check:
● Engine oil level
Below the minimum level mark → Add the
recommended engine oil to the proper level.
2. Remove:
● Left lower side cover mole
Refer to “GENERAL CHASSIS” on page 4-1.
3. Start the engine, warm it up for several min-
utes, and then turn it off.
CAUTION:
ECA13410
When the engine is cold, the engine oil will
have a higher viscosity, causing the engine
oil pressure to increase. Therefore, be sure
to measure the engine oil pressure after
warming up the engine.
4. Remove:
● Main gallery bolt “1”
● O-ring
WARNING
EWA12980
The engine, muffler and engine oil are ex-
tremely hot.
5. Install:
● Oil pressure gauge “1”
Engine oil drain bolt
43 Nm (4.3 m•kg, 31 ft•lb)
Engine oil quantity
Total amount
3.60 L (3.81 US qt) (3.17 Imp.qt)
Without oil filter cartridge re-
placement
2.80 L (2.96 US qt) (2.46 Imp.qt)
With oil filter cartridge replace-
ment
2.90 L (3.07 US qt) (2.55 Imp.qt)
T
R
.
.
1
1
