Yamaha 2007 XP500 User Manual

ENGINE REMOVAL
5-2

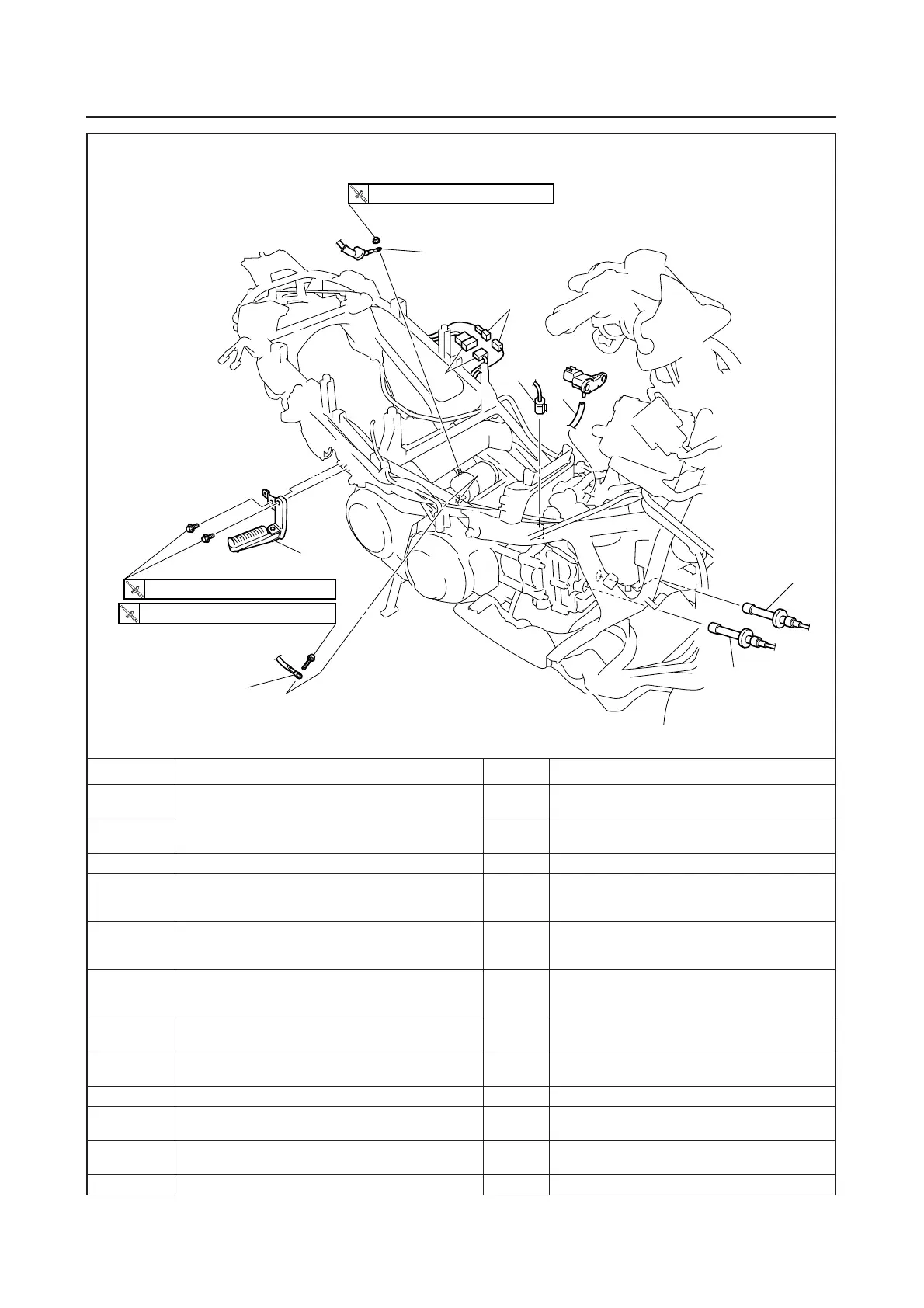

Disconnecting the leads and hoses
Order Job/Parts to remove Q’ty Remarks
Leg shield/footrest board
Refer to “GENERAL CHASSIS” on page
4-1.
Storage box
Refer to “GENERAL CHASSIS” on page
4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-13.
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-19.
Chain drive oil
Drain.
Refer to “CHECKING THE CHAIN DRIVE
OIL LEVEL” on page 3-26.
Thermostat outlet hose/coolant pipe/oil filter
cartridge
Refer to “RADIATOR” on page 6-1.
V-belt case air filter element (left)/water pump
inlet pipe/water pump outlet pipe
Refer to “WATER PUMP” on page 6-7.
Throttle body/injector Refer to “THROTTLE BODIES” on page 7-4.
Rear shock absorber
Refer to “REAR SHOCK ABSORBER
ASSEMBLY” on page 4-68.
Chain drive assembly
Refer to “CHAIN DRIVE TRANSMISSION”
on page 5-72.
1 Spark plug cap 2
6
4
5
5
2
1
1
3
7
5 Nm (0.5 m • kg, 3.6 ft • Ib)
10 Nm (1.0 m • kg, 7.2 ft • Ib)
23 Nm (2.3 m • kg, 17 ft • Ib)

Yamaha 2007 XP500 Specifications

General

Displacement	499 cc
Compression Ratio	11.0:1
Fuel System	Fuel Injection
Ignition	TCI
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Tire	120/70-15
Rear Tire	160/60-15
Seat Height	800mm
Wheelbase	1, 580 mm
Length	2, 230mm
Width	775 mm
Engine Type	Liquid-cooled, 4-stroke
Transmission	Automatic
Front Brake	Dual disc
Rear Brake	Single disc
Fuel Tank Capacity	15 liters
