THROTTLE BODIES
7-4
EAS26970
THROTTLE BODIES

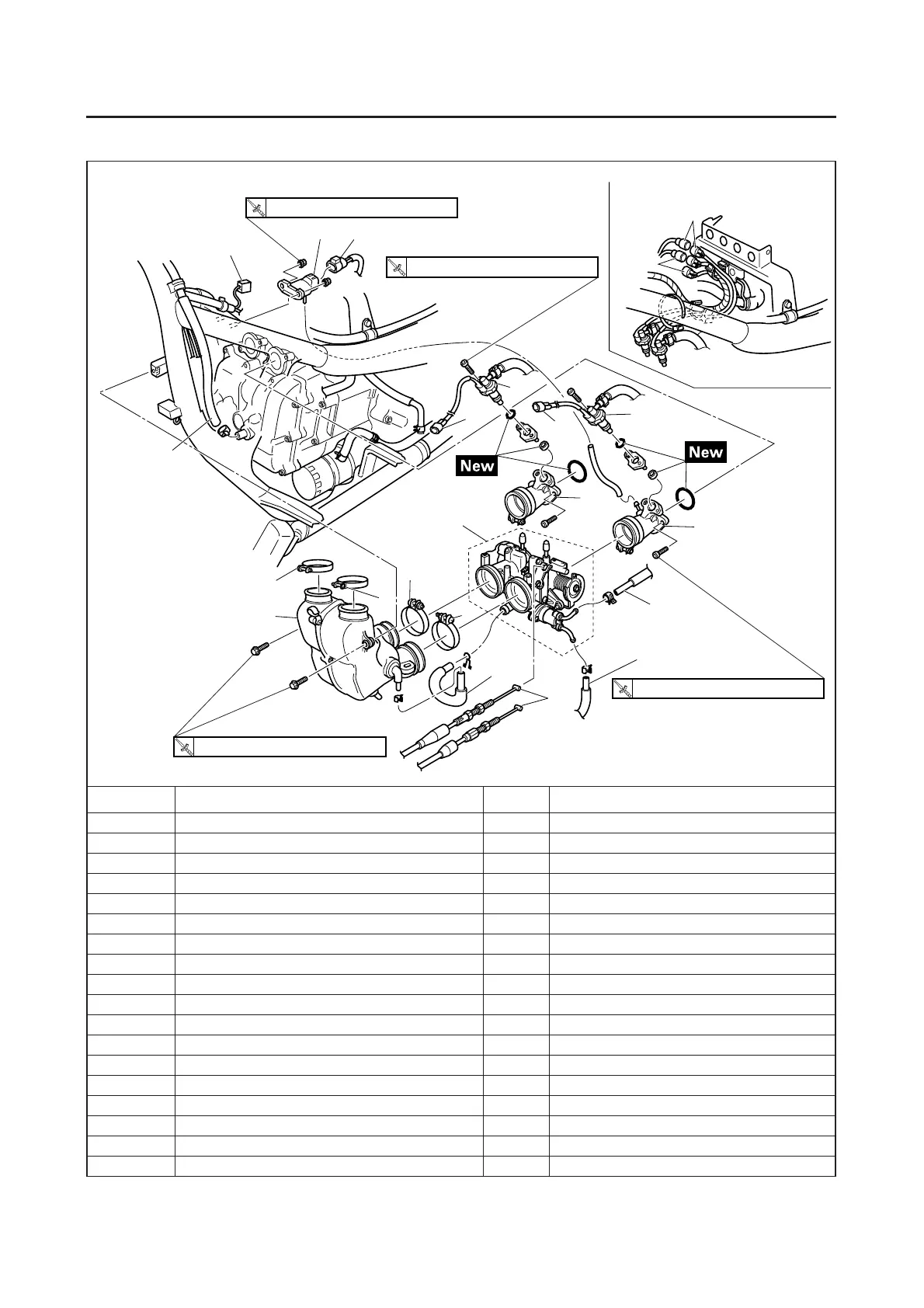

Removing the throttle bodies
Order Job/Parts to remove Q’ty Remarks
Footrest board
Leg shield
Inner fender
1 Air vent hose 1
2 Crankcase breather hose 1 Disconnect.
3 Silencer joint clamp 2 Loosen.
4 Throttle body joint clamp 2 Loosen.
5 Silencer 1
6 Throttle cable 2 Disconnect.
7 Fast idle inlet hose 1 Disconnect.
8 Fast idle outlet hose 1 Disconnect.
9 Throttle position sensor coupler 1 Disconnect.
10 Throttle body assembly 1
11 Fuel injector coupler 2 Disconnect.
12 Intake air pressure sensor coupler 1 Disconnect.
13 Intake air pressure sensor 1
14 Fuel injector (with fuel hose) 2
15 Intake manifold 2
2
3
5
3
4
4
1
6
8
7
15
15
14
11
11
14
10
9
13 12
11
11
12 Nm (1.2 m • kg, 8.7 ft • Ib)
10 Nm (1.0 m • kg, 7.2 ft • Ib)
9 Nm (0.9 m • kg, 6.5 ft • Ib)
10 Nm (1.0 m • kg, 7.2 ft • Ib)
