ENGINE
3-16
stalled in the air filter case.
● Make sure the air filter is installed with its mesh
side facing towards the rear of the vehicle.
6. Install:
● Front cowling inner panel
● Windshield
● Front cowling upper cover
Refer to “GENERAL CHASSIS” on page 4-1.
EAS20980

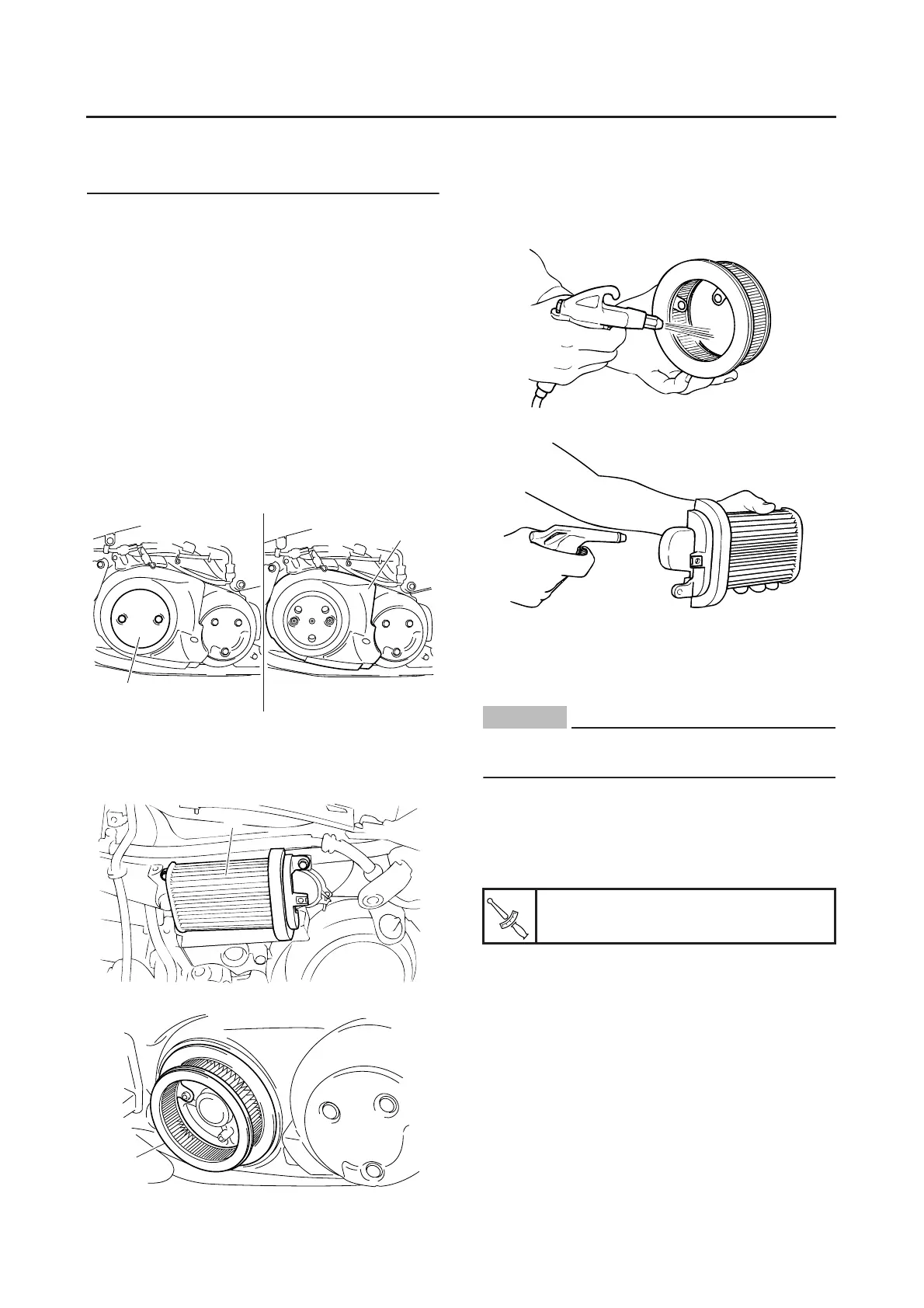

CLEANING THE V-BELT CASE AIR FILTER
ELEMENT
1. Remove:
● Left upper side cover mole
● Left footrest board
Refer to “GENERAL CHASSIS” on page 4-1.
2. Remove:
● V-belt case cover 2 “1”
● V-belt case air filter cover “2”
3. Remove:
● V-belt case air filter element (left) “1”
● V-belt case air filter element (right) “2”
4. Clean:
● V-belt case air filter element
Blow the compressed air to the outer surface
of the V-belt case air filter element.
5. Check:
● V-belt case air filter element
Damage → Replace.
CAUTION:
ECA13440
Since the V-belt case air filter element is a
dry type, do not let grease or water contact it.
6. Install:
● V-belt case air filter element
● V-belt case air filter cover seal
● V-belt case air filter cover
● V-belt case air filter cover screw
7. Install:
● Left footrest board
● Left upper side cover mole
Refer to “GENERAL CHASSIS” on page 4-1.
EAS21010
CHECKING THE THROTTLE BODY JOINTS
AND INTAKE MANIFOLDS
The following procedure applies to all of the
throttle body joints and intake manifolds.
1. Remove:
● Leg shield
Refer to “GENERAL CHASSIS” on page 4-1.
1
2
1
2
V-belt case air filter cover screw
7 Nm (0.7 m•kg, 5.1 ft•lb)
T
R
.
.
