CRANKCASE AND CRANKSHAFT
5-59
EAS25960

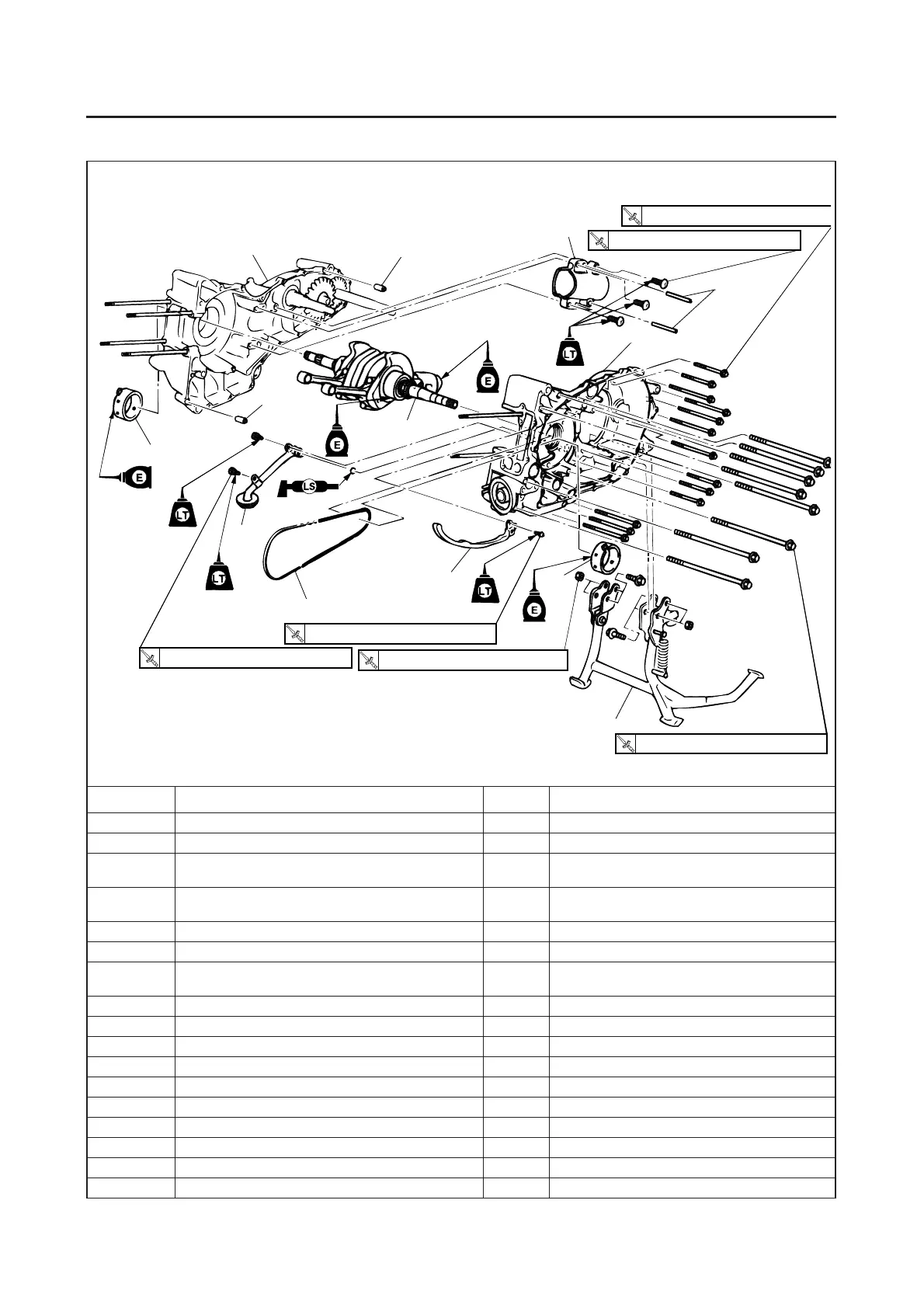

CRANKCASE AND CRANKSHAFT
Removing the crankshaft assembly
Order Job/Parts to remove Q’ty Remarks
Engine Refer to “ENGINE REMOVAL” on page 5-1.
Cylinder head Refer to “CYLINDER HEAD” on page 5-14.
Cylinder/piston
Refer to “CYLINDER AND PISTONS” on
page 5-25.
Starter clutch/A.C. magneto rotor
Refer to “GENERATOR AND STARTER
CLUTCH” on page 5-30.
Clutch Refer to “CLUTCH” on page 5-43.
Oil pump Refer to “OIL PUMP” on page 5-39.
Right crankcase cover
Refer to “V-BELT AUTOMATIC TRANSMIS-
SION” on page 5-50.
1 Centerstand assembly 1
2 Timing chain 1
3 Timing chain guide (intake side) 1
4 Left crankcase 1
5 Dowel pin 2
6 Crankshaft assembly 1
7 Balancer cylinder 1
8 Right crankcase 1
9 Oil strainer 1
10 Dowel pin 2
8
10
7
4
5
1
11
3
2
9
11
6
10
10 Nm (1.0 m • kg, 7.2 ft • Ib)
10 Nm (1.0 m • kg, 7.2 ft • Ib)
55 Nm (5.5 m • kg, 40 ft • Ib)
24 Nm (2.4 m • kg, 17 ft • Ib)
10 Nm (1.0 m • kg, 7.2 ft • Ib
)
58 Nm (5.8 m • kg, 42 ft • Ib)

Yamaha 2007 XP500 Specifications

General

Displacement	499 cc
Compression Ratio	11.0:1
Fuel System	Fuel Injection
Ignition	TCI
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Tire	120/70-15
Rear Tire	160/60-15
Seat Height	800mm
Wheelbase	1, 580 mm
Length	2, 230mm
Width	775 mm
Engine Type	Liquid-cooled, 4-stroke
Transmission	Automatic
Front Brake	Dual disc
Rear Brake	Single disc
Fuel Tank Capacity	15 liters
