CHECKING THE CONNECTIONS
1-20
EAS20250

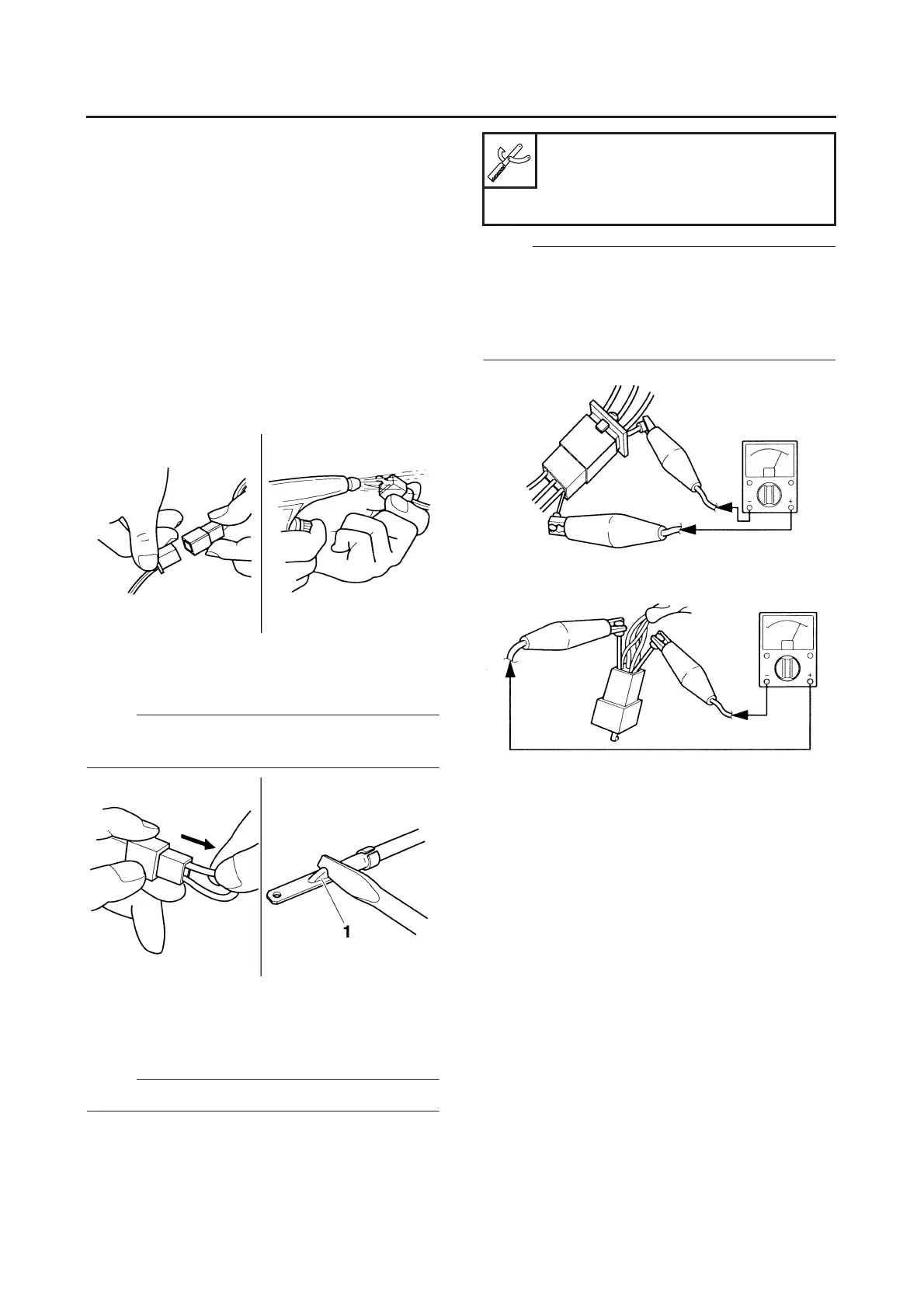

CHECKING THE CONNECTIONS
Check the leads, couplers, and connectors for
stains, rust, moisture, etc.
1. Disconnect:
● Lead
● Coupler
● Connector
2. Check:
● Lead
● Coupler
● Connector
Moisture → Dry with an air blower.
Rust/stains → Connect and disconnect sev-
eral times.
3. Check:
● All connections
Loose connection → Connect properly.
NOTE:
If the pin “1” on the terminal is flattened, bend it
up.
4. Connect:
● Lead
● Coupler
● Connector
NOTE:
Make sure all connections are tight.
5. Check:
● Continuity
(with the pocket tester)
NOTE:
● If there is no continuity, clean the terminals.
● When checking the wire harness, perform
steps (1) to (3).
● As a quick remedy, use a contact revitalizer
available at most part stores.
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C

Yamaha 2007 XP500 Specifications

General

Displacement	499 cc
Compression Ratio	11.0:1
Fuel System	Fuel Injection
Ignition	TCI
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Tire	120/70-15
Rear Tire	160/60-15
Seat Height	800mm
Wheelbase	1, 580 mm
Length	2, 230mm
Width	775 mm
Engine Type	Liquid-cooled, 4-stroke
Transmission	Automatic
Front Brake	Dual disc
Rear Brake	Single disc
Fuel Tank Capacity	15 liters
