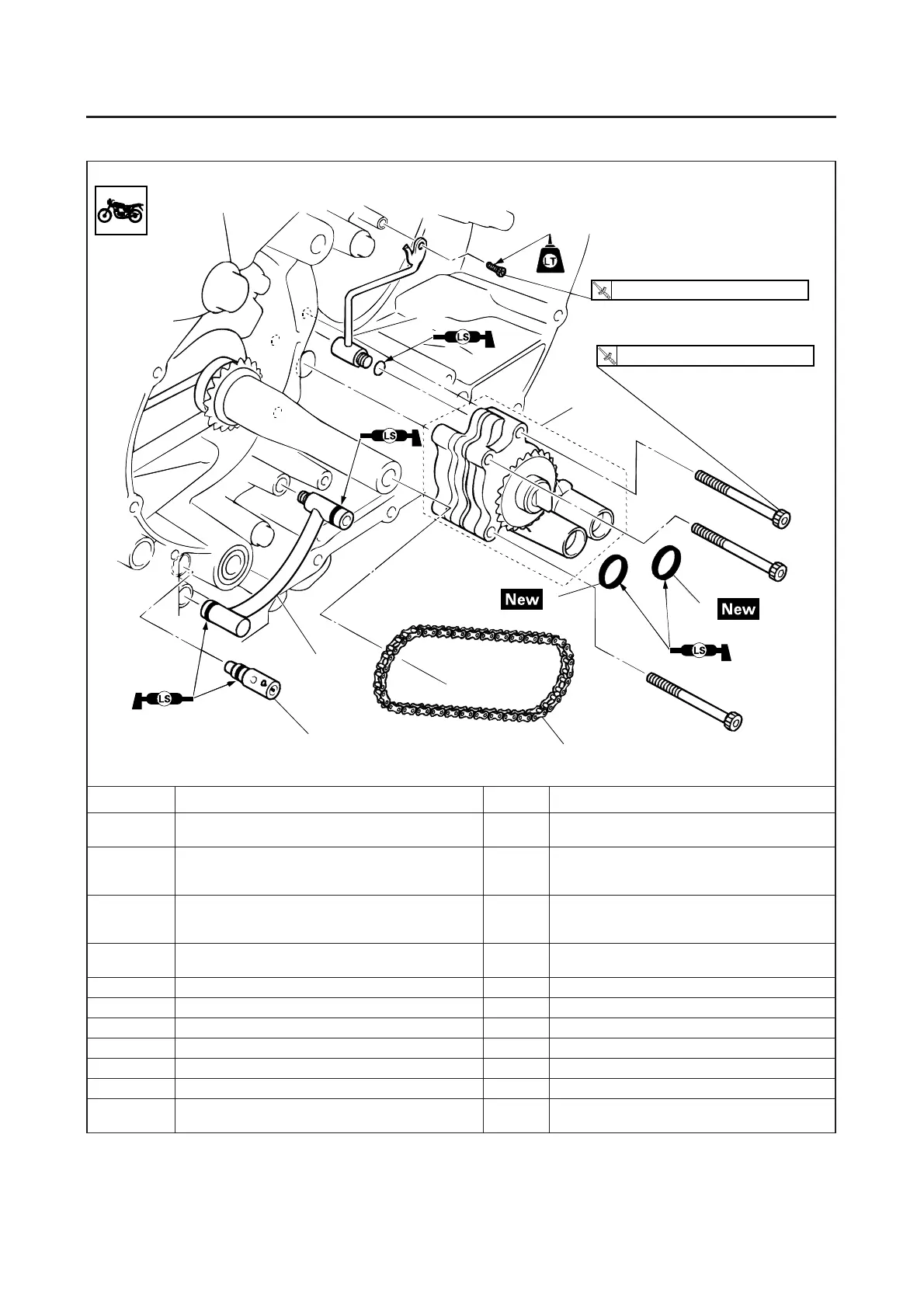

OIL PUMP
5-39
EAS24900
OIL PUMP
Removing the oil pump
Order Job/Parts to remove Qty Remarks
Left side panel/lower side cover moulding/foot-
rest board
Refer to GENERAL CHASSIS on page
4-1.
Coolant
Drain.
Refer to CHANGING THE COOLANT on
page 3-19.
Engine oil
Drain.
Refer to CHANGING THE ENGINE OIL on
page 3-13.
A.C. magneto cover/Starter clutch gear
Refer to GENERATOR AND STARTER
CLUTCH on page 5-30.
1 Oil pump assembly 1
2 Oil pump drive chain 1
3 O-ring 2
4 Oil delivery pipe 1
5 Oil delivery pipe 1
6 Relief valve assembly 1
For installation, reverse the removal proce-
dure.
6
5
4
1
2
3
3
10 Nm (1.0 m kg, 7.2 ft Ib)
10 Nm (1.0 m kg, 7.2 ft Ib)
