CHASSIS
3-26
eration.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS21480

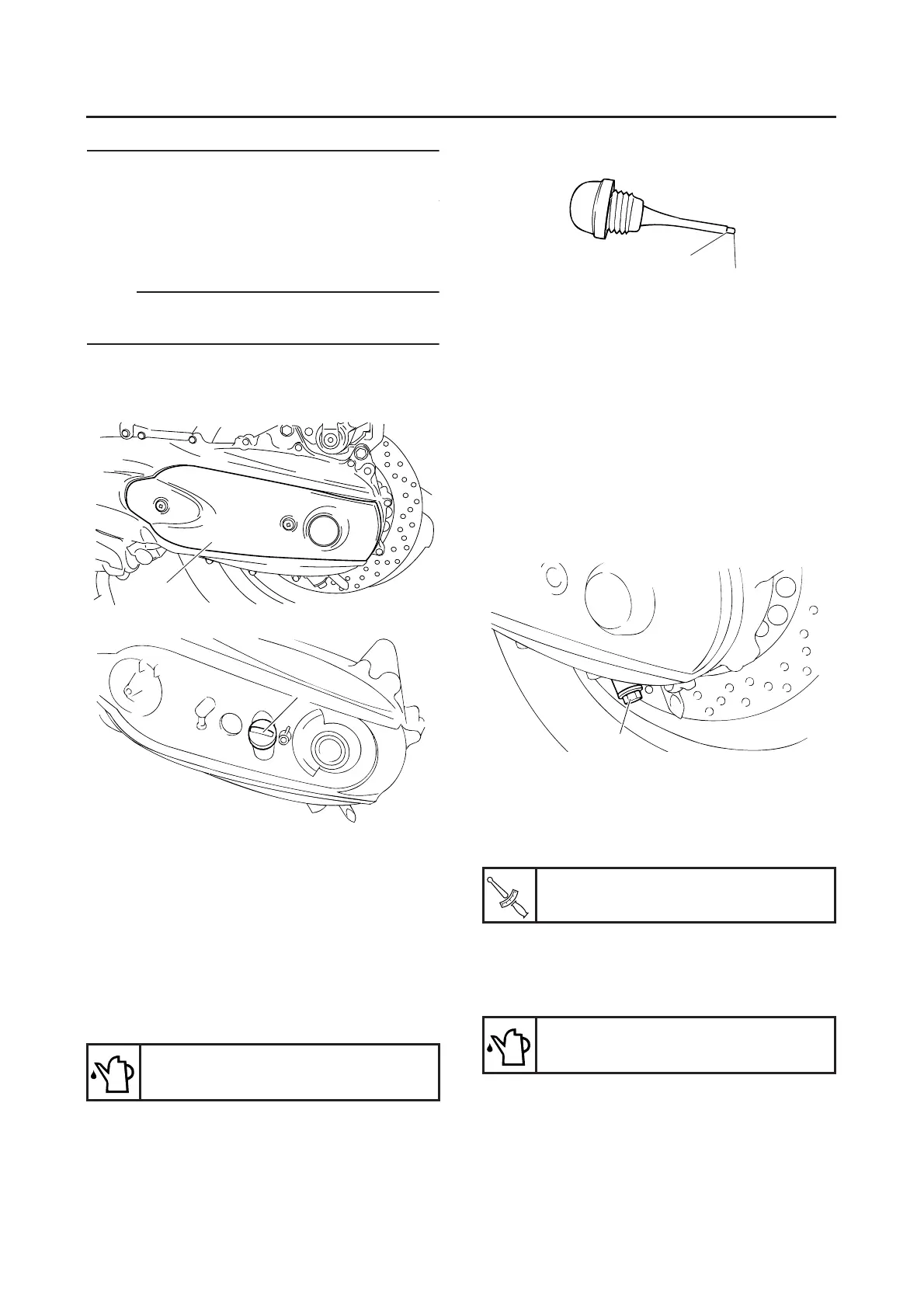

CHECKING THE CHAIN DRIVE OIL LEVEL
1. Stand the vehicle on a level surface.
NOTE:
● Place the vehicle on a suitable stand.
● Make sure that the vehicle up right.
2. Remove:
● Chain drive case cover “1”
● Chain drive oil filler cap “2”
3. Check:
● Chain drive oil level
Wipe the dipstick clean, insert it into the oil fill-
er hole (without screw it in), and then remove
it to check the oil level.
The chain drive oil level should be between
the minimum level mark “a” and maximum
level mark “b”.
Below the minimum level mark → Add the
recommended transfer oil to the proper level.
4. Install:
● Chain drive oil filler cap
● Chain drive case cover
EAS21490
CHANGING THE CHAIN DRIVE OIL
1. Place a container under the chain drive.
2. Remove:
● Chain drive oil drain bolt “1”
● Chain drive oil filler cap
Completely drain the chain drive of its oil.
3. Check:
● Drain bolt gasket
Damage → Replace.
4. Install:
● Chain drive oil drain bolt
5. Fill:
● Chain drive oil
(with the specified amount of the recom-
mended chain drive oil)
6. Check:
● Chain drive oil level
Refer to “CHECKING THE CHAIN DRIVE
OIL LEVEL” on page 3-26.
Type
SAE80 API GL-4 Hypoid gear oil
1
2
Chain drive oil drain bolt
20 Nm (2.0 m•kg, 14 ft•lb)
Quantity
0.70 L (0.74 US qt) (0.62 Imp.qt)
b
a
1
T
R
.
.
