CAMSHAFTS
5-6
EAS23760
CAMSHAFTS

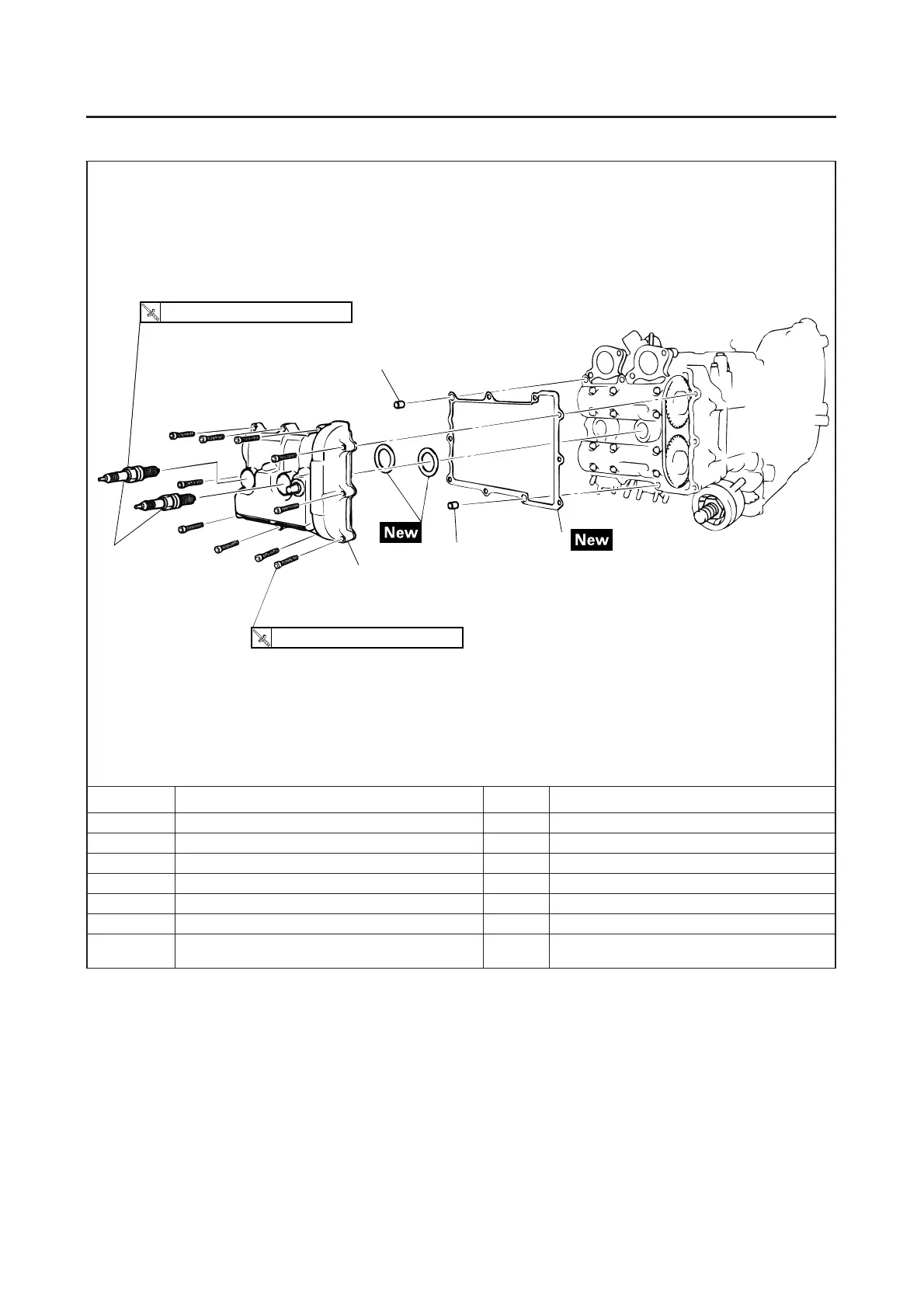

Removing the cylinder head cover
Order Job/Parts to remove Q’ty Remarks
Engine Refer to “ENGINE REMOVAL” on page 5-1.
Intake manifold Refer to “THROTTLE BODIES” on page 7-4.
1 Spark plug 2
2 Cylinder head cover 1
3 Cylinder head cover gasket 1
4 Dowel pin 2
For installation, reverse the removal proce-
dure.
13 Nm (1.3 m • kg, 9.4 ft • Ib)
10 Nm (1.0 m • kg, 7.2 ft • Ib)
3
4
2
1
4
To Next Page
