Yamaha 2007 XP500 User Manual

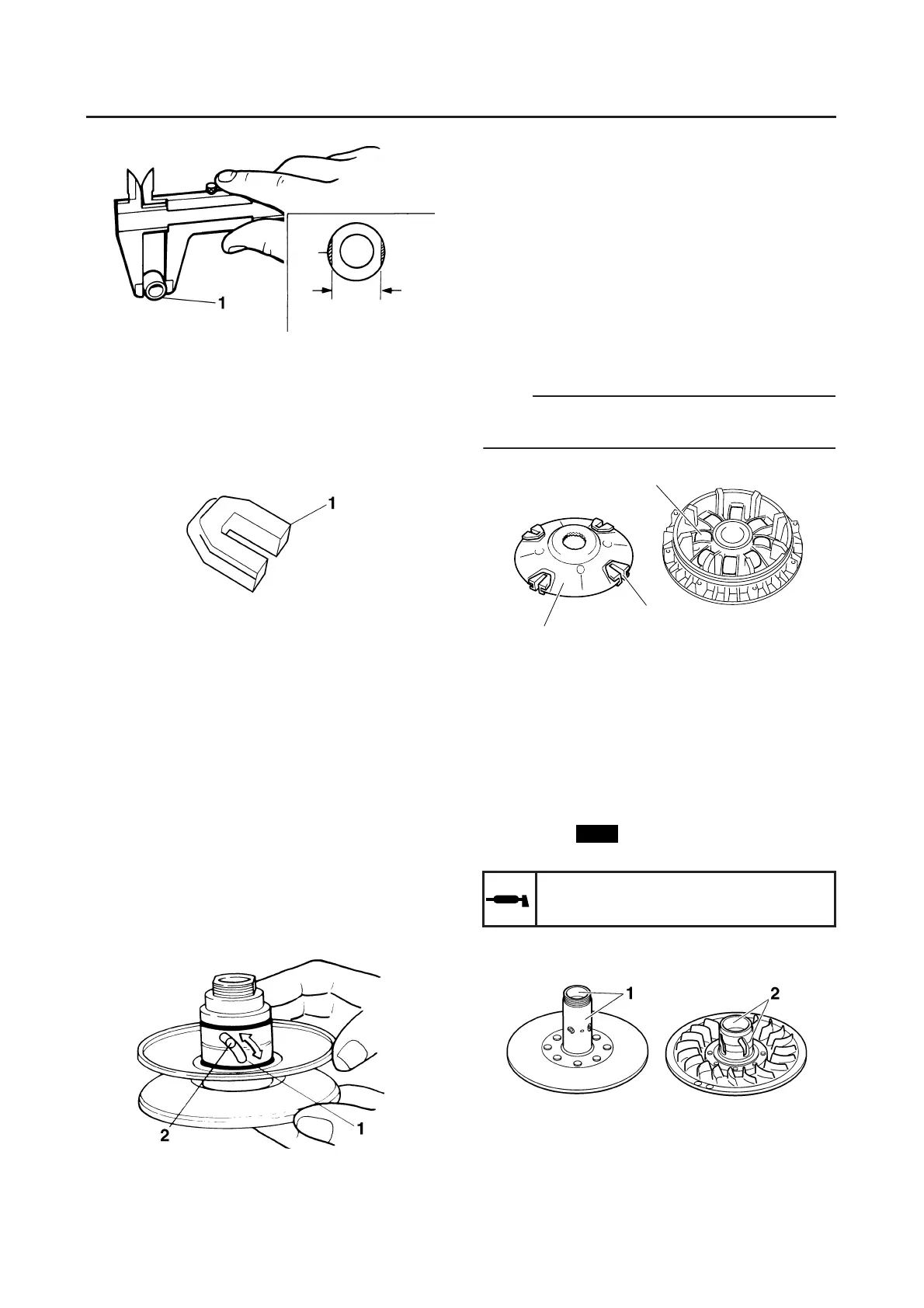

V-BELT AUTOMATIC TRANSMISSION
5-56
EAS24700
CHECKING THE SLIDER
1. Check:
● Slider “1”
Cracks/damage/wear → Replace.
EAS24710
CHECKING THE SECONDARY SHEAVE
1. Check:
● Secondary fixed sheave
● Secondary sliding sheave
Cracks/damage/wear → Replace the sec-
ondary fixed and sliding sheaves as a set.
2. Check:
● Torque cam groove “1”
Damage/wear → Replace the secondary
fixed and sliding sheaves as a set.
3. Check:
● Guide pin “2”
Damage/wear → Replace the secondary
fixed and sliding sheaves as a set.
EAS24720
ASSEMBLING THE PRIMARY SHEAVE
1. Clean:
● Primary fixed sheave
● Primary sliding sheave
● Collar
● Weights
● Sliders
● Cam
2. Install:
● Weights “1”
● Sliders “2”
● Cam “3”
NOTE:
Do not apply the grease inside of the primary
sheave.
EAS24730
ASSEMBLING THE SECONDARY SHEAVE
1. Lubricate:
● Secondary fixed sheave shaft’s outer and in-
ner surfaces “1”
● Secondary sliding sheave’s outer and inner
surfaces “2”
● Grease nipple groove
● Oil seals
(with the recommended lubricant)
2. Install:
● Secondary sliding sheave “1”
Recommended lubricant
BEL-RAY assembly lube®
1
2
3
New

Yamaha 2007 XP500 Specifications

General

Displacement	499 cc
Compression Ratio	11.0:1
Fuel System	Fuel Injection
Ignition	TCI
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Tire	120/70-15
Rear Tire	160/60-15
Seat Height	800mm
Wheelbase	1, 580 mm
Length	2, 230mm
Width	775 mm
Engine Type	Liquid-cooled, 4-stroke
Transmission	Automatic
Front Brake	Dual disc
Rear Brake	Single disc
Fuel Tank Capacity	15 liters
