ELECTRIC STARTER
5-35
EAS24780
ELECTRIC STARTER

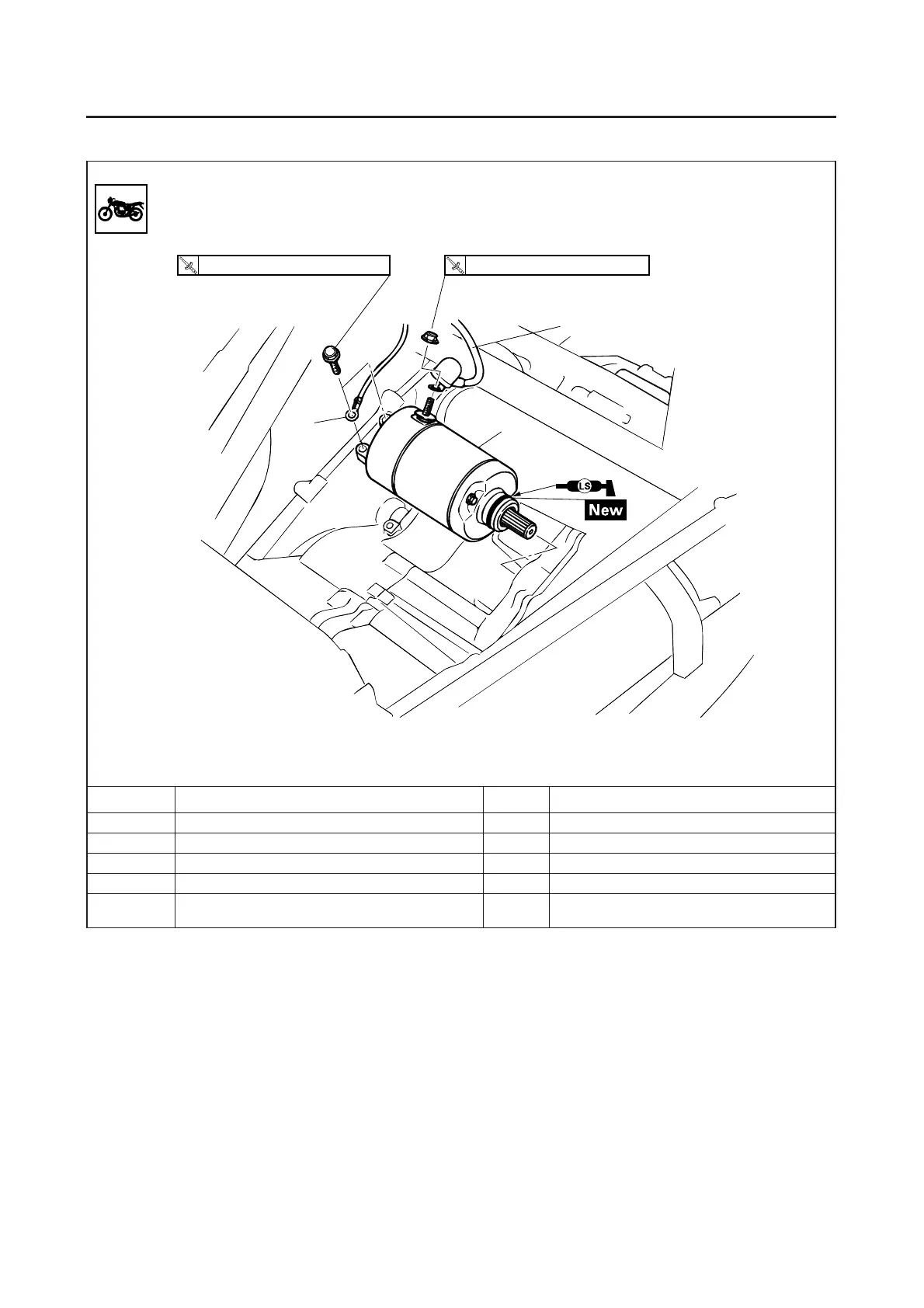

Removing the starter motor
Order Job/Parts to remove Q’ty Remarks
Fuel tank Refer to “FUEL TANK” on page 7-1.
1 Negative battery lead 1
2 Starter motor lead 1
3 Starter motor 1
For installation, reverse the removal proce-
dure.
1
2
3
10 Nm (1.0 m • kg, 7.2 ft • Ib)
5 Nm (0.5 m • kg, 3.6 ft • Ib)
