FRONT BRAKE
4-29
brake calipers.
NOTE:
Before removing the brake caliper, drain the
brake fluid from the entire brake system.

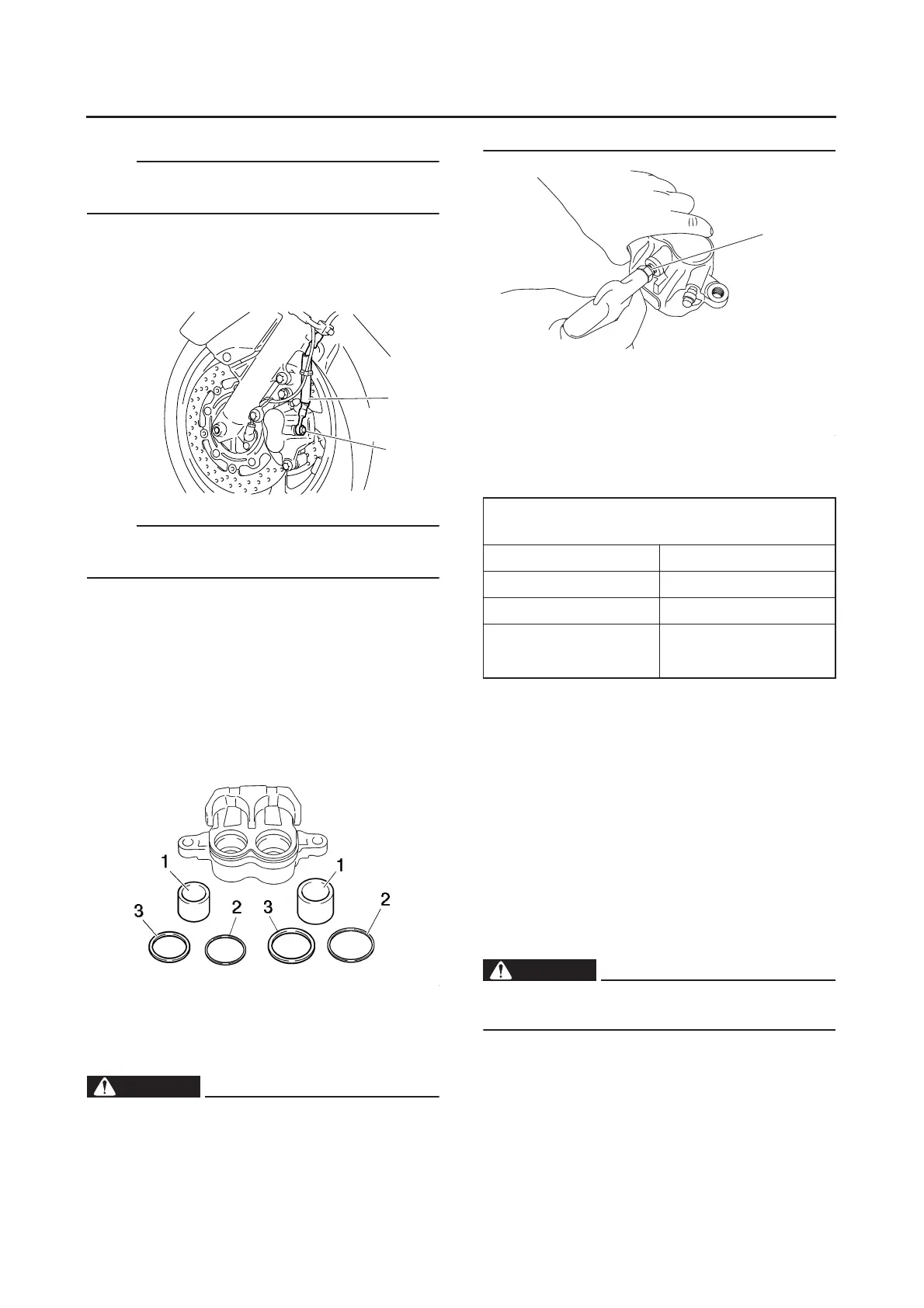

1. Remove:
● Union bolt “1”
● Copper washers “2”
● Brake hose
NOTE:
Put the end of the brake hose into a container
and pump out the brake fluid carefully.
EAS22350
DISASSEMBLING THE FRONT BRAKE
CALIPERS
The following procedure applies to both of the
brake calipers.
1. Remove:
● Brake caliper pistons “1”
● Dust seals “2”
● Brake caliper piston seals “3”
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Blow compressed air into the brake hose joint
opening “a” to force out the piston from the
brake caliper.
WARNING
EWA13580
● Cover the brake caliper piston with a rag.
Be careful not to get injured when the pis-
ton is expelled from the brake master cylin-
der.
● Never try to pry out the brake caliper pis-
ton.
b. Remove the brake caliper piston seals.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS22390
CHECKING THE FRONT BRAKE CALIPERS
1. Check:
● Brake caliper pistons “1”
Rust/scratches/wear → Replace the brake
caliper pistons.
● Brake caliper cylinders “2”
Scratches/wear → Replace the brake caliper
assembly.
● Brake caliper body “3”
Cracks/damage → Replace the brake caliper
assembly.
● Brake fluid delivery passages
(brake caliper body)
Obstruction → Blow out with compressed air.
WARNING
EWA13600
Whenever a brake caliper is disassembled,
replace the piston seals.
1
2
Recommended brake component replacement
schedule
Brake pads If necessary
Piston seals Every two years
Brake hoses Every four years
Brake fluid
Every two years and
whenever the brake is
disassembled
a
