ENGINE
3-19
3. Install:
● Inner fender
● Leg shield
● Footrest board (left and right)
Refer to “GENERAL CHASSIS” on page 4-1.
EAS21130

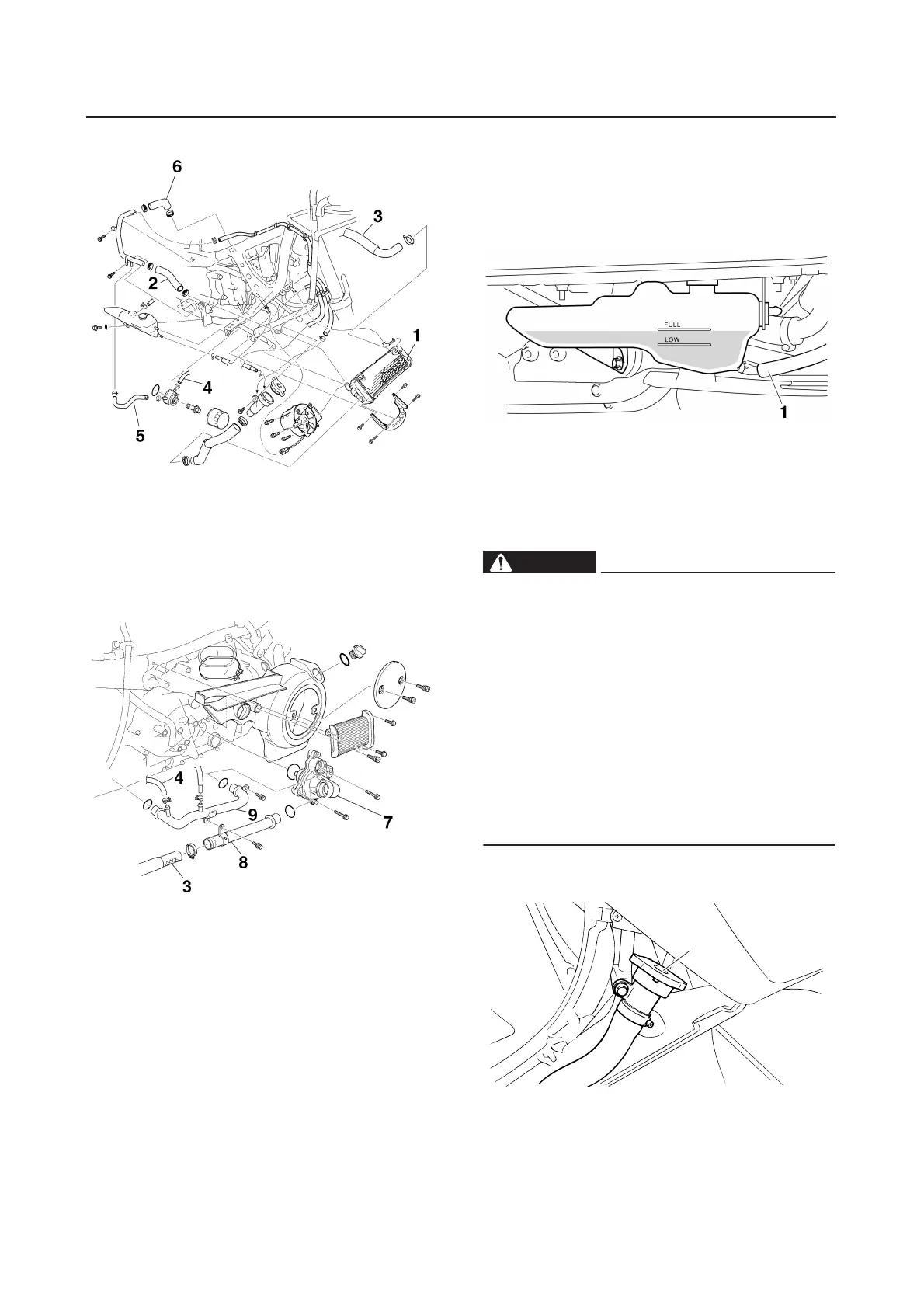

CHANGING THE COOLANT
1. Remove:
● Left footrest board mat
● Front side cover mole (left and right)
Refer to “GENERAL CHASSIS” on page 4-1.
● Coolant reservoir cap access panel
● Lower side cover mole (left and right)
● Inner fender
Refer to “GENERAL CHASSIS” on page 4-1.
2. Disconnect:
● Coolant reservoir hose “1”
3. Drain:
● Coolant
(from the coolant reservoir)
4. Remove:
● Radiator cap “1”
WARNING
EWA13030
A hot radiator is under pressure. Therefore,
do not remove the radiator cap when the en-
gine is hot. Scalding hot fluid and steam may
be blown out, which could cause serious in-
jury. When the engine has cooled, open the
radiator cap as follows:
Place a thick rag or a towel over the radiator
cap and slowly turn the radiator cap counter-
clockwise toward the detent to allow any re-
sidual pressure to escape. When the hissing
sound has stopped, press down on the radi-
ator cap and turn it counterclockwise to re-
move.
The following procedure applies to all of the
coolant drain bolts and copper washers.
5. Remove:
● Coolant drain bolt (engine) “1”
(along with the copper washer)
