V-BELT AUTOMATIC TRANSMISSION

5-50

EAS24610

V-BELT AUTOMATIC TRANSMISSION

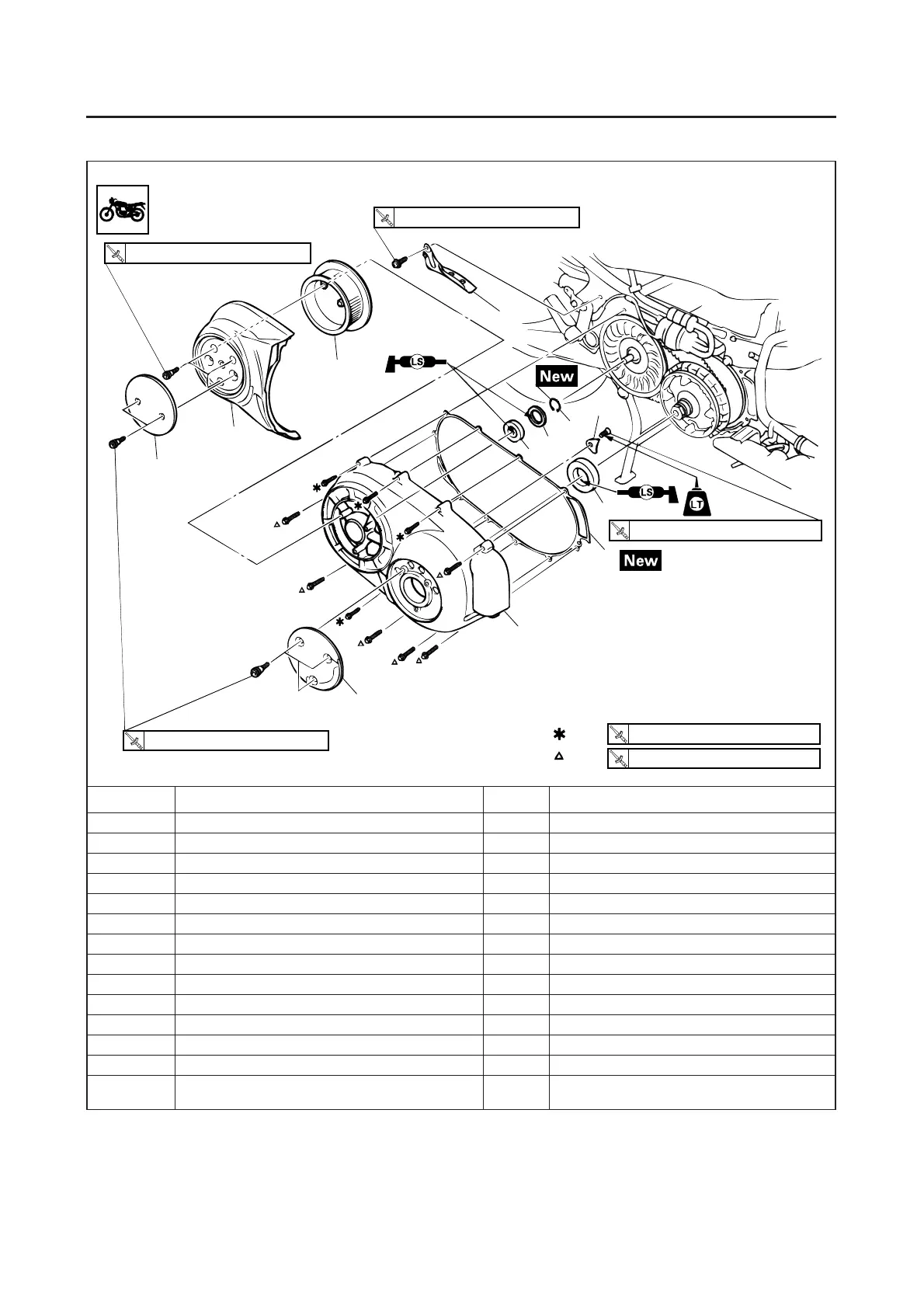

Removing the V-belt case

Order Job/Parts to remove Q’ty Remarks

Mufﬂer Refer to “ENGINE REMOVAL” on page 5-1.

1 V-belt case cover “1” 1

2 V-belt case cover “2” 1

3 V-belt case air ﬁlter cover 1

4 V-belt case air ﬁlter element 1

5 Lead holder 1

6 V-belt case 1

7 V-belt case gasket 1

8 Bearing retainer 1

9 Bearing 1

10 Circlip 1

11 Oil seal 1

12 Bearing 1

For installation, reverse the removal proce-

dure.

7 Nm (0.7 m • kg, 5.1 ft • Ib)

11 Nm (1.1 m • kg, 8.0 ft • Ib)

7 Nm (0.7 m • kg, 5.1 ft • Ib)

10 Nm (1.0 m • kg, 7.2 ft • Ib)

24 Nm (2.4 m • kg, 17 ft • Ib)

(M6)

(M8)
