ENGINE
3-18
4. Install:
● Inner fender
Refer to “GENERAL CHASSIS” on page 4-1.
● Right rear side cover
Refer to “GENERAL CHASSIS” on page 4-1.
EAS21110

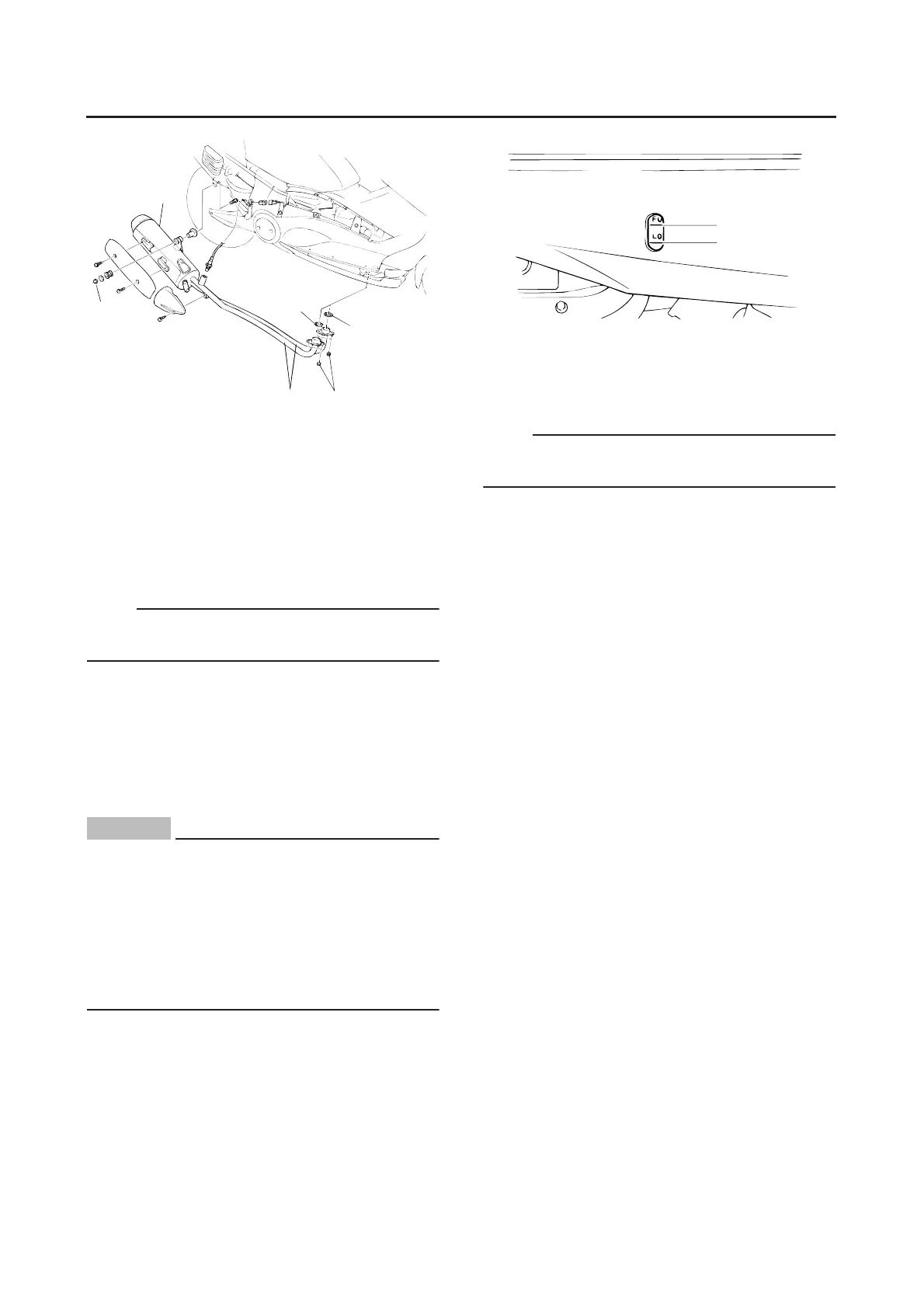

CHECKING THE COOLANT LEVEL
1. Stand the vehicle on a level surface.
NOTE:
● Place the vehicle on a suitable stand.
● Make sure the vehicle is upright.
2. Check:
● Coolant level
The coolant level should be between the
maximum level mark “a” and minimum level
mark “b”.
Below the minimum level mark → Add the
recommended coolant to the proper level.
CAUTION:
ECA13470
● Adding water instead of coolant lowers the
antifreeze content of the coolant. If water is
used instead of coolant check, and if nec-
essary, correct the antifreeze concentra-
tion of the coolant.
● Use only distilled water. However, if dis-
tilled water is not available, soft water may
be used.
3. Start the engine, warm it up for several min-
utes, and then turn it off.
4. Check:
● Coolant level
NOTE:
Before checking the coolant level, wait a few
minutes until it settles.
EAS21120
CHECKING THE COOLING SYSTEM
1. Remove:
● Footrest board (left and right)
● Leg shield
● Inner fender
Refer to “GENERAL CHASSIS” on page 4-1.
2. Check:
● Radiator “1”
● Radiator inlet hose “2”
● Radiator outlet hose “3”
● Oil cooler inlet hose “4”
● Oil cooler outlet hose “5”
● Water jacket outlet joint “6”
● Water jacket inlet joint “7”
● Water pump inlet pipe “8”
● Water pump outlet pipe “9”
Cracks/damage → Replace.
Refer to “RADIATOR” on page 6-1, “THER-
MOSTAT” on page 6-5 and “WATER PUMP”
on page 6-7.
5
2
3
1
4
3
a
b
