ENGINE REMOVAL
5-5
EAS23720

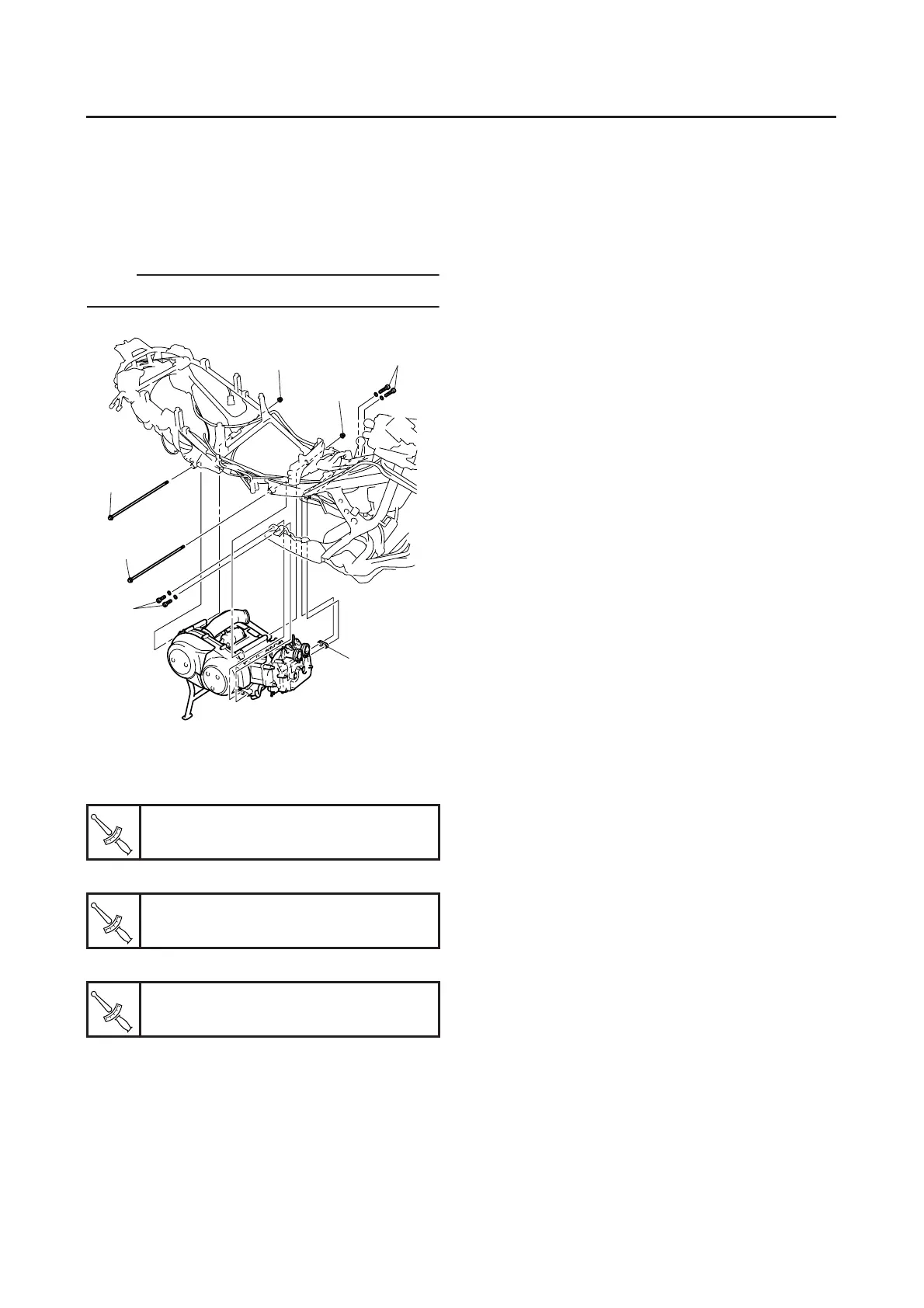

INSTALLING THE ENGINE
1. Install:
● Rear mounting bolt/nut “1”
● Front upper mounting bolt/nut “2”
● Washers.spacer “3”
● Front lower mounting bolts “4”
NOTE:
Do not fully tighten the bolts.
2. Tighten:
● Rear mounting nut “1”
● Front upper mounting nut “2”
● Front lower mounting bolts
Rear mounting nut
87 Nm (8.7 m•kg, 63 ft•lb)
Front upper mounting nut
87 Nm (8.7 m•kg, 63 ft•lb)
Front lower mounting bolts
48 Nm (4.8 m•kg, 35 ft•lb)
1
2
4
1
2
4
3
T
R
.
.
T
R
.
.
T
R
.
.
