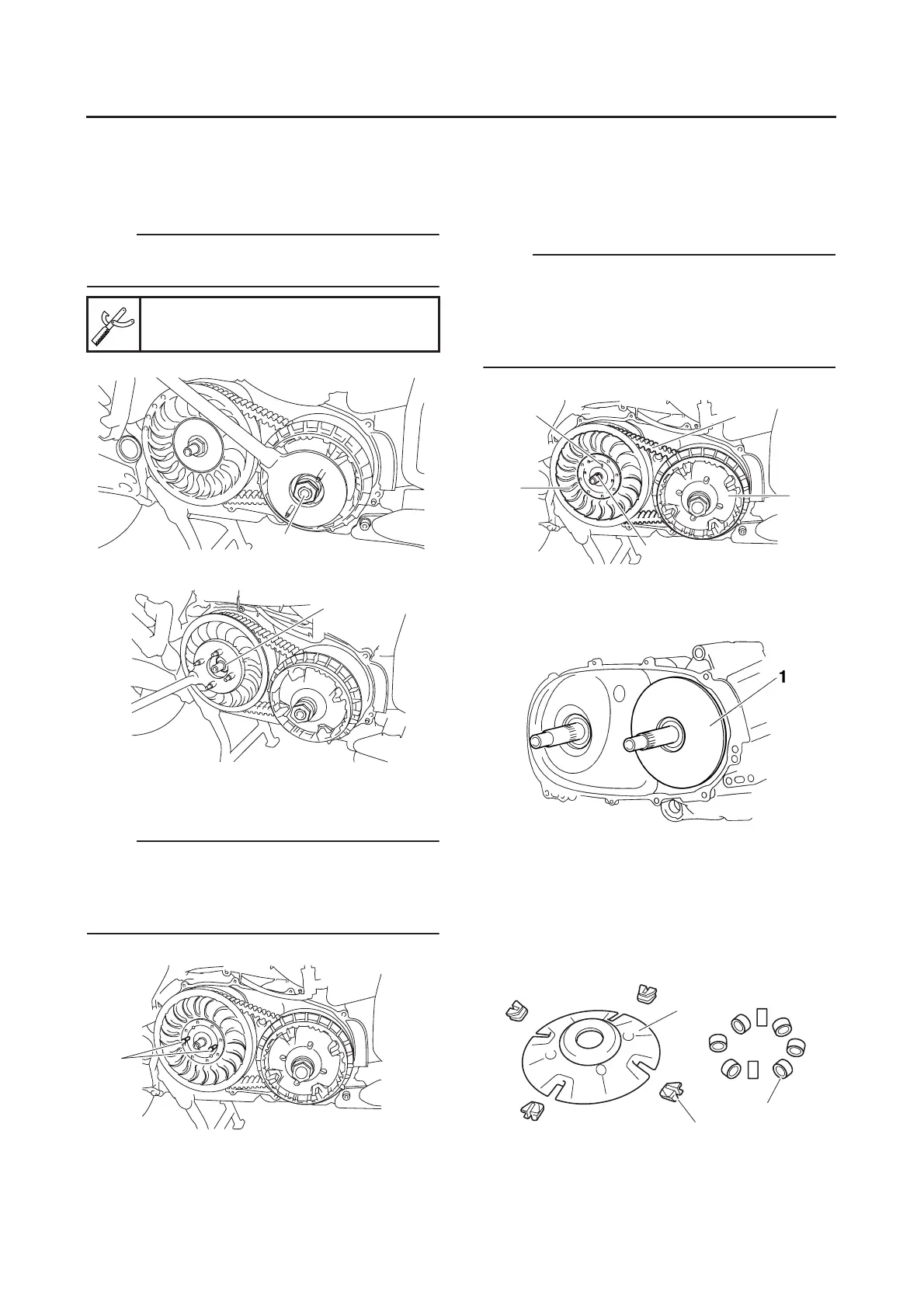

V-BELT AUTOMATIC TRANSMISSION

5-54

EAS24620

REMOVING THE PRIMARY SHEAVE

1. Remove:

● Primary sheave nut “1”

● Secondary sheave nut “2”

NOTE:

While holding the primary and secondary

sheave with the sheave holder, loosen the nut.

2. Install:

● Bolts “1”

NOTE:

Insert M6 bolts (more than 45 mm (1.77 in)) into

the holes of the secondary sheave assembly,

and then tighten the bolts to open the secondary

sheave assembly.

EAS24630

REMOVING THE SECONDARY SHEAVE

1. Remove:

● Secondary sheave assembly “1”

● Primary sheave assembly “2”

● V-belt “3”

NOTE:

● Before removal, apply “a” and “b” alignment

marks.

● Align these marks during reassembly.

● Remove the primary sliding sheave, second-

ary sheave assembly and V-belt together.

2. Remove:

● Primary fixed sheave “1”

EAS15B4002

DISASSEMBLING THE PRIMARY SHEAVE

1. Remove:

● Cam “1”

● Slider “2”

● Weight “3”

Sheave holder

90890-01481
